SETTING PEDESTRIAN POSITION

Note Before setting the pedestrian access position the gate
must be in the closed position. As with the Setting Travel Limit
procedure, a transmitter can be used to complete the
pedestrian position setting procedure.
STEP 1. NAVIGATING TO "SET PEDESTRIAN MENU"
To navigate to the Menu 10.2 from the main screen simply press
PREV to display MENU 10, followed by SET to display MENU
10.1,followed by NEXT to display MENU 10.2. Press SET again
to start the setting procedure

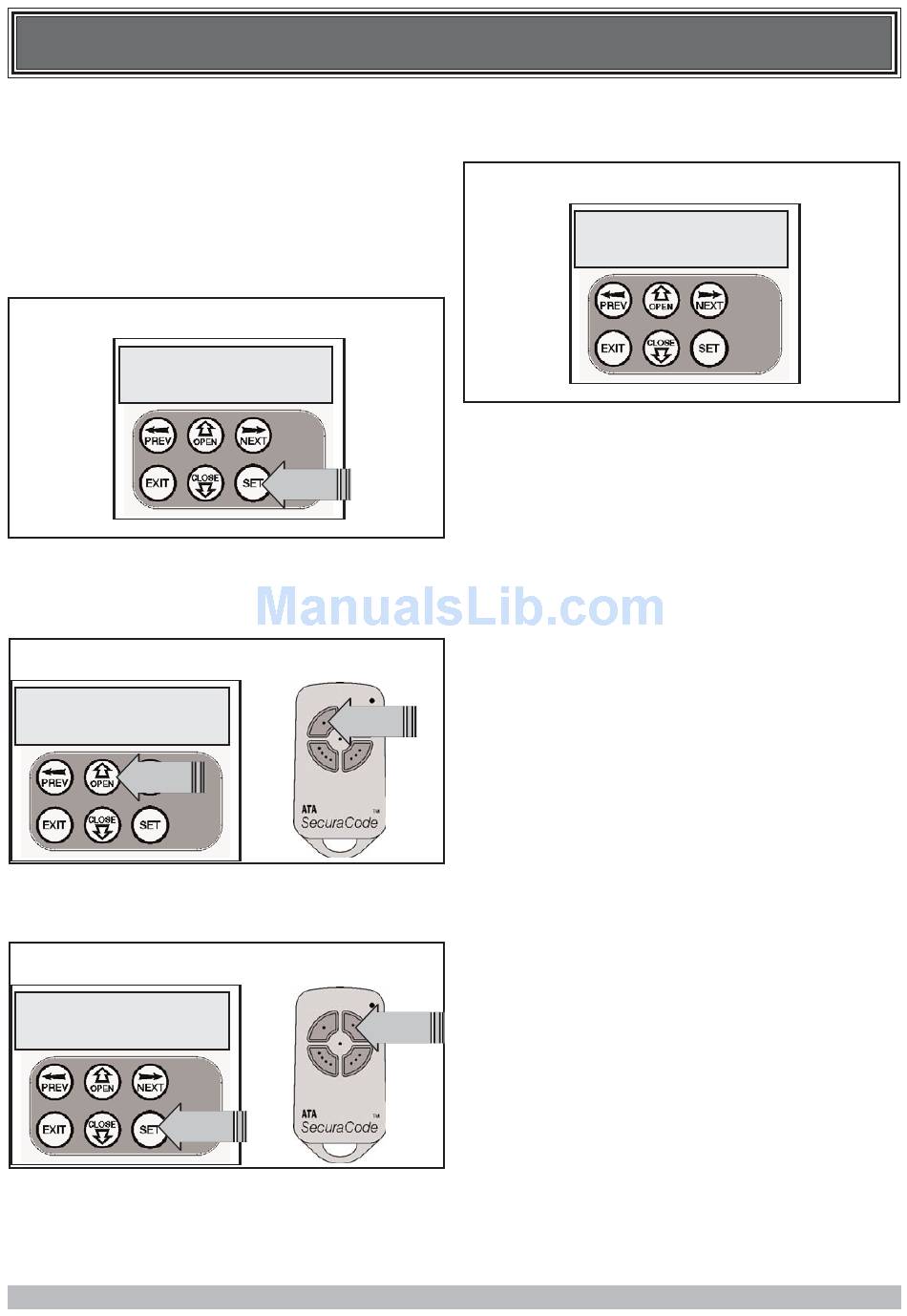

Selecting Pedestrian Position Setup
MENU 10.2
Set Pedestrian
STEP 2. SETTING PEDESTRIAN POSITION
The controller will prompt for the gate to be driven to the desired
pedestrian position. Use OPEN to drive the gate to the desired
pedestrian access position.
Drive To The Desired Pedestrian Access Position
to Pedestrian
/ / \ \ \ \ / /
Position,
SET
PRESS
STEP 3. RECORD POSITION
Press SET to record the position.
Record the Pedestrian Access Position
to Pedestrian
/ / \ \ \ \ / /
Position,
SET
PRESS
PRESS
OR
OR
PRESS
STEP 4. PEDESTRIAN POSITION SET
The controller will now return to the MAIN SCREEN with the
gate status shown as being in pedestrian access mode.
PRESS
15
Pedestrian Position Setup Complete
Ped'n Access
