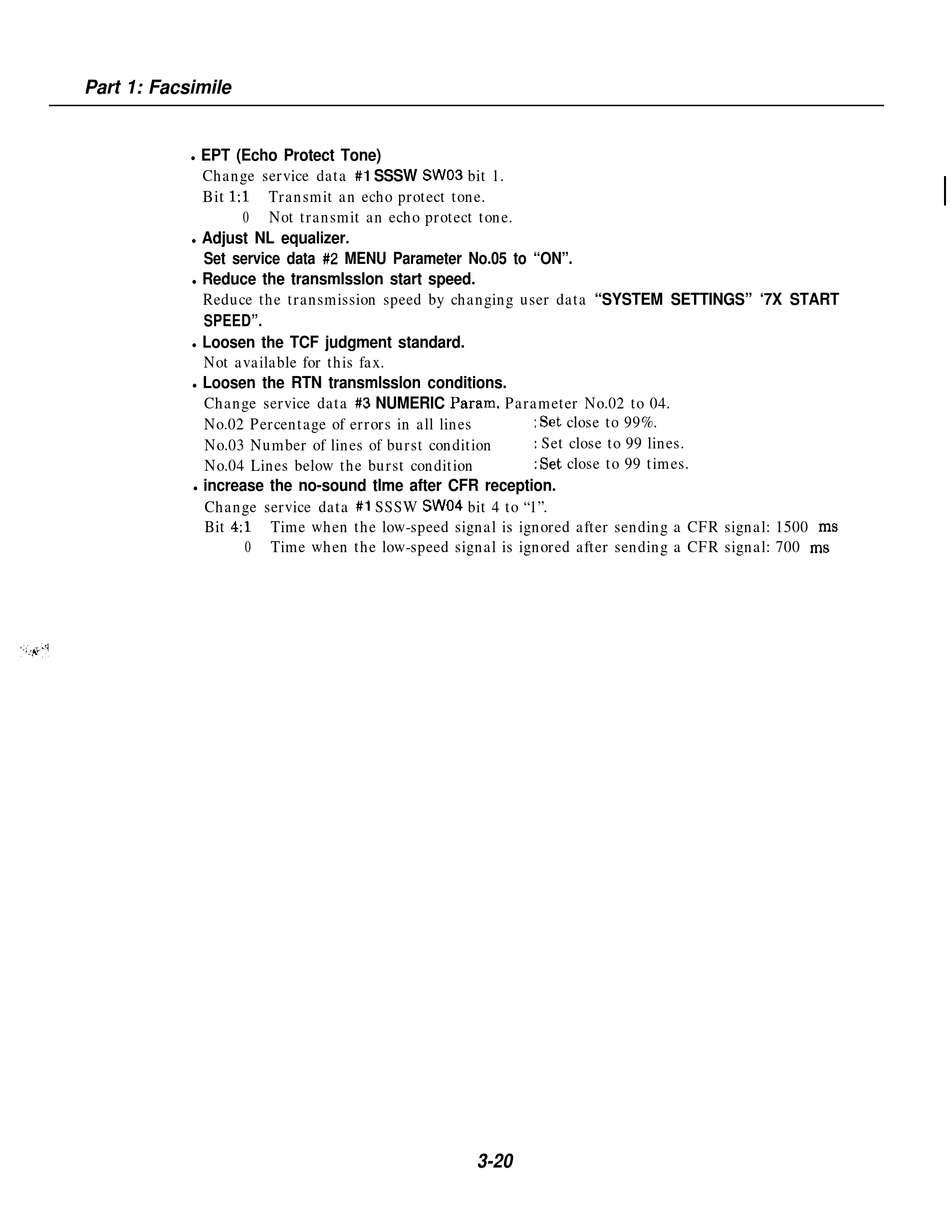

Part 1: Facsimile
EPT (Echo Protect Tone)
l
Change service data #I SSSW SW03 bit 1.
Bit 1:l
0
Adjust NL equalizer.
l
Set service data #2 MENU Parameter No.05 to "ON".
Reduce the transmlsslon start speed.
l
Reduce the transmission speed by changing user data "SYSTEM SETTINGS" '7X START
SPEED".
Loosen the TCF judgment standard.
l
Not available for this fax.
Loosen the RTN transmlsslon conditions.
l
Change service data #3 NUMERIC Param. Parameter No.02 to 04.
No.02 Percentage of errors in all lines
No.03 Number of lines of burst condition
No.04 Lines below the burst condition
increase the no-sound tlme after CFR reception.
l
Change service data #I SSSW SW04 bit 4 to "1".
Bit 4:l
0
Transmit an echo protect tone.
Not transmit an echo protect tone.
Time when the low-speed signal is ignored after sending a CFR signal: 1500 ms
Time when the low-speed signal is ignored after sending a CFR signal: 700 ms
3-20
