Part 1: Facsimile
c-2) Adjustment
(1) Set the paper thickness lever to the right and place the gap gauge at position B.
(3) Set the paper thickness lever to the left.
(4) Loosen screw A until the carriage guide frame moves forward under the carriage's
own weight with screw B as a pivot.
(5) Lightly push the screw A end of the carriage guide frame once or twice and check
that the carriage guide frame moves around screw B as shown by the arrows.
If it does not return to the original position, screw B is too tight. And if it moves on
the screw B end as well, screw B is too loose. Refasten the carriage guide frame
lightly again and repeat the procedure from C- 1)
(7) Put the paper thickness lever to the right and move the carriage to position A. Then
place the gap gauge at position C.
(9) Put the paper thickness lever to the left.
Position B

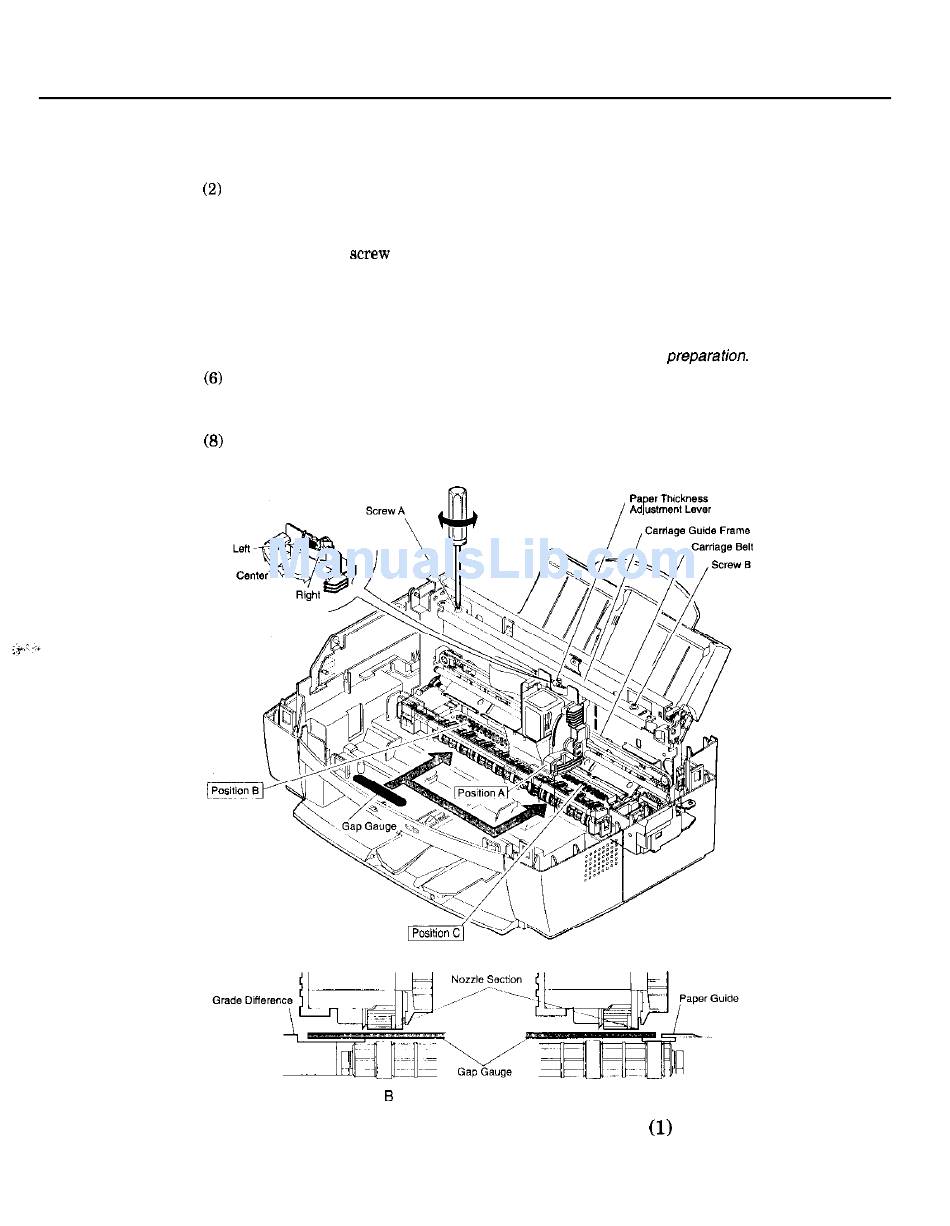

Figure 3-10 Head Gap Adjustment (1)
3-12
Adjustment
Position C
