b) Required adjustment tools
Gap gauge (1.2 mm)
Phillips screwdriver
BJ cartridge (BC-20)
c) Adjustment procedure
c-l) Adjustment preparation
Disassemble the main unit as shown in Fig. 3-10.
(2) Install a black BJ cartridge (for servicing) into the carriage.
A
Before making the adjustment, make sure the gap gauge is not deformed ,d
no foreign particles are adhering to it and the platen. __-

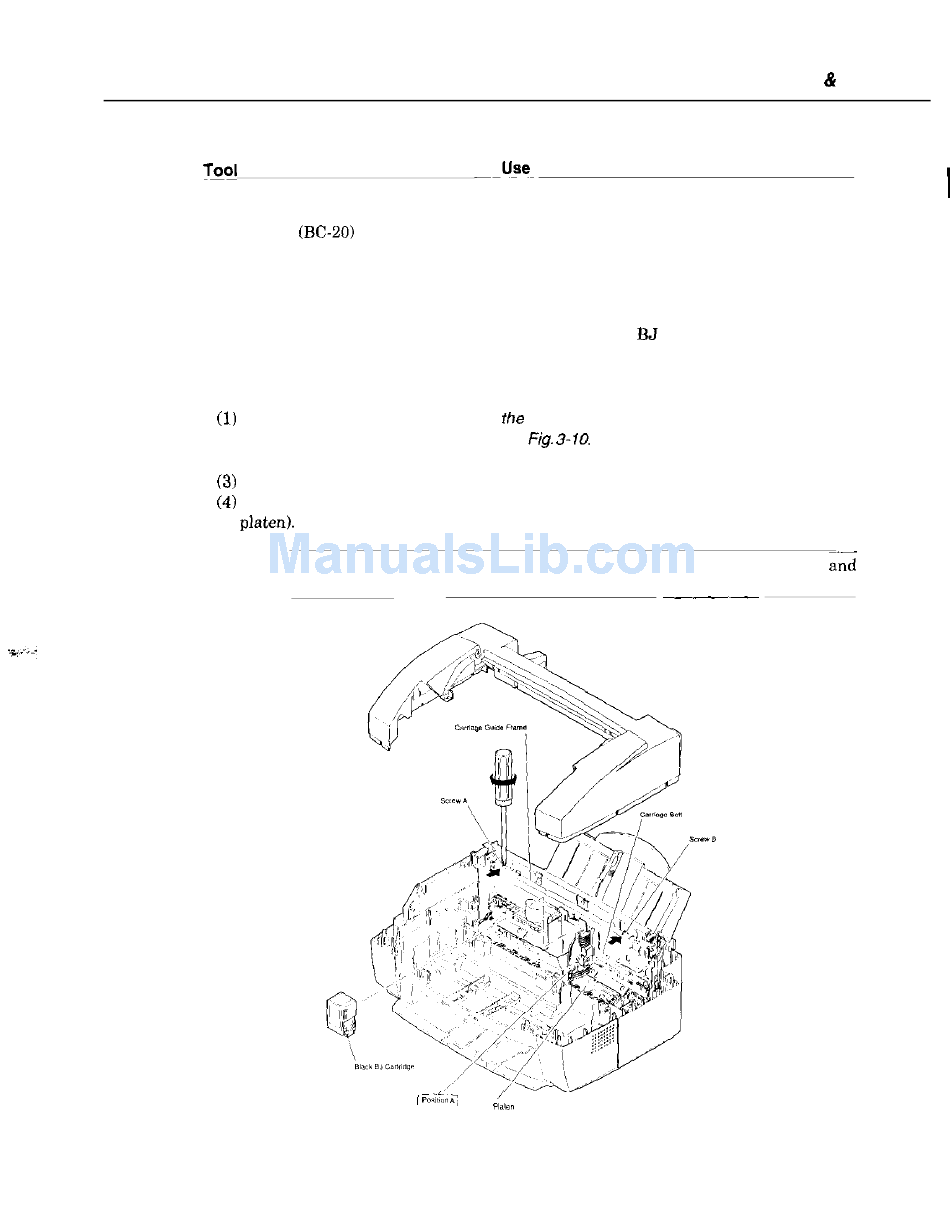

Figure 3-9 Adjustment Preparation
Chapter 3: Maintenance & Service
For head gap measurement
Removing/inserting screws
F o r h e a d g a p m e a s u r e m e n t ( D u r i n g t h e
adjustment, the head's nozzles will come into
contact with the gap gauge. Therefore, do not
use the customer's BJ cartridge. Also, since the
BJ cartridge's weight will have some effect,
always use a fresh BJ cartridge.)
3-l 1
