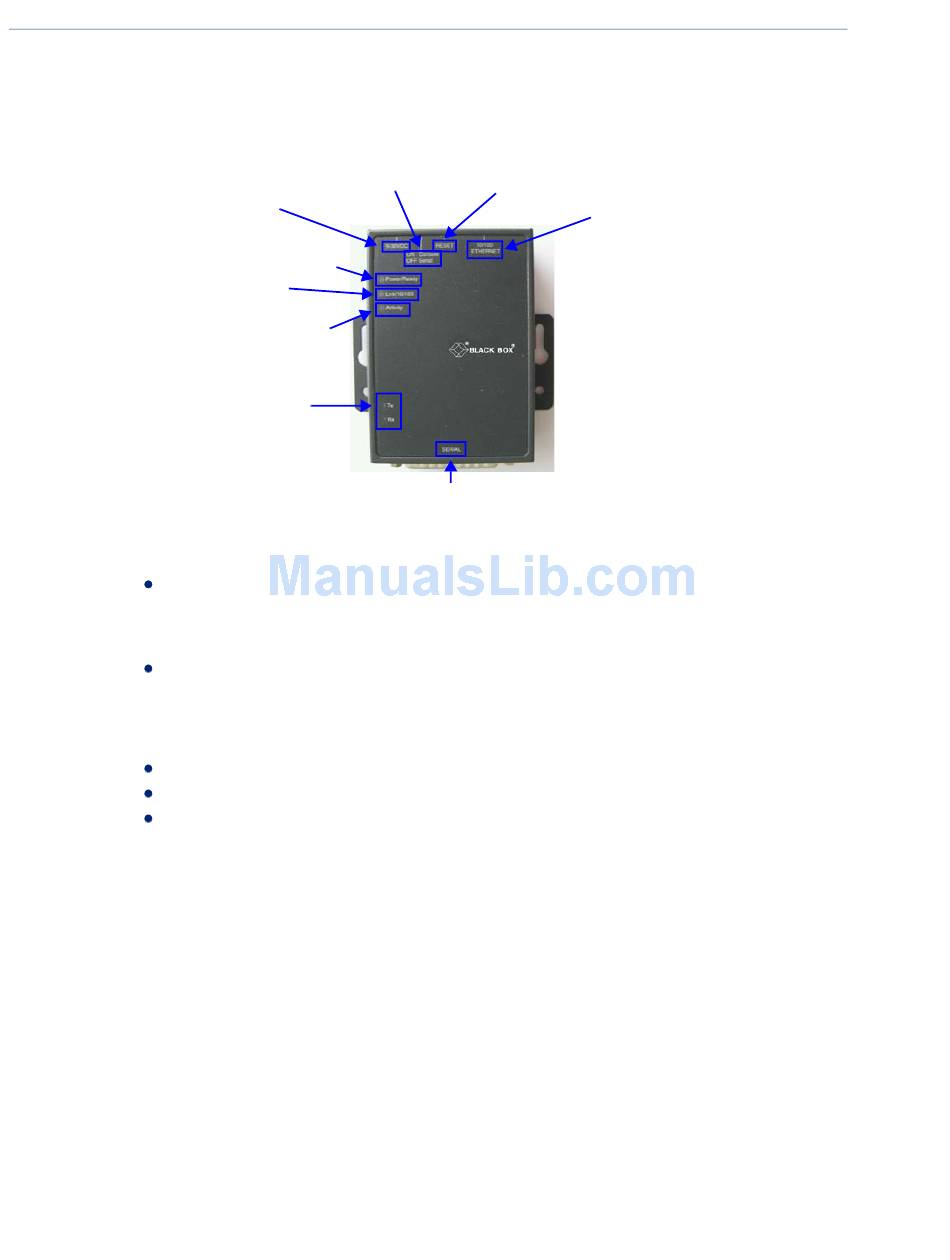

This section describes the components found on the Terminal Server.
LAN Connection
LED Guide
The Terminal Server LEDs display the following information:
Power/Ready—(Green/Red/Yellow) Shows red at power up. If this LED remains red,
indicates that there is a critical error (return to factory). Flashes green to indicate that the
Terminal Server is booting. Flashes green/yellow when the firmware is being updated. Stays
solid green to indicate that the Terminal Server is ready.
Link/10/100
–
–
–
Activity—Flashes Green for transmist (TX) or receive (RX) LAN data
Tx—Flashes with transmit serial activity
Rx—Flashes with receive serial activity
22
Console/Serial
Mode Switch
Power Supply
Power
LAN Activity
Serial Activity
Green—10 Mbits
Yellow—100 Mbits
Off—no LAN connection
Terminal Server User Guide
Reset to Factory
Defaults
Serial Connection
Ethernet
Interface
