Terminal Server Rj45; Terminal Server Db9 - Black Box Terminal Server User Manual

Terminal Server RJ45

To change the settings, do the following:
1. Unplug the Terminal Server from the electrical outlet and disconnect everything from the
box.

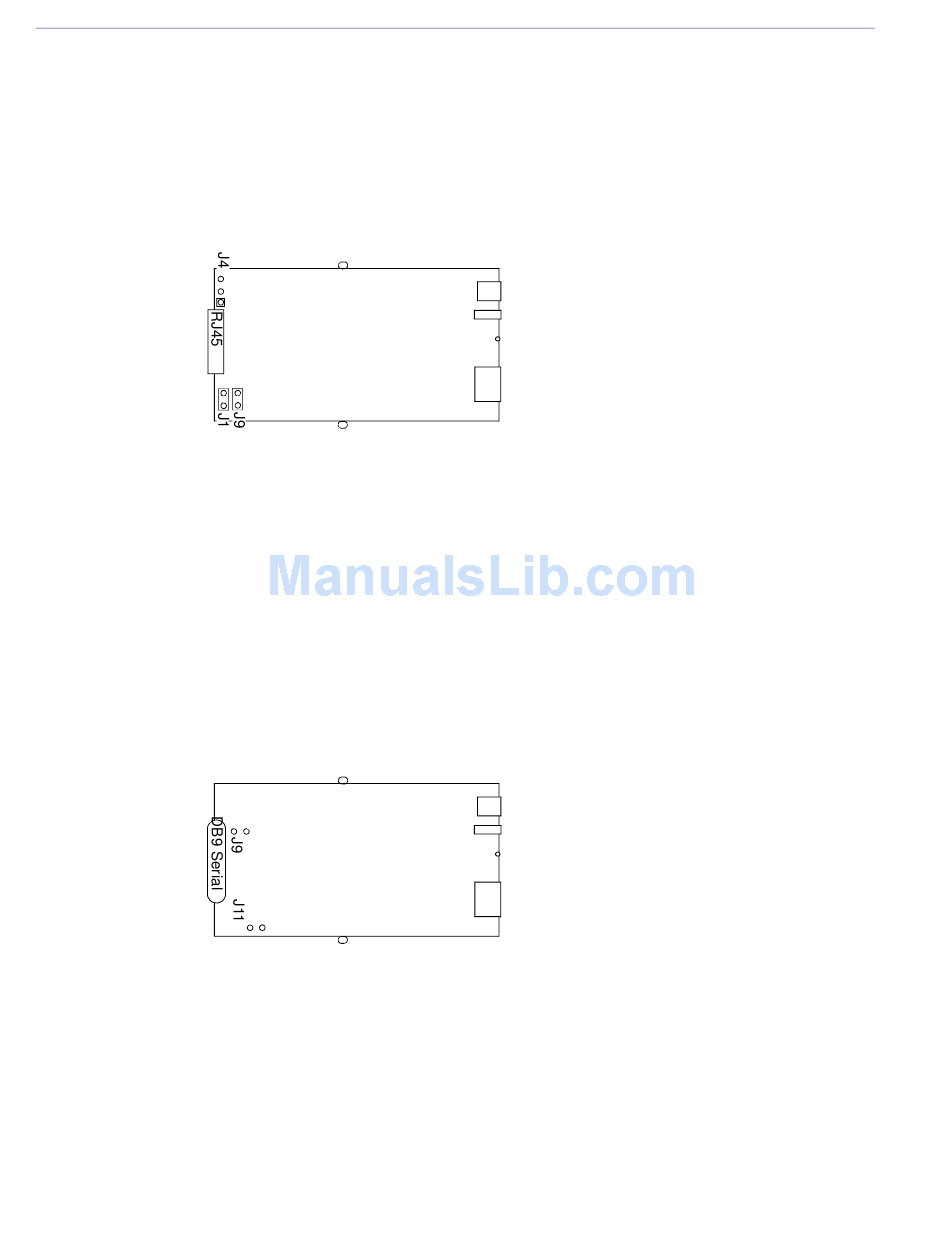

2. Open the case by unscrewing the two side screws, one on each side, and lifting off the top of
the case. You should see the following:
3. To change the power pin out, locate J4. For the fixed 5V DC output, jumper pins 1 and 2. For
the output to equal the external adapter input, jumper pins 2 and 3.
4. To turn line termination
5. Close the Terminal Server case by replacing the case lid and the two screws. You can now
power it on with the new settings.

Terminal Server DB9

To change the settings, do the following:
1. Unplug the Terminal Server from the electrical outlet and disconnect everything from the
box.
2. Open the case by unscrewing the two side screws, one on each side, and lifting off the top of
the case. You should see the following:
3. To turn line termination
4. Close the Terminal Server case by replacing the case lid and the two screws. You can now
power it on with the new settings.
Screw
Pin1
Screw
, locate and jumper both J1 and J9.
on
Screw
Screw
, locate and jumper both J11 and J9.
on
Power
Dip
Switch
Reset
RJ45
Power
Dip
Switch
Reset
RJ45
Setting Jumpers
Installation 25
