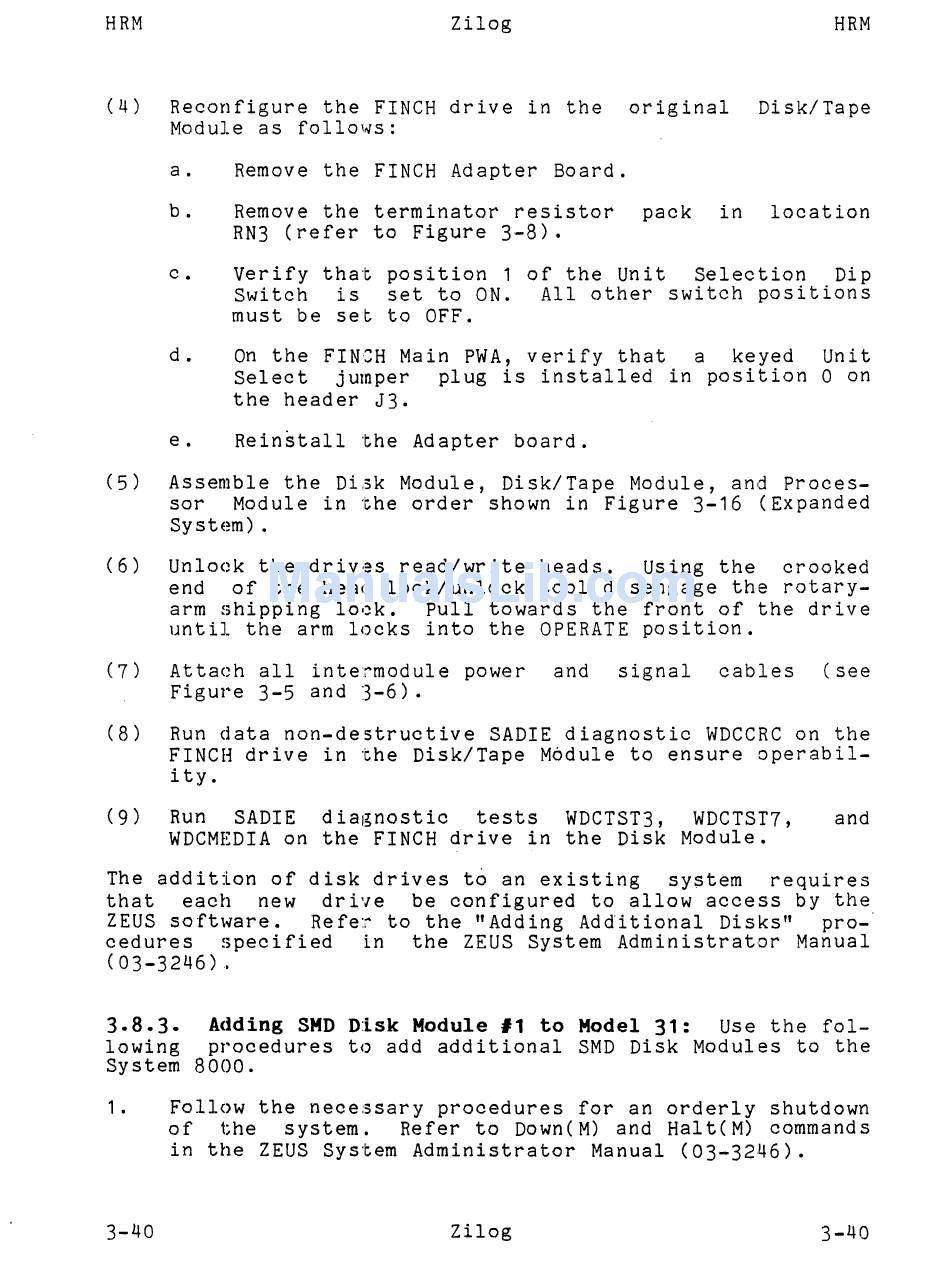

(4) Reconfigure the FINCH drive in the original Disk/Tape
Module as follows:
a. Remove the FINCH Adapter Board.
b. Remove the terminator resistor pack in location
RN3 (refer to Figure 3-8).
c. Verify that position 1 of the Unit Selection Dip
Switch is set to ON. All other switch positions
must be set to OFF.
d. On the FINCH Main PWA, verify that a keyed Unit
Select jumper plug is installed in position 0 on
the header J3.
e.
Rein~tall
the Adapter board.
(5) Assemble the Disk Module, Disk/Tape Module, and Proces-
sor Module in the order shown in Figure 3-16 (Expanded
System) .
(6) Unlock the drives read/write heads. Using the crooked
end of the head lock/unlock tool disengage the rotary-
arm shipping lock. Pull towards the front of the drive
until the arm locks into the OPERATE position.
(7)
Attach all intermodule power and signal cables (see
Figure 3-5 and 3-6).
(8) Run data non-destructive SADIE diagnostic WDCCRC on the
FINCH drive in the Disk/Tape M6dule to ensure operabil-
ity.
(9)
Run SADIE diagnostic tests WDCTST3, WDCTST7, and
WDCMEDIA on the FINCH drive in the Disk Module.
The addition of disk drives t6 an existing system requires
that each new drive be configured to allow access by the
ZEUS so ft\o/are . Re fe::-- to the "Add ing Ad di t ional Di s ks" pro-'
cedures specified in the ZEUS System Administrator Manual
(03-3246 ),
3.8.3.
Adding SMD DIsk Module
11
to Model
31:
Use the fol-
lowing procedures to add additional SMD Disk Modules to the
System 8000.
1.
Follow the necessary procedures for an orderly shutdown
of the system. Refer to Down(M) and Halt(M) commands
in the ZEUS System Administrator Manual (03-3246).
