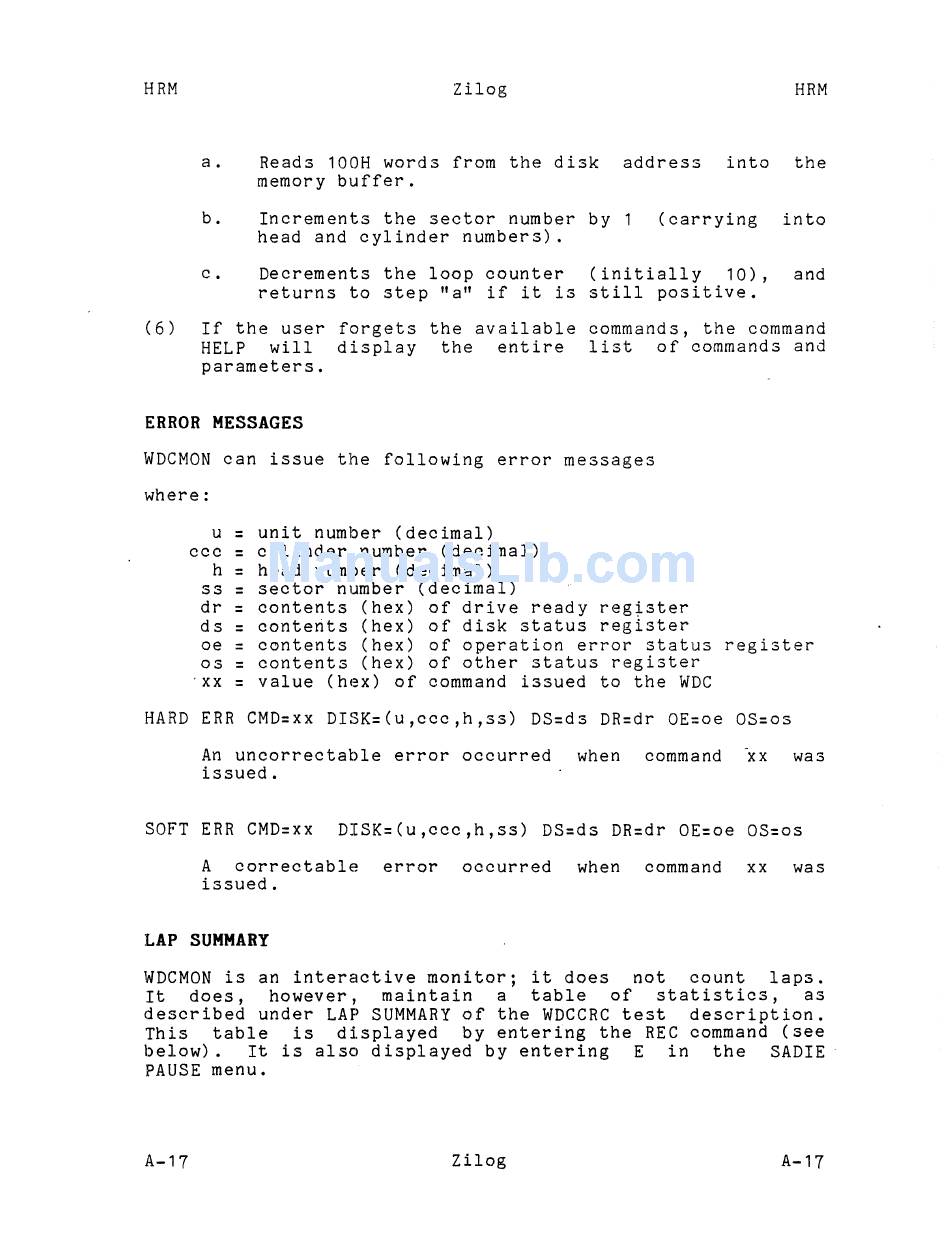

ZiLOG System 8000 Hardware Reference Manual page 248

HRM Zilog
HRM
a. Reads 100H words from the disk address into the
memory buffer.
b. Increments the sector number by 1 (carrying into
head and cylinder numbers).
c. Decrements the loop counter (initially 10), and
returns to step "a" if it is still positive.
(6)
If the user forgets the available commands, the command
HELP will display the entire list of commands and
parameters.
ERROR MESSAGES
WDCMON can issue the following error messages
where:
u = unit number ( dec imal)
ccc = cylinder number (decimal)
h = head number (decimal)
ss = sector number (decimal)
dr = contents (hex) of drive ready register
ds = contents (hex) of disk status register
oe = contents (hex) of operation error status register
os = contents (hex) of other status register
'xx = value
(hl~x)
of command issued to the WDC
HARD ERR CMD=xx DISK=(u,ccc,h,ss) DS=ds DR=dr OE=oe OS=os
An uncorrectable error occurred when command xx was
issued.
SOFT ERR CMD=xx DISK=(u,ccc,h,ss) DS=ds DR=dr OE=oe OS=os
A correctable error occurred when command xx was
issued.
LAP SUMMARY
WDCMON is an interactive monitor; it does not count laps.
It does, however, maintain a table of statistics, as
described under LAP SUMMARY of the WDCCRC test description.
This table is displayed by entering the REC command (see
below). It is also displayed by entering E in the SADIE·
PAUSE menu.
