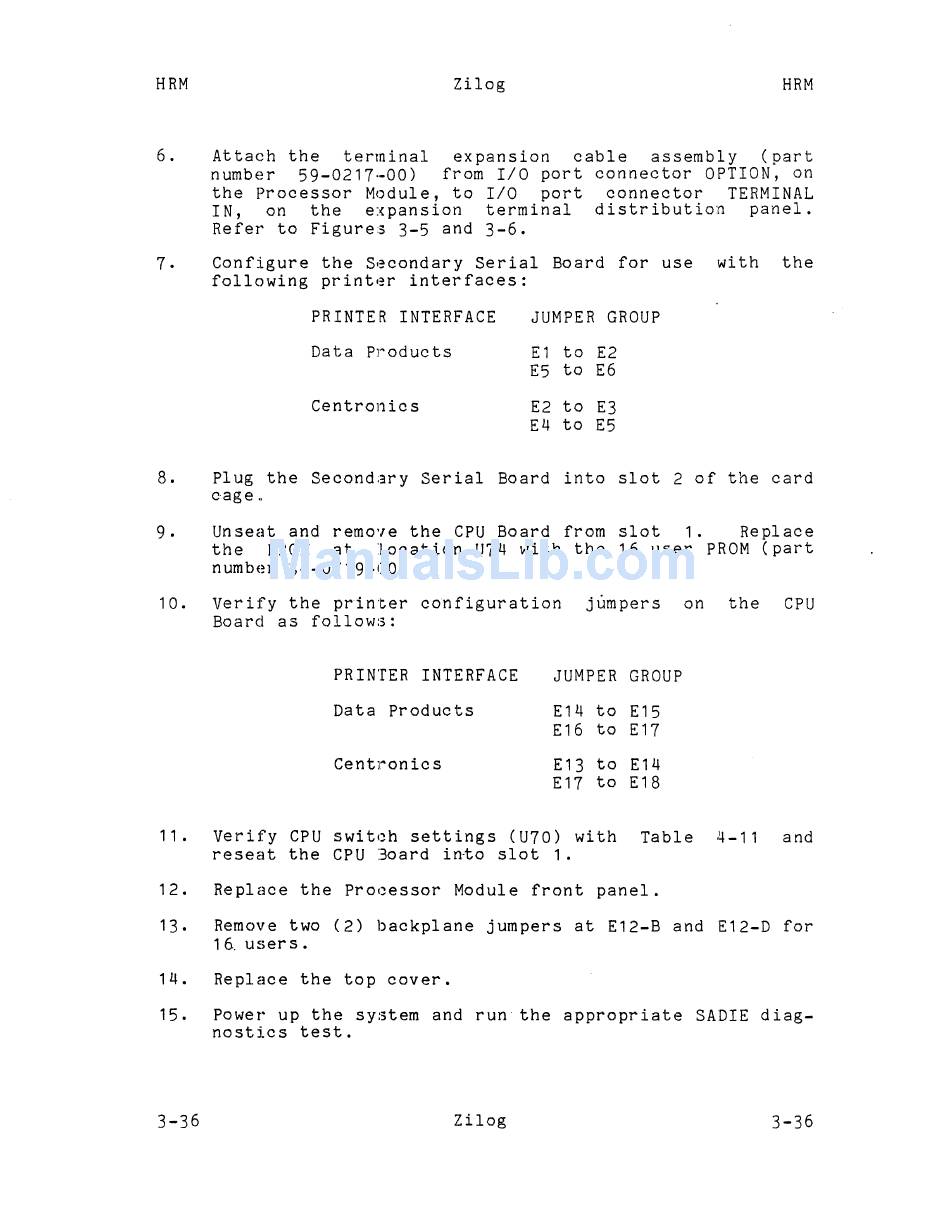

6. Attach the terminal expansion cable assembly (part
number 59-0217·-00) from I/O port connector OPTION, on
the Processor Module, to I/O port connector TERMINAL
IN, on the expansion terminal distribution panel.
Refer to Figures 3-5 and 3-6.
7.
Configure the
Sf~condary
Serial Board for use with the
following
printl~r
interfaces:
PRINTER INTERFACE
JUMPER GROUP
Data Pl'''oducts E1 to E2
E5 to E6
Centronics
E2 to E3
E4 to E5
8. Plug the Secondary Serial Board into slot 2 of the card
e-age . .
9. Unseat and remove the CPU Board from slot 1. Replace
the PROM at location U74 with the 16 user PROM (part
number 34-0719-00.
10. Verify the p~inter configuration j0mpers on the CPU
Board as follows:
PRINTER INTERFACE
Data Products
Centr-'on ic s
JUMPER GROUP
E14 to E15
E16 to E17
E13 to E14
E17 to E18
11. Verify CPU
switc~h
settings (U70) with Table ,4-11 and
reseat the CPU :3oard in-to slot 1.
12. Replace the Processor Module front panel.
13. Remove two (2) backplane jumpers at E12-B and E12-D for
16. users.
14. Replace the top cover.
15. Power up the system and run· the appropriate SADIE diag-
nostics test.
