System 8000 Cpu Board (Cpu) - ZiLOG System 8000 Hardware Reference Manual

HRM Zilog HRM
Z8001A
MICROPROCESSOR
CONSOLE BAUD RATE
SELECTOR SWITCH
AND BOOT DEVICE
3 MEMORY
MANAGEMENT
UNITS
SEGMENTED/NIDN·SEGMENTED
OPERATING SYSTEM
CONFIGURATICIN JUMPERS
E1-E12 rEST POINTS
PRINTER JUMPERS
E16,17,18
BAUD RATE
GENERATORS
4 PROM
MONITORS
PARALLEL
PORT
8 SERIAL I/O
CHANNELS

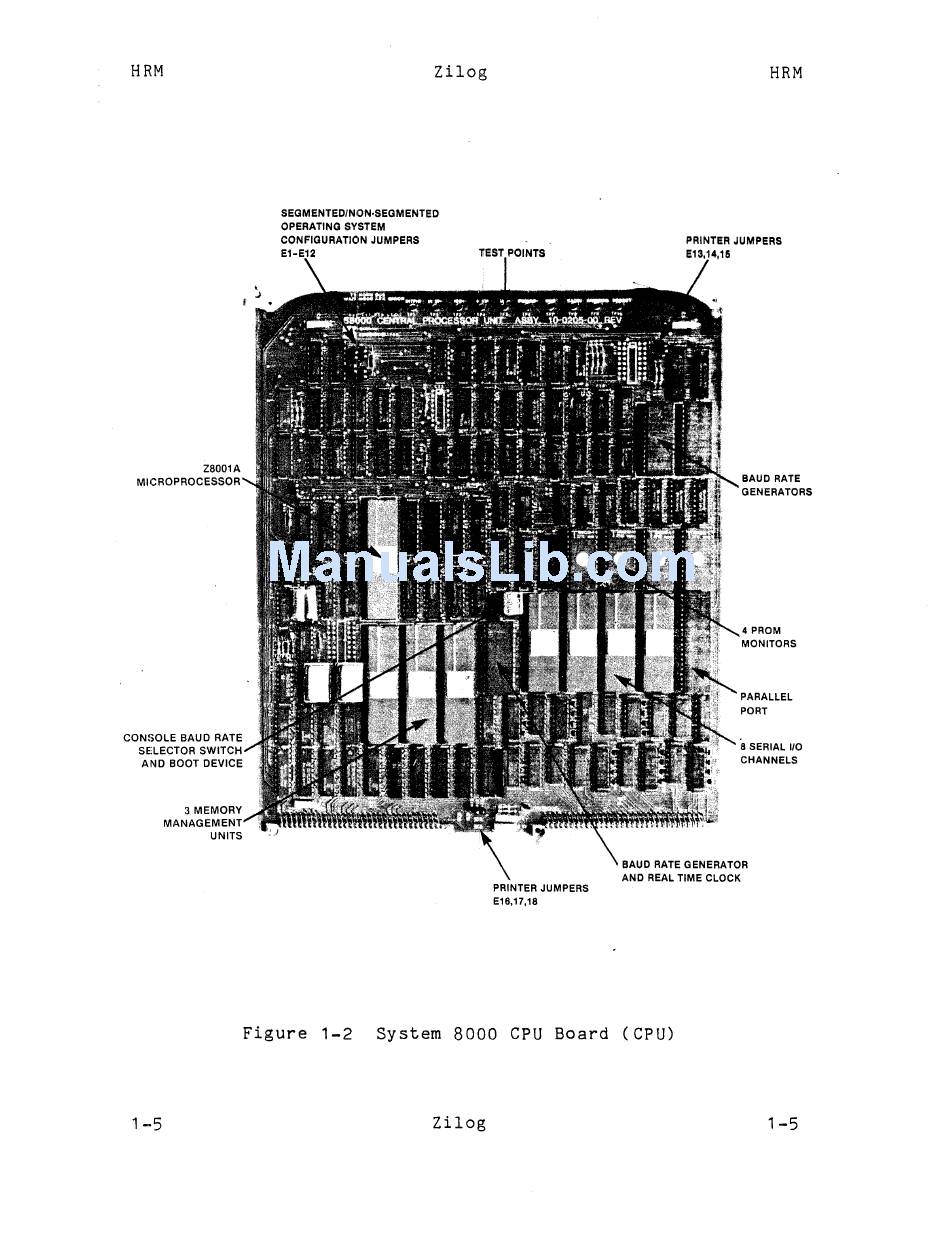

Figure 1-2
1-5
System 8000 CPU Board (CPU)
