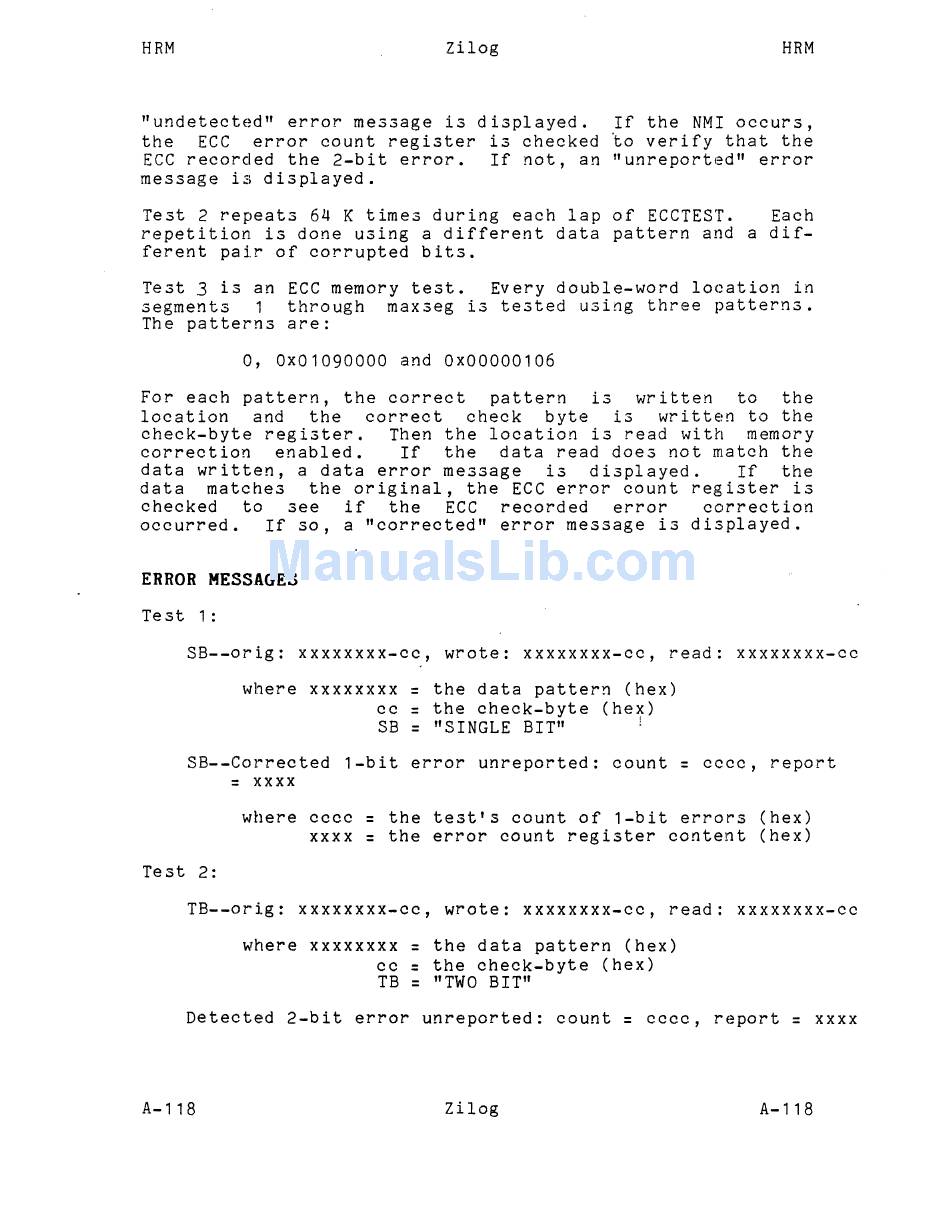

"undetected" error message is displayed. If the NMI occurs,
the ECC error count register is checked to verify that the
ECC recorded the 2-bit error. If not, an "unreportl=d" error
message is displayed.
Test 2 repeats
64 K
times during each lap of ECCTEST. Each
repetition is done using a different data pattern and a dif-
ferent pair of corrupted bits.
Test 3 is an ECC memory test. Every double-word location in
segments 1 through maxseg is tested using three patterns.
The patterns are:
0, Ox01090000 and Ox00000106
For each pattern, the correct pattern is written to the
location and the correct check byte is written to the
check-byte register. Then the location is read with memory
correction enabled. If the data read does not match the
data written, a data error message is displayed. If the
data matches the original, the ECC error count register is
checked to see if the ECC recorded error correction
occurred. If so, a "corrected" error message is displayed.
ERROR MESS,AGES
Te st 1:
SB--orig: xxxxxxxx-cc, wrote: xxxxxxxx-cc, read: xxxxxxxx-cc
where xxxxxxxx
=
the data pattern (hex)
cc
=
the check-byte (he~)
SB
=
"SINGLE BIT" ;
SB--Corrected 1-bit error unreported: count
=
cccc, report
=
xxxx
where cccc
=
the test's count of 1-bit errors (hex)
xxxx
=
the error count register content (hex)
Test 2:
TB--orig: xxxxxxxx-cc, wrote: xxxxxxxx-cc, read: xxxxxxxx-cc
where xxxxxxxx
=
the data pattern (hex)
cc
=
the check-byte (hex)
TB
=
"TWO BIT"
Detected 2-bit error unreported: count
=
cccc, rE~port
=
xxxx
