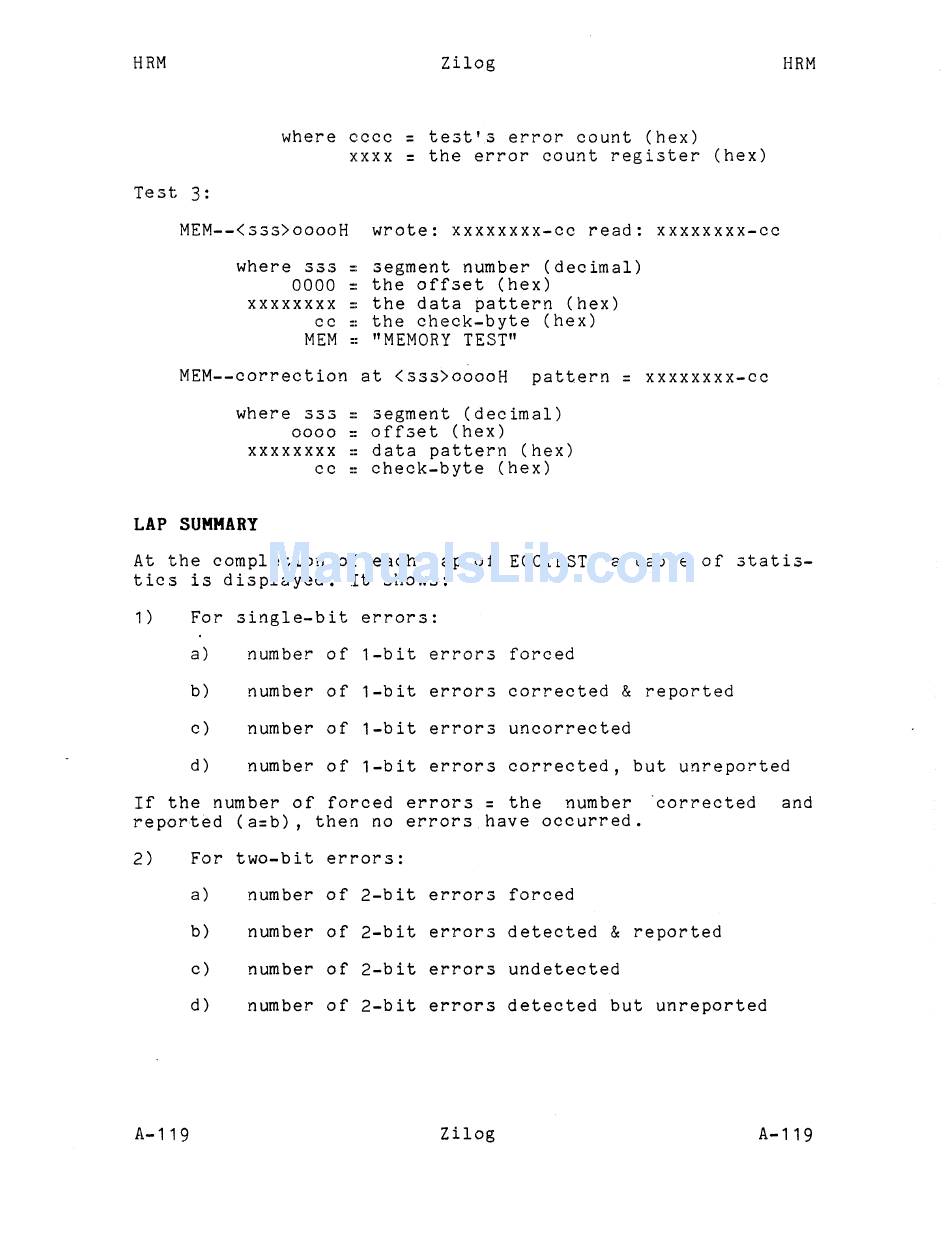

ZiLOG System 8000 Hardware Reference Manual page 350

HRM
Test
3:
Zilog
where eccc = test'.s error count (hex)
xxxx = the error count register (hex)
HRM
MEM--<sss>ooooH wrote: xxxxxxxx-cc read: xxxxxxxx-cc
where sss - segment number (decimal)
0000 _ the offset (hex)
xxxxxxxx _ the data pattern (hex)
cc _ the check-byte (hex)
MEM .. "MEMORY TEST"
MEM--correction at <sss>ooooH pattern = xxxxxxxx-cc
where sss - segment (decimal)
0000 _
offset (hex)
xxxxxxxx - data pattern (hex)
cc _ check-byte (hex)
LAP SUMMARY
At the completion of each lap of ECCTEST, a table of statis-
tics is displayed. It shows:
1)
For single-bit errors:
a)
number of 1-bi t errors forced
b)
number of 1-b it errors corrected
&
reported
c)
number of 1-b it errors uncorrected
d)
number of 1-bit errors corrected, but unreported
If the number of forced errors
=
the number corrected and
re por·ted ( a= b) , then no errors have occurred.
2)
For two-bi t errors:
a)
number of 2-bit errors forced
b)
number of 2-bit errors detected
&
reported
c) number of 2-bit errors undetected
d) number of 2-bit errors detected but unreported
A-119
