3 .. 4.3 •
Initial Chec:kout and St,artup Procedure: This pro-
cedure assumes that drive cabling and configuration pro-
cedures of this section have been performed and
sati~fied.
(1) Remove the front panel from the Disk/Tape Module.
(~~) Place the rotary-arm shipping lock to the OPERATE posi-
tion. Refer to Figure
3-9
for drive-to-system orienta-
tion.
CAUTION
Figure
3-9
shows the rotary-arm shipping lock in
the locked and operating positions. To prevent
damage to the read/write heads or the disk itself,
place the rotary-arm shipping lock in the OPERATE
position only after installation has been com-
pleted.
-----l.~;dJ~--------Ll:::::::==:t..J---
FRONT OF
SYSTEM
ROTARY·ARM
SHIPPING LOCK
00405

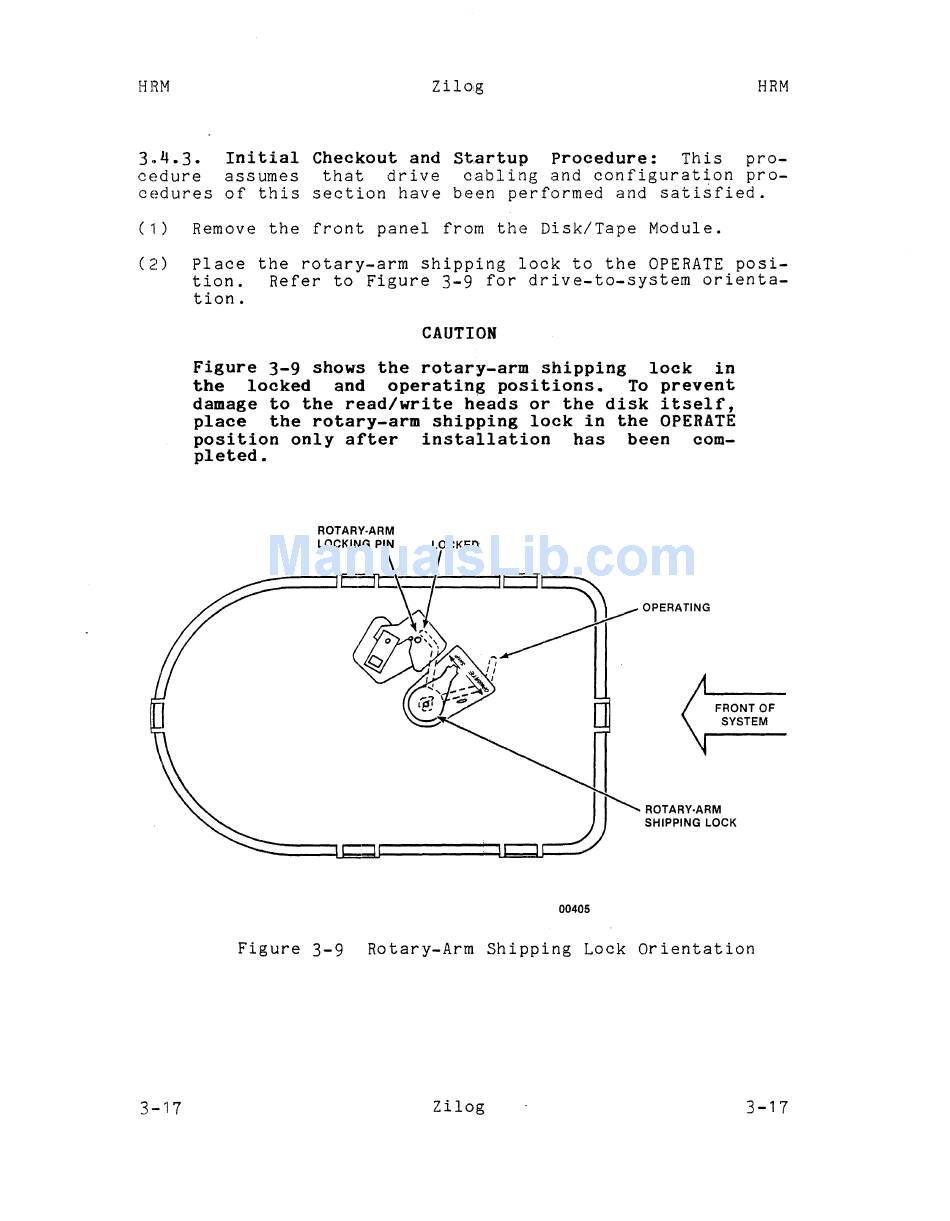

Figure
3-9
Rotary-Arm Shipping Lock Orientation
3-17
