Global User Management
4. Always Use SSL Login: Enables only SSL logins at the MMB WebUI. (This option will be enabled automatically,
LDAP requires HTTPS to be enabled.)
5. Directory Server Type: Sets the LDAP Server type (OpenLDAP).
6. LDAP Server: IP address of the LDAP Server.
7. Domain Name: Name of the domain (e.g. testdomain2.local).
8. Base DN: Assigned automatically.
9. Groups Directory As Sub-Tree From Base DN: Not required.
10. Dept. Name: Name of the department.
11. LDAP Auth. User Name: Management account of the openLDAP Server in the notation "cn=Manager,dc=
testdomain2,dc=local".
12. LDAP Auth. User Password: Password of the manager account.

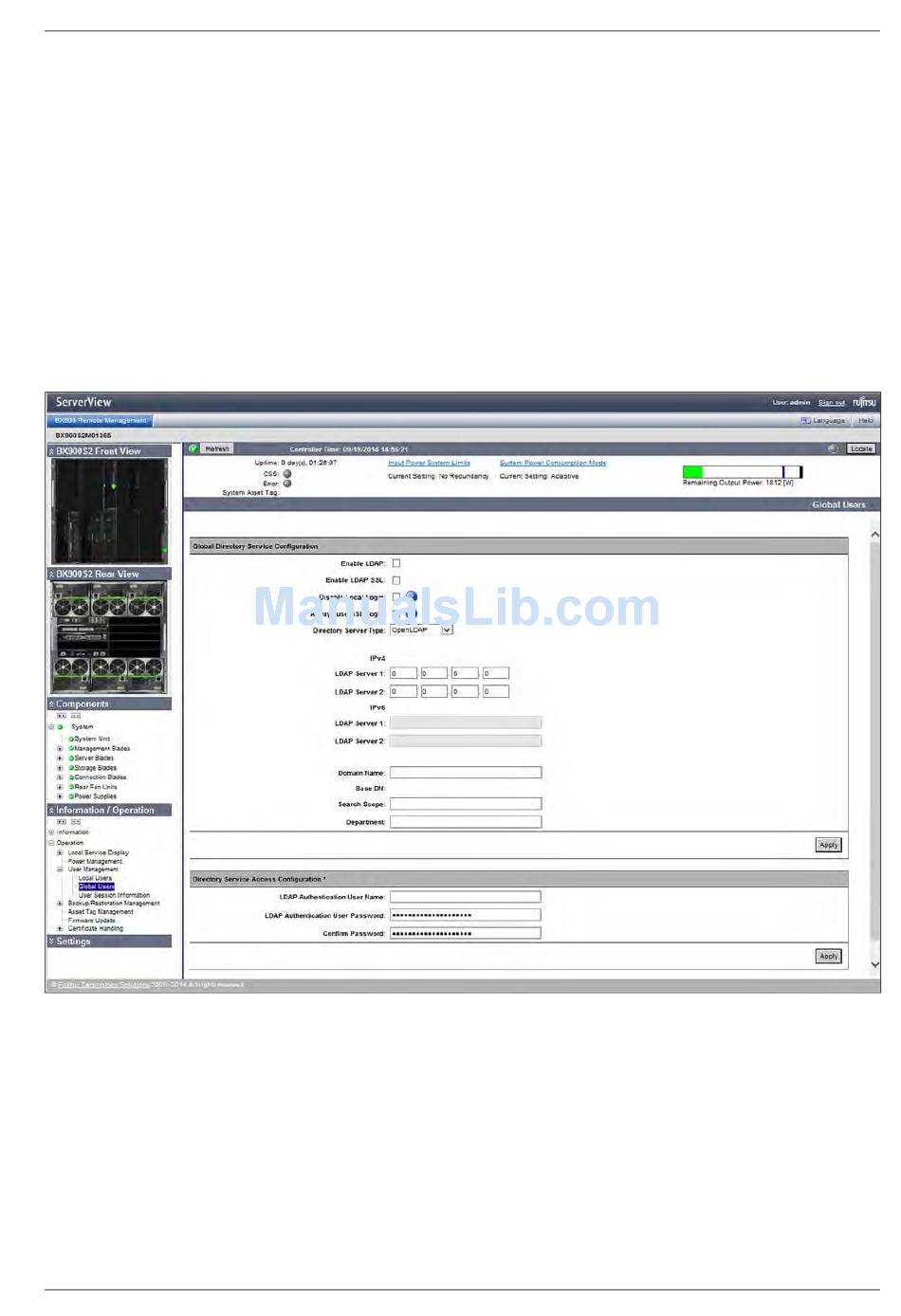

Figure 60: LDAP settings on the management blade
Alternatively MMB configuration can be performed using the SMASH-CLP interface.
Open the BX900 MMB SMASH-CLP interface and navigate to the target
OemFujitsuSiemens/AgentInfo/LdapAuthentication.
The settings are the same as in the WebUI and can be set using the command notation:
set [property]="[value]", e.g. set AgentLdapRootDomainName="testdomain2.local"
A Help command is available for every writeable property, e.g. help AgentLdapType.
ServerView BX900 Management Blade
Configuring an openLDAP Server
