4.2 The Start Page
After you have logged in successfully, a home page (start page) is displayed which provides an overview of the
system configuration, i.e. the installed components and their current status. The start page looks like this:

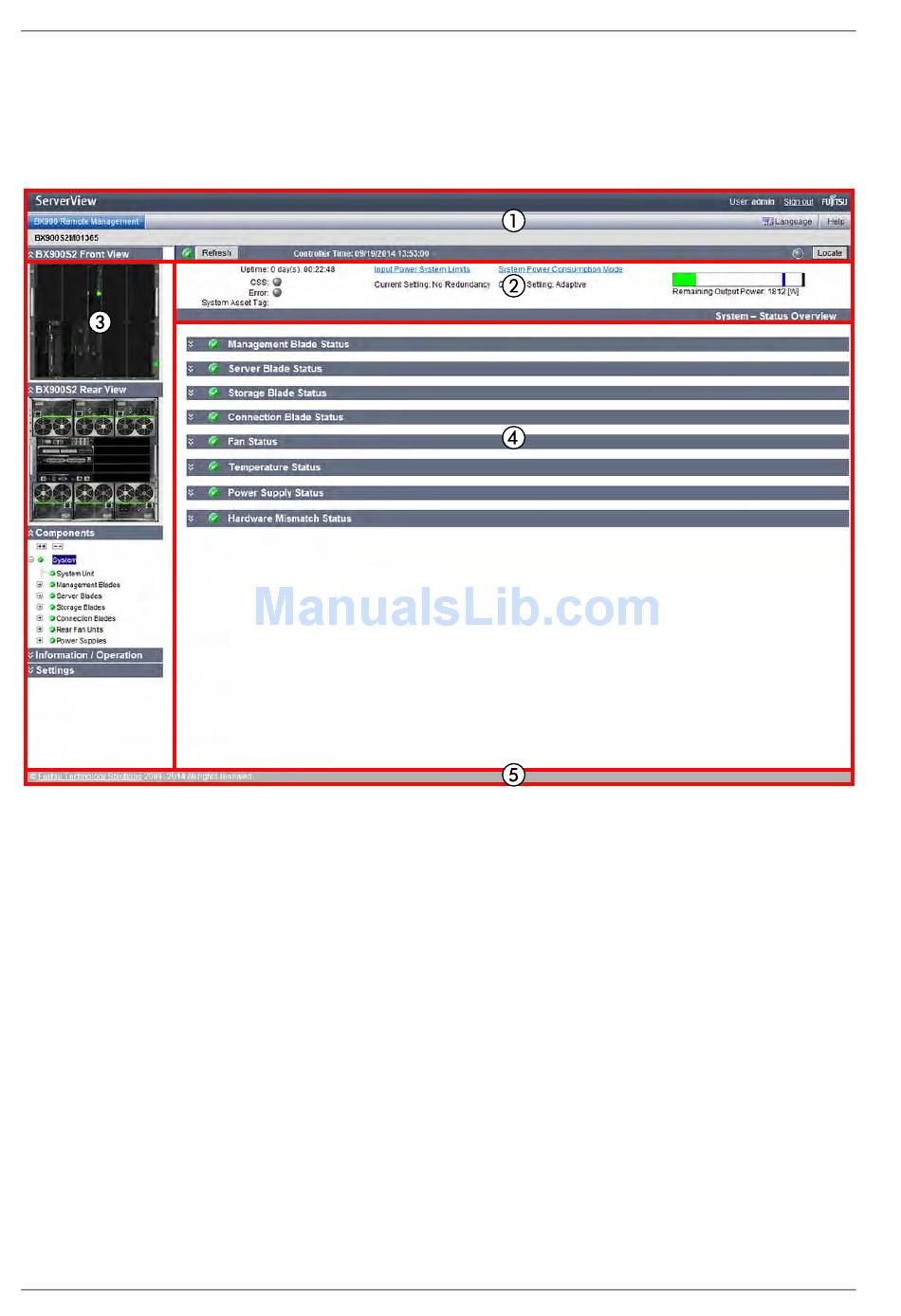

Figure 30: Frames of the start page
The start page consists of five frames:
banner frame (1), status frame (2), navigation frame (3), main frame (4) and bottom frame (5).
1. Banner frame (1)
The banner frame comprises the following fields:
● The name of the blade server (in this example a BX900 system unit) is displayed in the field on the left below
the ServerView logo.
● The name of the current user (in this example the user admin) is displayed in the upper field on the right.
● A link for signing out (Sign out) beside the name of the user who is currently logged in.
● A HELP field at the far right below the Fujitsu logo.
The HELP field is in turn subdivided into three fields. These fields become visible as soon as the cursor
points to HELP. The fields are:
– About
Supplies information about the current firmware status.
– On Page
Shows the help text for the selected menu item (see Navigation frame below).
