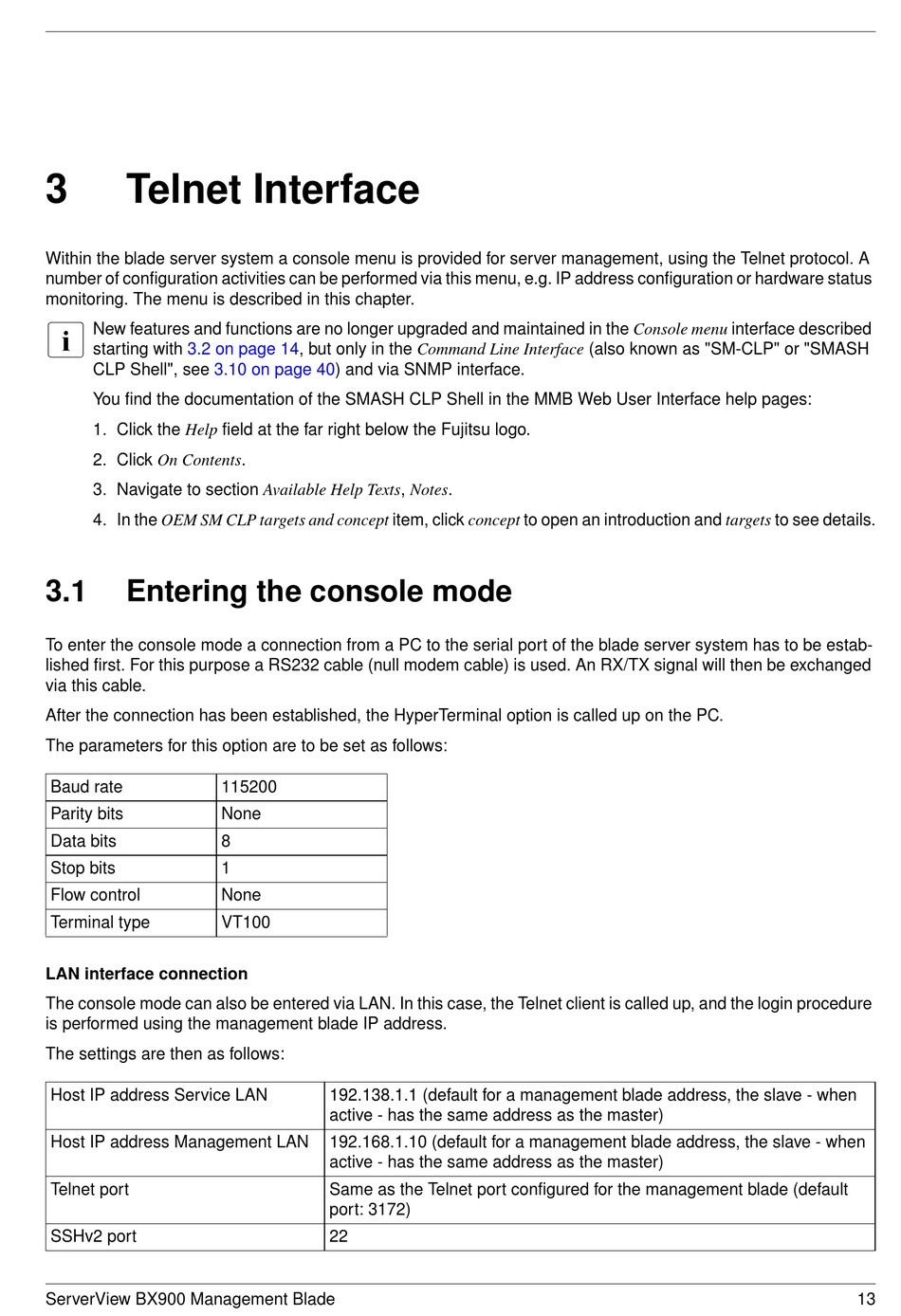

Telnet Interface

Within the blade server system a console menu is provided for server management, using the Telnet protocol. A
number of configuration activities can be performed via this menu, e.g. IP address configuration or hardware status
monitoring. The menu is described in this chapter.
I
New features and functions are no longer upgraded and maintained in the Console menu interface described
starting with 3.2 on page
CLP Shell", see 3.10 on page
You find the documentation of the SMASH CLP Shell in the MMB Web User Interface help pages:
1. Click the Help field at the far right below the Fujitsu logo.
2. Click On Contents.
3. Navigate to section Available Help Texts, Notes.
4. In the OEM SM CLP targets and concept item, click concept to open an introduction and targets to see details.
3.1

Entering the console mode

To enter the console mode a connection from a PC to the serial port of the blade server system has to be estab-
lished first. For this purpose a RS232 cable (null modem cable) is used. An RX/TX signal will then be exchanged
via this cable.
After the connection has been established, the HyperTerminal option is called up on the PC.
The parameters for this option are to be set as follows:
Baud rate
Parity bits
Data bits
Stop bits
Flow control
Terminal type
LAN interface connection
The console mode can also be entered via LAN. In this case, the Telnet client is called up, and the login procedure
is performed using the management blade IP address.
The settings are then as follows:
Host IP address Service LAN
Host IP address Management LAN
Telnet port
SSHv2 port
ServerView BX900 Management Blade
14, but only in the Command Line Interface (also known as "SM-CLP" or "SMASH
40) and via SNMP interface.
115200
None
8
1
None
VT100
192.138.1.1 (default for a management blade address, the slave - when
active - has the same address as the master)
192.168.1.10 (default for a management blade address, the slave - when
active - has the same address as the master)
Same as the Telnet port configured for the management blade (default
port: 3172)
22
