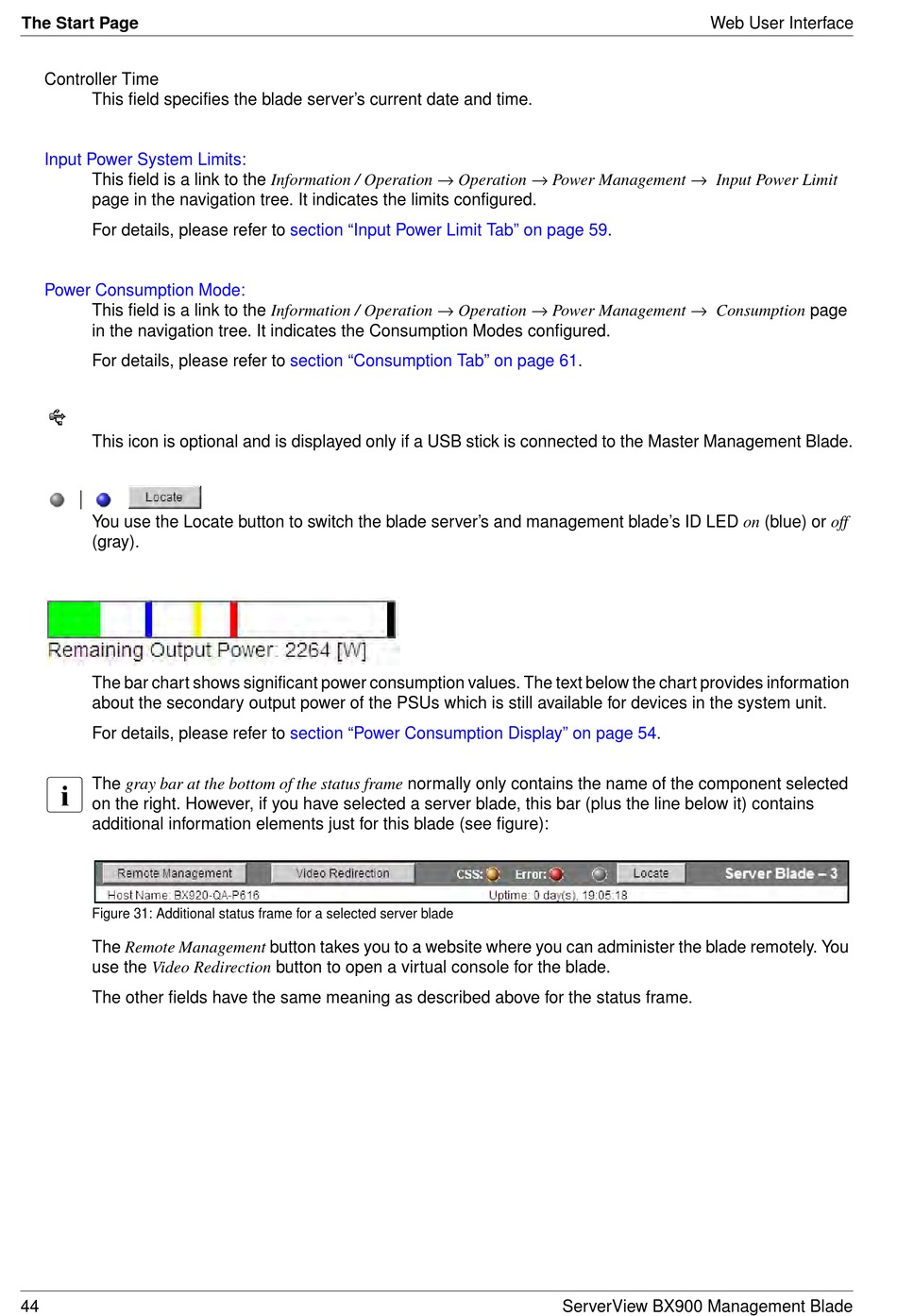

The Start Page
Controller Time
This field specifies the blade server's current date and time.
Input Power System Limits:
This field is a link to the Information / Operation → Operation → Power Management → Input Power Limit
page in the navigation tree. It indicates the limits configured.
For details, please refer to
Power Consumption Mode:
This field is a link to the Information / Operation → Operation → Power Management → Consumption page
in the navigation tree. It indicates the Consumption Modes configured.
For details, please refer to
This icon is optional and is displayed only if a USB stick is connected to the Master Management Blade.
⏐
You use the Locate button to switch the blade server's and management blade's ID LED on (blue) or off
(gray).
The bar chart shows significant power consumption values. The text below the chart provides information
about the secondary output power of the PSUs which is still available for devices in the system unit.
For details, please refer to
I
The gray bar at the bottom of the status frame normally only contains the name of the component selected
on the right. However, if you have selected a server blade, this bar (plus the line below it) contains
additional information elements just for this blade (see figure):
Figure 31: Additional status frame for a selected server blade
The Remote Management button takes you to a website where you can administer the blade remotely. You
use the Video Redirection button to open a virtual console for the blade.
The other fields have the same meaning as described above for the status frame.
44
section "Input Power Limit Tab" on page
section "Consumption Tab" on page
section "Power Consumption Display" on page
Web User Interface
59.
61.
54.
ServerView BX900 Management Blade
