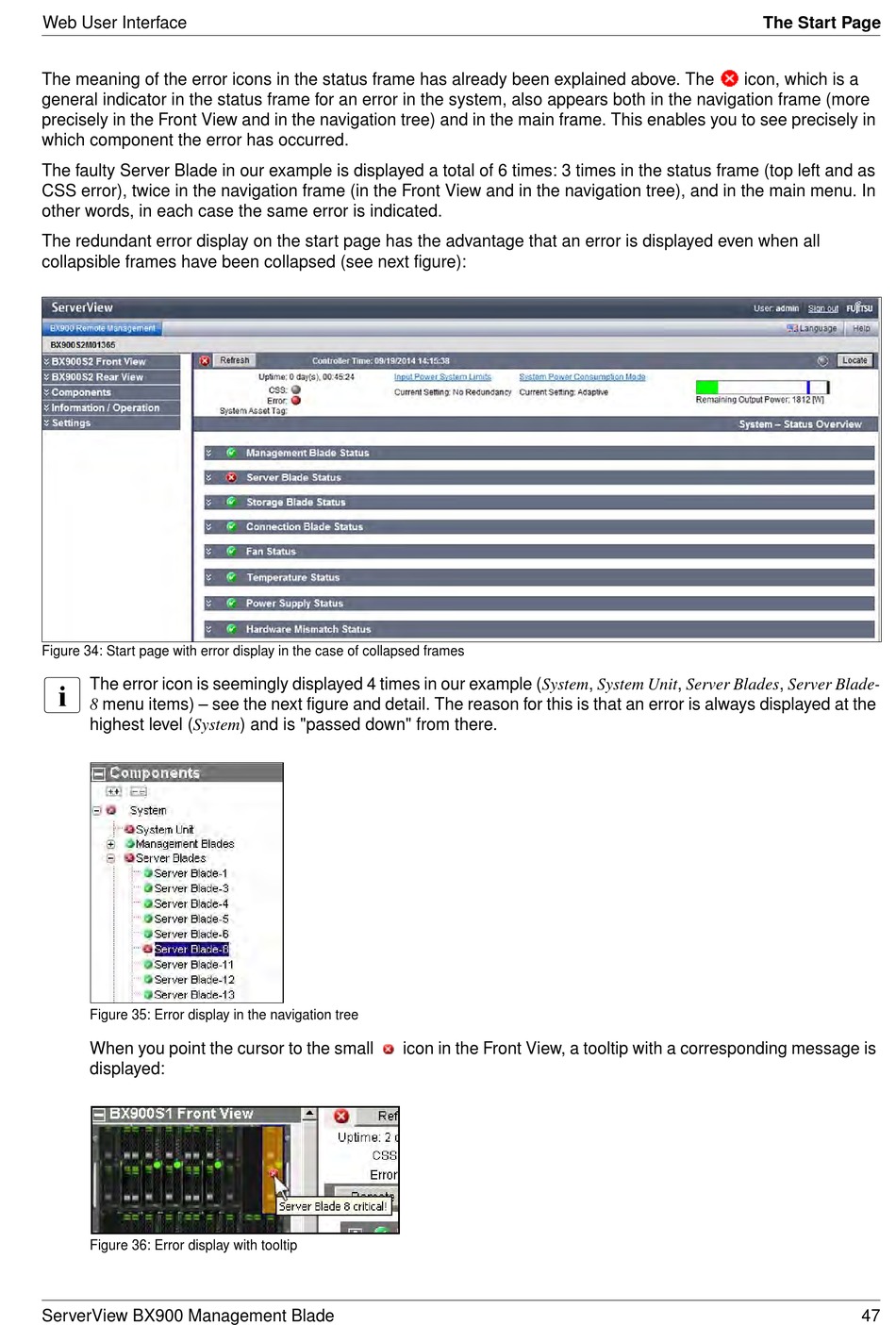

Web User Interface
The meaning of the error icons in the status frame has already been explained above. The
general indicator in the status frame for an error in the system, also appears both in the navigation frame (more
precisely in the Front View and in the navigation tree) and in the main frame. This enables you to see precisely in
which component the error has occurred.
The faulty Server Blade in our example is displayed a total of 6 times: 3 times in the status frame (top left and as
CSS error), twice in the navigation frame (in the Front View and in the navigation tree), and in the main menu. In
other words, in each case the same error is indicated.
The redundant error display on the start page has the advantage that an error is displayed even when all
collapsible frames have been collapsed (see next figure):
Figure 34: Start page with error display in the case of collapsed frames
I
The error icon is seemingly displayed 4 times in our example (System, System Unit, Server Blades, Server Blade-
8 menu items) – see the next figure and detail. The reason for this is that an error is always displayed at the
highest level (System) and is "passed down" from there.
Figure 35: Error display in the navigation tree
When you point the cursor to the small
displayed:
Figure 36: Error display with tooltip
ServerView BX900 Management Blade
icon in the Front View, a tooltip with a corresponding message is
The Start Page
icon, which is a
47
