Configuring an Active Directory Server

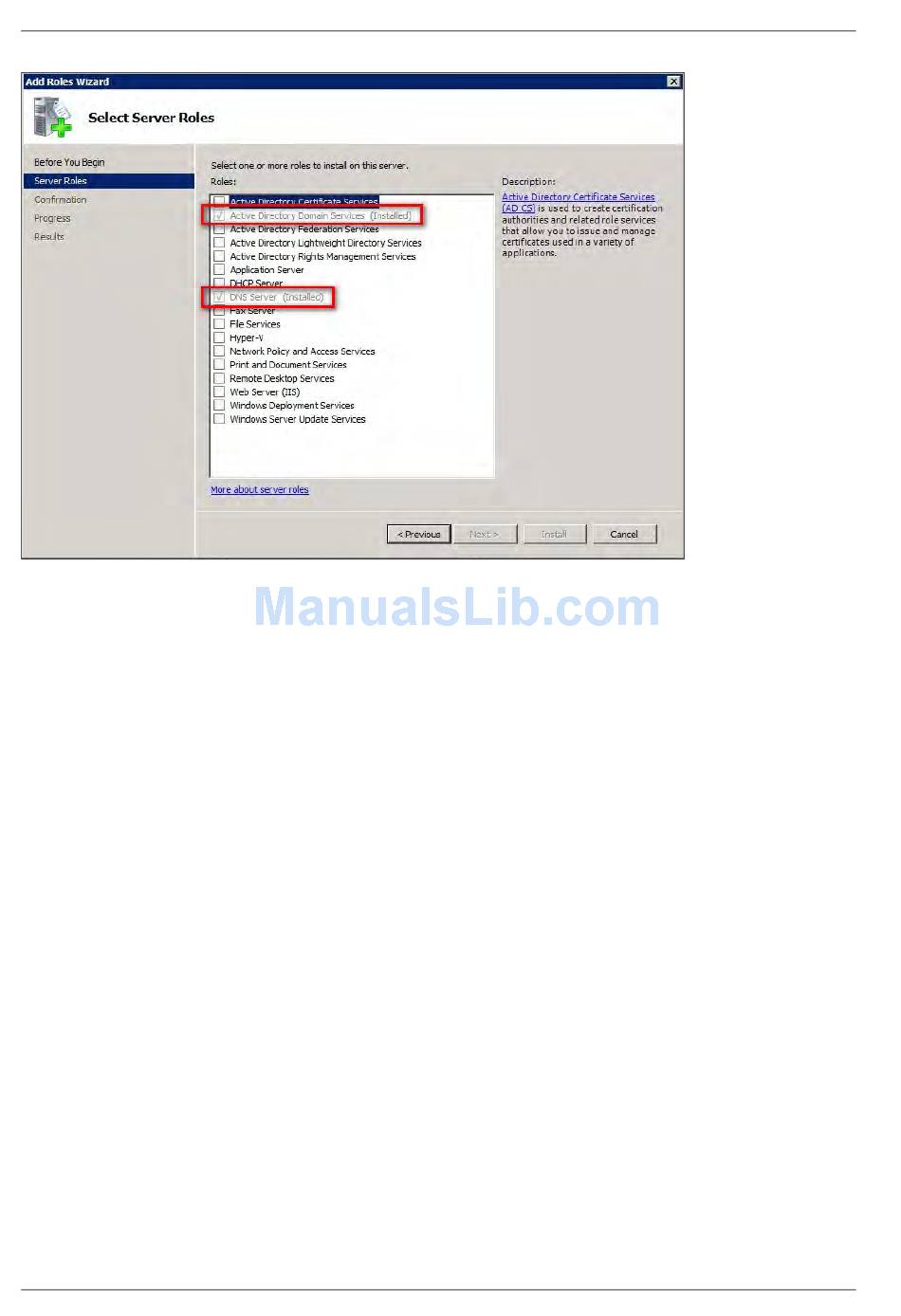

Figure 52: AD – server roles
6.1.2 Creating the LDAP Structure (based on Microsoft Active
Directory)
To permit the management blade to be accessed by means of an LDAP user, a particular structure consisting of
Organizational Units (OUs) and Groups must be set up. A sample configuration is described here.
The tool SVS_LDAPDeployer (v. 1.00.09209) can be used to create the structure. The tool can be used from any
system with network access to the Active Directory Server on which at least JAVA v1.5 is installed.
The configuration file Generic_InitialDeploy.xml is included in the SVS_LDAPDeployer software package and should
be edited according to your specific needs before deploying the structure in the Active Directory.
The following sections should be edited:
– <DirectoryService> : Contains the IP and Port of the Active Directory Server.
– <DirectoryType> : Sets the type of LDAP directory, in this example Microsoft AD.
– <root> : Contains the root level of your domain, e.g. for testdomain1.local "dc=testdomain1,dc=local".
– <username> : Contains the administrator's user name in the notation username@domain.org, e.g.
Administrator@testdomain1.local.
– <Department name> : The name of the department where the structure will be created, e.g. TestDepartment.
– If the password section is left blank, the SVS_LDAPDeployer will ask for the administrator's password during
execution.
When configuration is finished you can execute the SVS_LDAPDeployer by opening a CMD window, navigating to
the SVS_LDAPDeployer directory and issuing the following command:
# java -jar SVS_LdapDeployer.jar -deploy Configuration_InitialDeploy_Generic.xml
The SVS_LDAPDeployer starts, asks for the administrator's password and creates the structure in the Active
Directory which is needed to authenticate users of the MMB.
66
Global User Management
ServerView BX900 Management Blade
