Web User Interface
4.5

MMB firmware update via USB

As an alternative to an update via Local File or TFTP, the MMB firmware can be updated via USB Device. For
Firmware update via HTTP see next section.
It is possible to start the USB update via the interfaces WEB GUI and OEM SM CLP. A USB stick, formatted as
FAT16, FAT32, VFAT or EXT2, with a firmware file must be used. The Firmware Update page got the new radio
button for the USB Device:
1. Open the MMB WebUI and navigate to Operation → Firmware Update.
2. Insert the stick containing the firmware file into the USB socket of the MMB.
In the MMB-GUI the USB icon

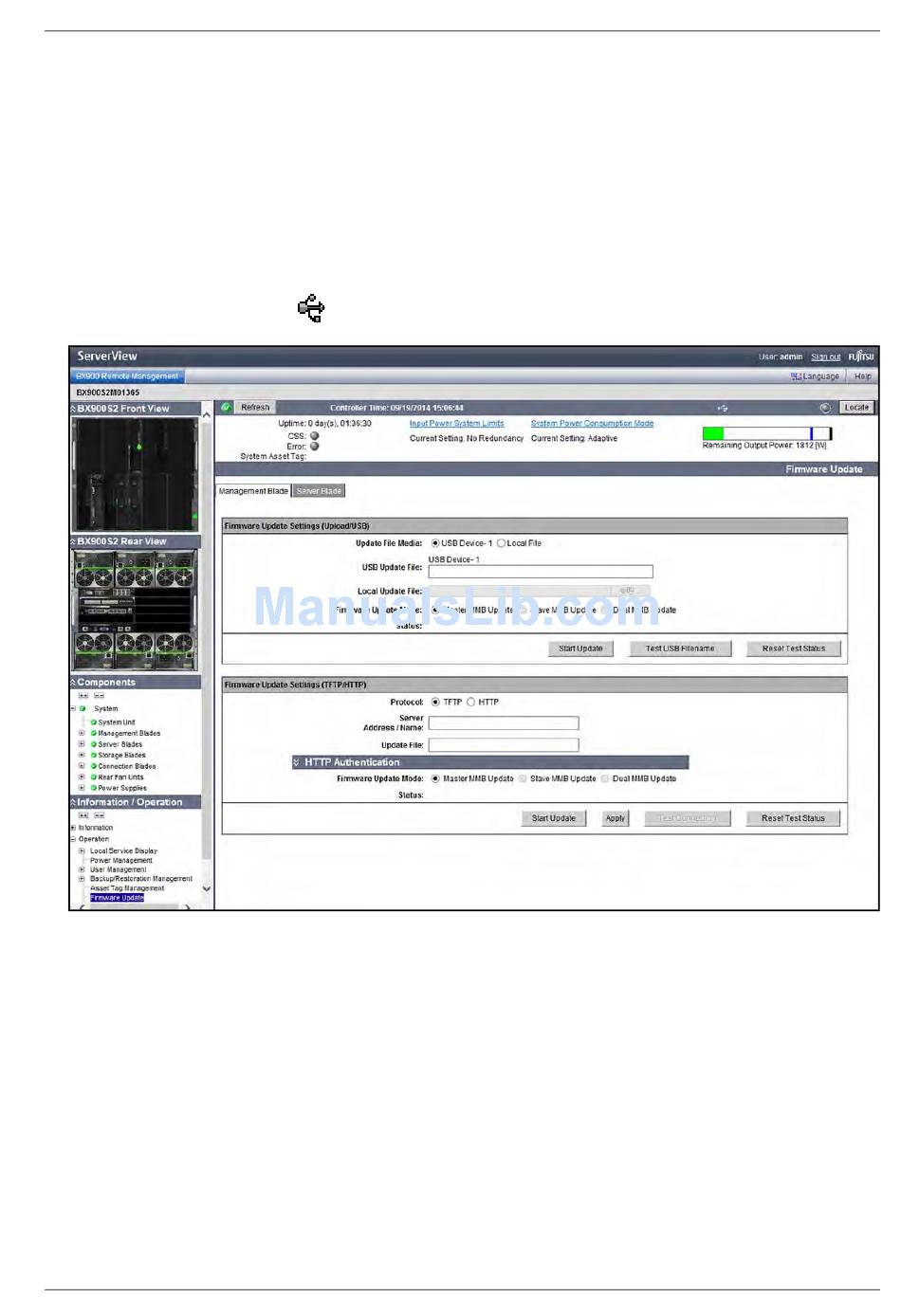

Figure 40: Firmware Update Settings (Upload/USB) frame on the Firmware Update page
3. In the Firmware Update Settings (Upload/USB) frame, select the USB Device radio button (between Update File
Media and Local File).
4. Enter the firmware filename in the USB Update File text field. Optionally you can enter the path name separated
by slash characters, not more than 255 characters.
5. Press the Test USB Filename button.
The MMB starts a search with the given string to localize the file and shows the result in the Status: line: USB
file exists or USB file not exists.
6. Press the Start Update button.
The MMB copies the file, checks format and integrity and starts the flash procedure if no error occurred. In the
case of errors the user will be informed by a status message in the same way as in the flash procedure via
TFTP.
For the duration of the flash process Do not remove USB Device from the System! Flash in Progress is displayed.
ServerView BX900 Management Blade
appears in the grey bar at the top.
MMB firmware update via USB
51
