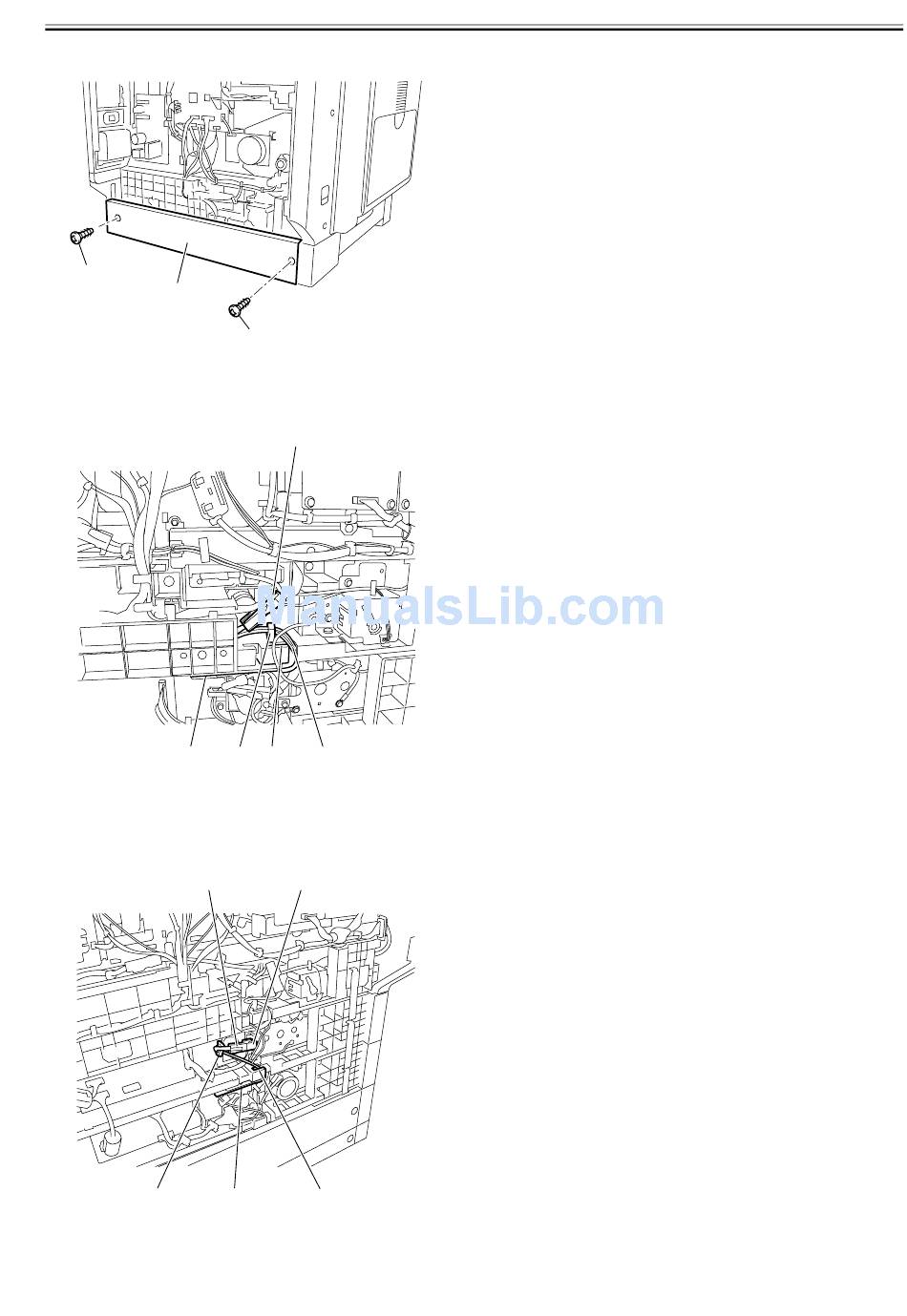

9) Remove the cassette rear cover [1].
- Screws [2], 2 pcs.
[2]
[1]
9) Install the wire saddle (large) [2], lace the cassette heater harness [3]
through the harness guide [4] and wire saddle (large) [2], and then con-
nect the connector of the cassette heater harness to the connector [5].
[1]
10) When attaching the cassette heater to the second or subsequent optional
cassette, perform step 11 after attaching the cassette heater.
11) Install the wire saddle (large) [2], lace the cassette heater harness [3]
through the harness guide [4] and wire saddle (large) [2], and then con-
nect the connector of the cassette heater harness to the connector [5].
[3]
[2]
[2]
F-2-92
[5]
[2]
[4]
[3]
F-2-93
[5]
[1]
[4]
F-2-94
12) Attach the rear covers of the host machine and cassette.
- Screws, 4 pcs. (Host machine rear cover)
- Screws, 2 pcs. (Cassette rear cover)
13) Turn on the host machine.
14) Turn on the heater switch and check that the cassette heater is powered.
Chapter 2
2-27
