Chapter 7

7.1.2 Locations of Main Units

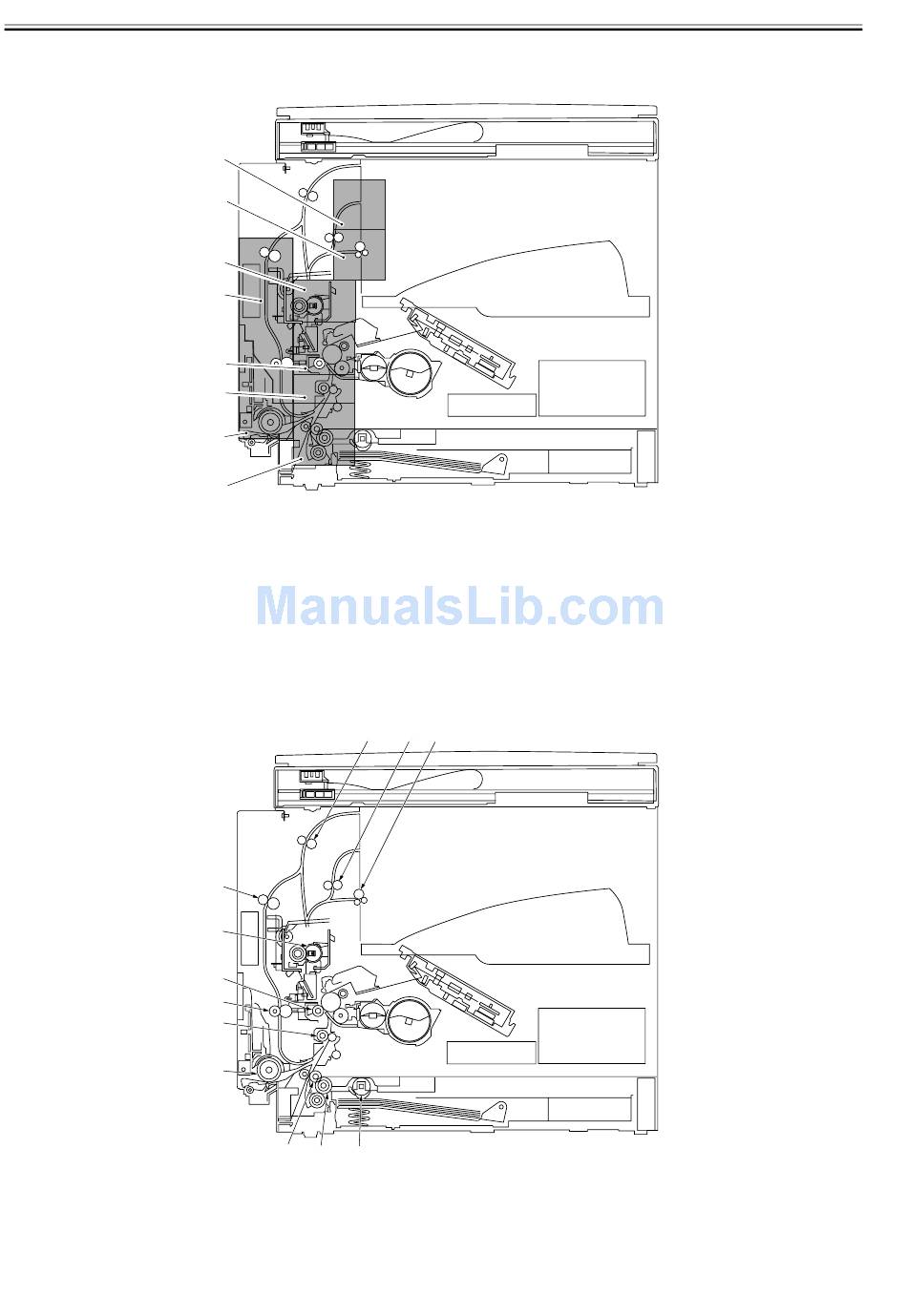

Locations of main units of the pickup/feeding system are shown blow.
[1] Pickup assembly
[2] Manual feed pickup assembly
[3] Registration roller
[4] Transfer assembly
[5] Duplex paper feed assembly (option *1)
[6] Fixing assembly
[7] First delivery assembly
[8] Second delivery assembly (option *2)
*1. There are models of the standard equipment.
*2. Inner 2way tray-E2

7.1.3 Roller Layout Drawing

The layout of the rollers used in the pickup/feeding system is shown below.
[1] Pickup roller
[2] Cassette pickup roller
[3] Feed roller 1
[4] Multi pickup roller
[5] Registration roller
[6] Duplex paper feed roller 3
7-2
]
[ 8
[7]
[6]
[5]
[4]
[3]
[2]
[1]
[10]
[9]
[8]
[7]
[6]
[5]
[4]
[3]
[2]
[1]
F-7-1
[11]
[12]
F-7-2
0017-4364
0017-4367
