Connectors And Leds - NTI SPLITMUX Series SPLITMUX-HD-4RT Installation And Operation Manual

SPLITMUX Quad Screen Video Splitter

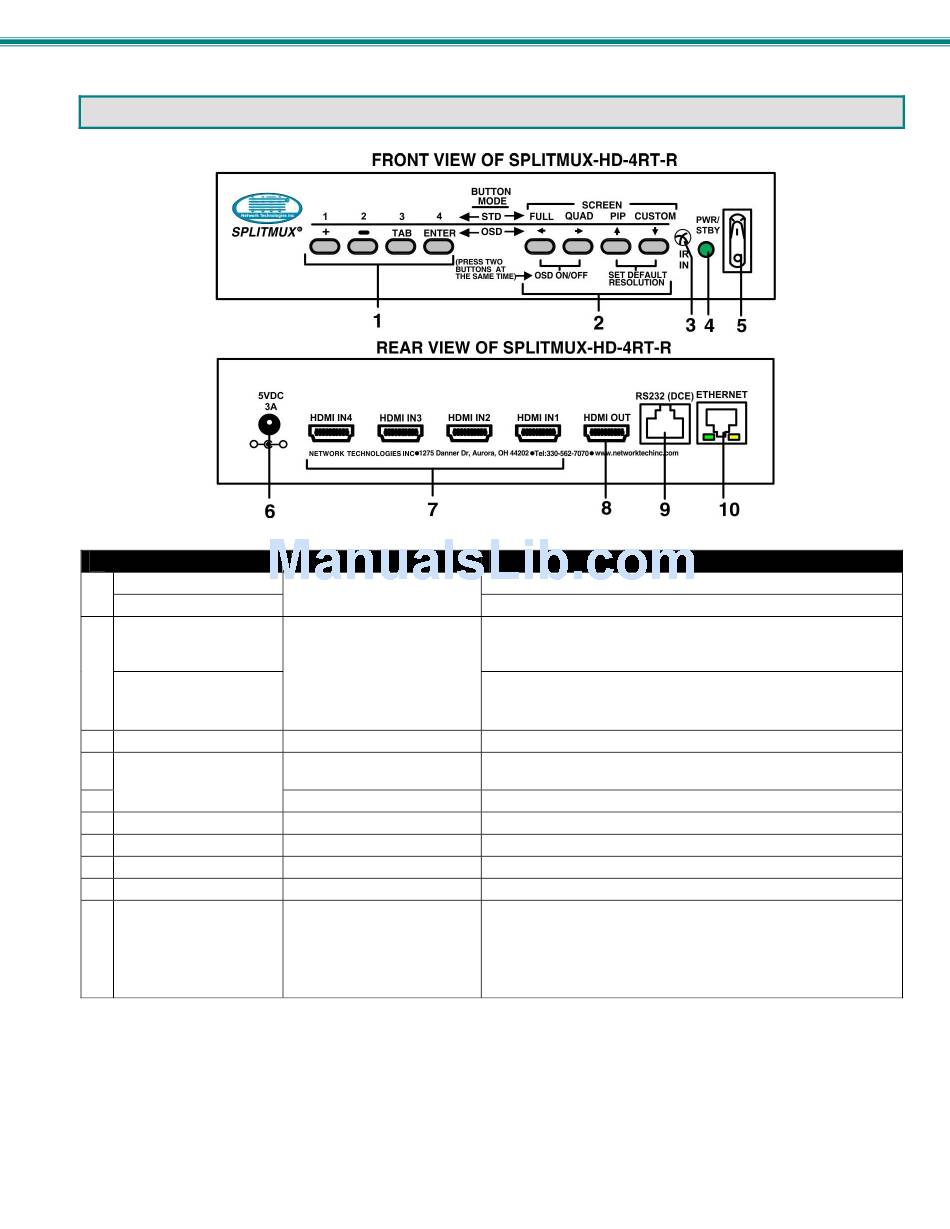

CONNECTORS AND LEDS

# LABEL
1 1-4
+, -, TAB, ENTER
2 SCREEN-
FULL,QUAD,PIP,MODE
(Display Modes)
Directional Arrows
3 IR IN
4 PWR/STBY
5
6 5VDC 3A
7 HDMI IN1-4
8 HDMI OUT
9 RS232 (DCE)
10 ETHERNET
CONNECTOR/LED
Pushbuttons
Pushbuttons
IR Sensor
Green/Red LED
Rocker switch
2.1x5.5mm Power Jack
HDMI female connector
HDMI female connector
RJ45 female connector
RJ45 female connector
DESCRIPTION
HDMI Input Selection (Standard Mode)
OSD Menu Navigation (OSD Mode)
For selecting the display mode for image placement on the user's
monitor
Used for OSD Menu Navigation
Also used to toggle the OSD Menu ON/OFF and returning the
SPLITMUX to the default display resolution
Input sensor to receive IR signals from remote control
To indicate when the SPLITMUX is powered ON (Green) or in
Standby (Red)
For switching the SPLITMUX between ON (I) and Standby (O)
For connection of power supply
For connection of HDMI video sources
For connection of cable to HDMI Monitor
For RS232 serial connection of a terminal to control the system
For connection to an Ethernet for remote multi-user control
• Yellow LED- indicates 100Base-T activity when illuminated,
10Base-T activity when dark
• Green LED – illuminated when Ethernet link is present,
strobing indicates activity on the Ethernet port
3
