SPLITMUX Quad Screen Video Splitter
The IP address shown here
is only used when the IPv4
mode is set to "STATIC".
To view the IP address when
the mode is set to "DHCP",
go to the "System Information"
page (page 63).
IP Settings
Mode
IP Address
Subnet Mask
Default Gateway
Primary DNS Address
Alternate DNS Address
Note: If you select "DHCP" for the mode, make sure a DHCP server is running on the network the SPLITMUX is
connected to.
Server Settings
Enable Telnet Change to "Enable" to permit access to the SPLITMUX via Telnet
The default is disabled.
Enable HTTP Change to "Enable" to allow access to the SPLITMUX via standard (non-secure) HTTP requests
The default is disabled.
HTTP Port Port to be used for standard HTTP requests (default is 80)
HTTPS Port Port to be used for HTTPS requests (default is 443)
Web Timeout Number of minutes after which idle web users will be logged-out (maximum is 32000, enter 0 to disable
this feature)

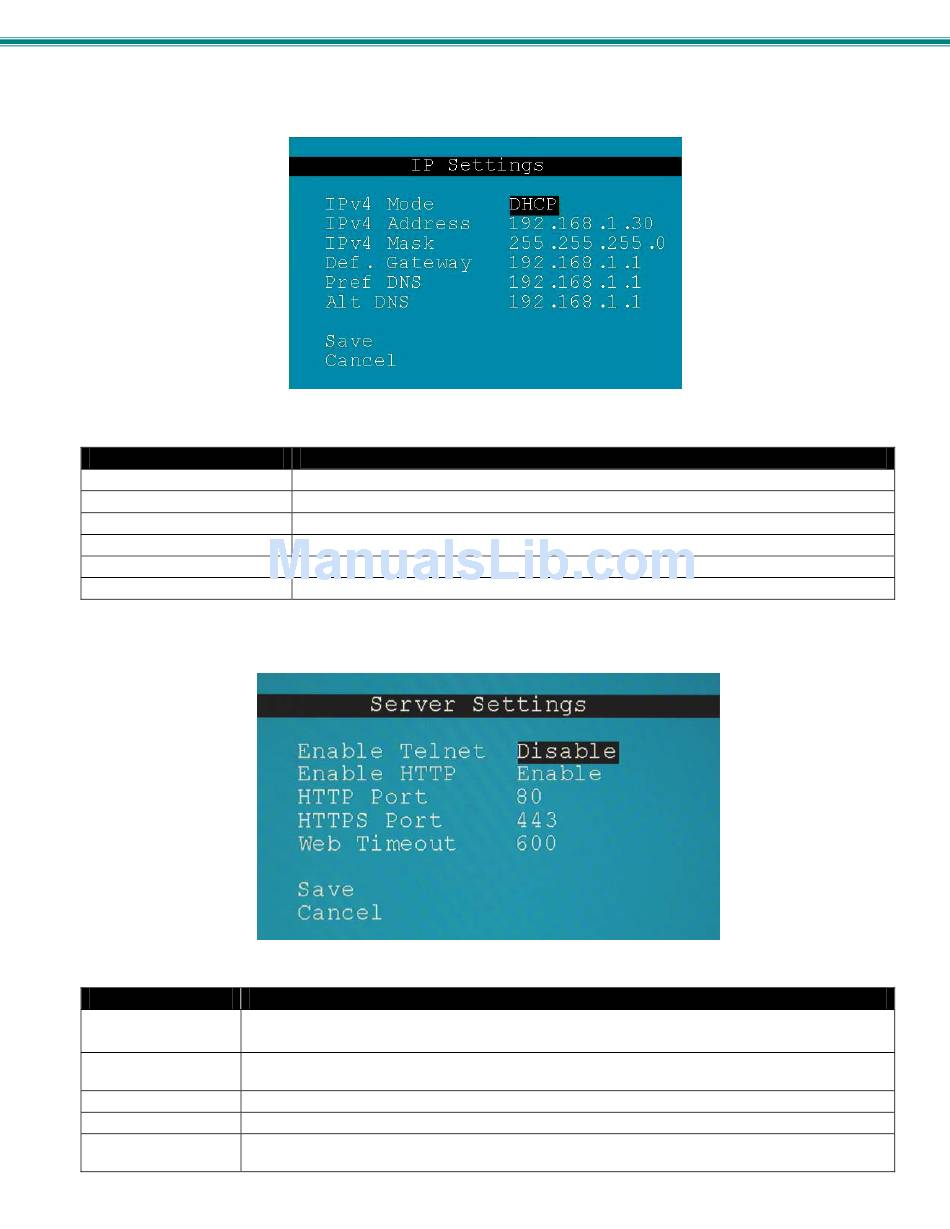

Figure 62- OSD IP Settings

Select the method for acquiring IP Settings- Static (manual), DHCP (automatic) or Disable
Enter valid IPv4 address (for Static Mode) (default is 192.168.1.30)
Enter valid subnet mask (for Static Mode)
Enter valid default gateway (for Static Mode)
Enter preferred name server (for Static Mode)
Enter alternate name server (for Static Mode)

Figure 63- OSD Server Settings
