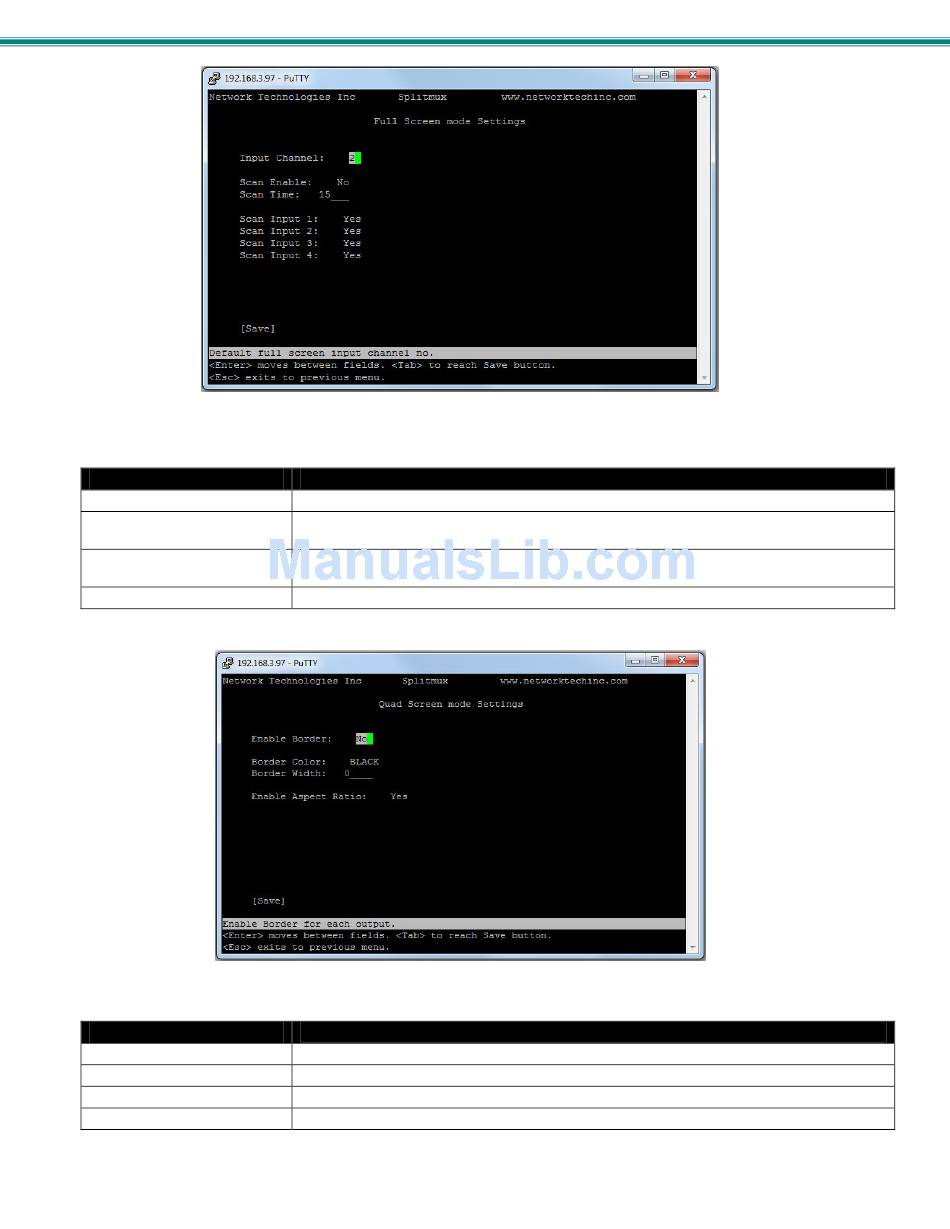

Figure 52- Text Menu- Full Screen Mode Settings

Full Screen Mode Settings
Input Channel
Enable Scan
Scan time
Scan input 1-4
Quad Screen Mode Settings
Enable Border
Border Color
Border Width
Aspect Ratio
Select the input channel assigned to Full Screen
Enable scanning for the full screen input channel- to automatically switch from one channel to
another
Set the dwell time while scanning- the amount of time (in seconds) each channel will appear
at full screen- range is 0-999
Select Yes or No to include input 1, 2, 3 or 4 in the scanning sequence

Figure 53- Text Menu- Quad Mode Settings

Choose whether or not to place a border around each input displayed
Choose the color of the border around each input
Choose the width of the border around each input- from 0-50 pixels
Choose whether or not to maintain the aspect ratio for each displayed image
49
