SPLITMUX Quad Screen Video Splitter
Pip Screen Mode Settings
Active Channel
Enable full screen
Enable aspect ratio
PIP Mode
PIP 1 Input
PIP 2 Input
PIP 3 Input
PIP Horizontal Position
PIP Vertical Position
PIP Size
Enable Scan
Scan Time
Active Scan
Enable Border
Border Color
Border Width

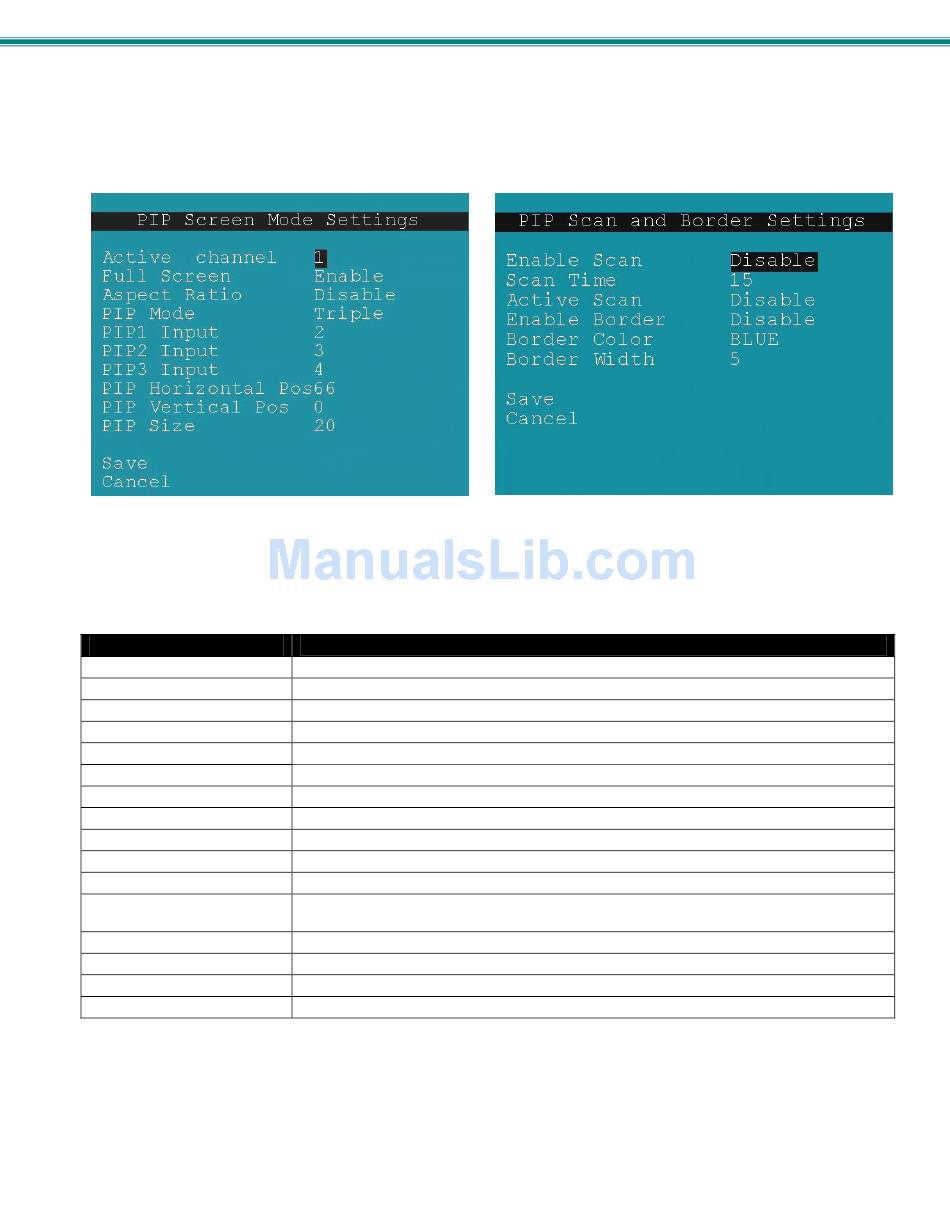

Figure 69- PIP Screen Mode settings

Select which active channel is in full screen mode
Enable/disable active input in full screen mode with overlay
Enable/disable the aspect ratio to be maintained for all displayed images
Select how many PIP images will be displayed, 2, 3 or 4 (one will be at full screen)
Select which input channel will be in PIP upper right position
Select which input channel will be in PIP center position
Select which input channel will be in PIP lower right position
Position of PIP images from the right side of the screen- range is 0-90% of screen width
Position of uppermost PIP from the top of the screen- range is 0-60% of screen height
Size of the PIP image- range is 10-50%
Enable input channel scanning when PIP Mode is set to "Single"
Set the dwell time while scanning- the amount of time (in seconds) each channel will appear in
the single PIP position- range is 0-999
Enable/disable full screen scanning between the inputs while in PIP mode
Place a border around each input displayed
Choose the color of the border around each input
Choose the width of the border around each input- from 0-50 pixels
61
