SPLITMUX Quad Screen Video Splitter
tabs showing hierarchy of configuration

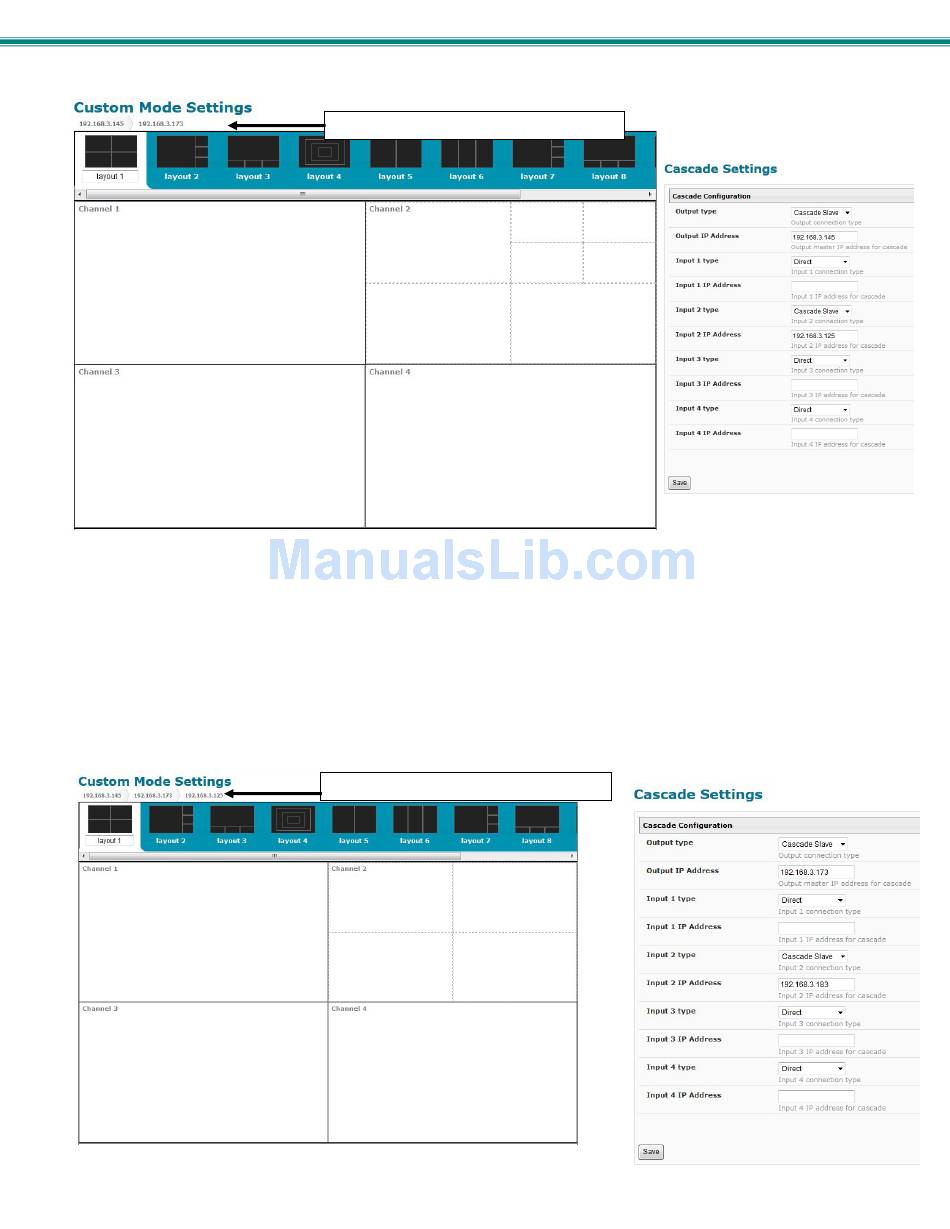

Figure 74- View of cascaded configuration from Slave at IP 192.168.3.173

When looking at a slave unit, the hierarchy will be indicated at the upper left of the layout choices. The leftmost tab is the master,
followed by the nearest connected slave. In Figure 73, it is indicated that two levels of SPLITMUXs are connected through
channel 2 (Input 2). These are, of course, IP 192.168.3.125 and IP 192.168.3. 183.
Any edits made using the web interface configuration menu at this level will directly and only impact the SPLITMUX at IP
192.168.3.173.
To switch back to the configuration of the master, click on the tab labeled "192.168.3.145".
To switch to the next slave in the configuration (IP 192.168.3.125), double-click on channel 2.
tabs showing hierarchy of configuration

Figure 75- View of cascade configuration from Slave at IP 192.168.3.125

67
