USING THE TEXT MENU

The text menu can be reached either by using a serial command through the RS232 port or a Telnet command through an
Ethernet connection. Either way, a text menu with full feature control can be reached by any administrative user.

Text Menu Navigation

•
To move up and down the numbered menu items or toggle through field options, use the arrow keys.
•
To jump from menu item to another quickly, press the numbered key above the QWERTY keys (the numberpad number
keys are not used).
•
To move from menu list to action key (such as "Save" in Figure 35), press <Tab>.
•
To exit an action or menu, press <Esc>.
•
To select a highlighted item or move to another field in a configuration page, press <Enter>.
•
Be sure to Tab to "Save" and press <Enter> when configuration changes are made.
•
To return from "Save" back to a field on the configuration page, press <Tab>.
From a terminal connection to the "RS232" port, enter the command "CF SA" (where SA is the serial address of the
SPLITMUX) and press <Enter>.
From an Ethernet connection through the LAN, enter the Telnet command "CF" (provided you already have a Telnet
connection as described on page 36) and press <Enter>.
You will be presented with a login screen.
root
1. At "Username" type <
nti
2. At "Password" type <
If you are an administrative user, alternatively enter a valid username and password to also access this menu.
Note: User names and passwords are case sensitive. It is important to know what characters must be capitalized and
what characters must not.
> (all lowercase letters) and press <Enter>.
> (all lowercase letters) and press <Enter>.

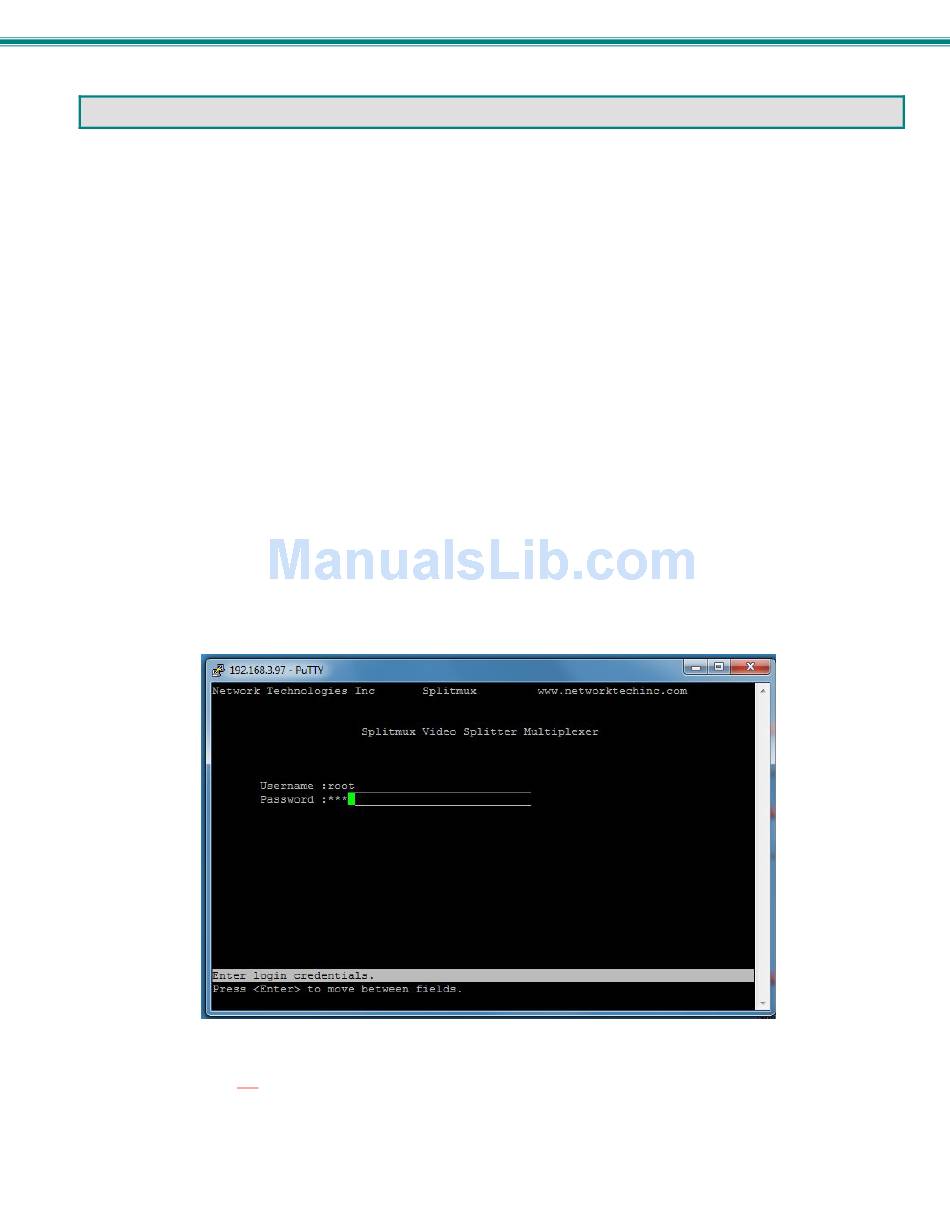

Figure 33- Text Menu- Login screen
