SPLITMUX Quad Screen Video Splitter
OSD Mode
In OSD Mode, the buttons are used to navigate and control the SPLITMUX using the OSD menu.
To bring up the OSD menu,
press the FULL and QUAD buttons at the same time. To exit the OSD menu, press them again.

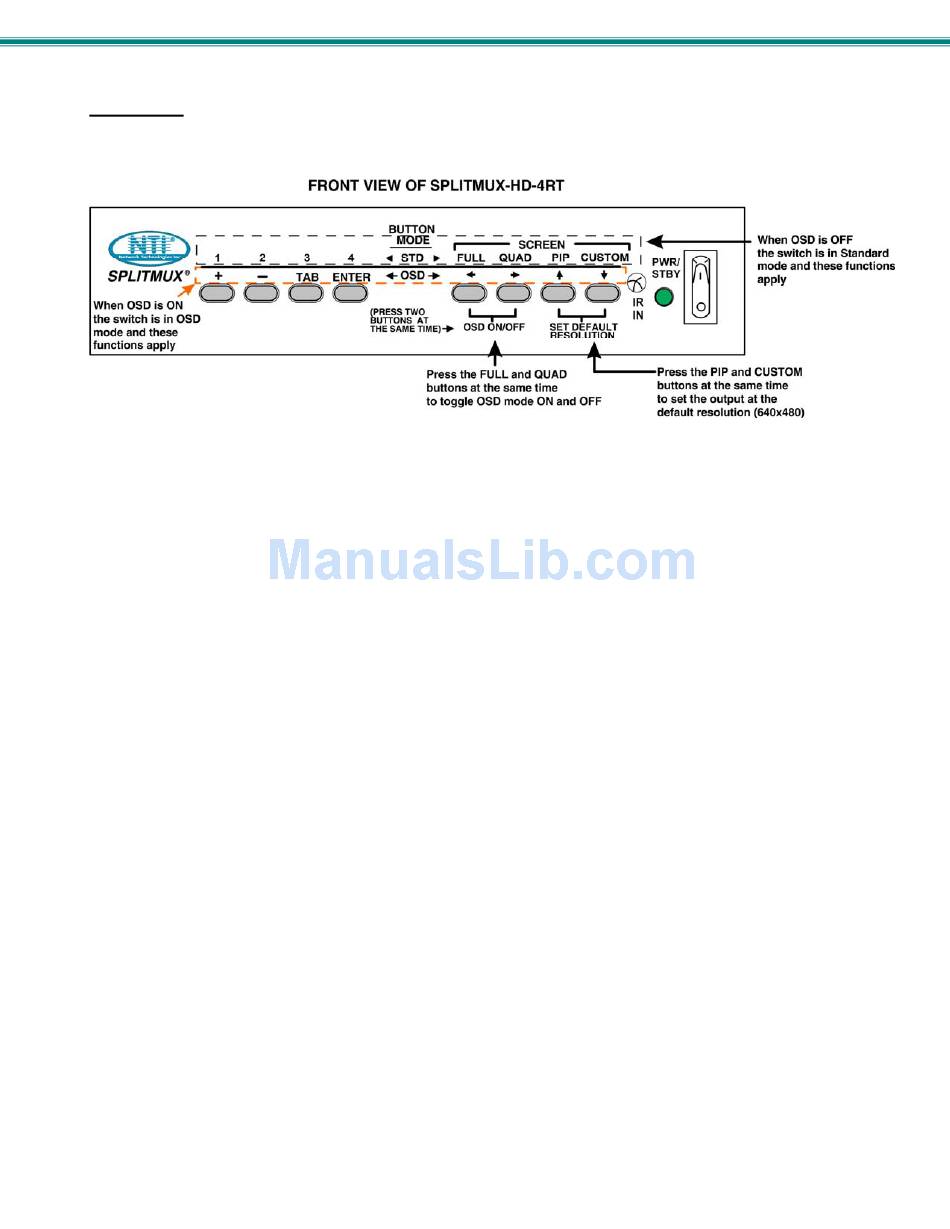

Figure 12- Front Panel Button Functions
Reset Resolution
In the event an incompatible resolution setting is applied to the SPLITMUX, to quickly restore the images of video sources to the
SPLITMUX, press the PIP and CUSTOM buttons at the same time.
This will reset the output to the default resolution of
640x480 @60Hz.
12
