SPLITMUX Quad Screen Video Splitter
Custom Screen Mode
Settings Input x (1-4)
Enable Input
Enable Border for Input
Border color for Input
Border width for Input
Custom Input Width
Custom Input Height
Custom Input Horiz Position
Custom Input Vert Position

Load/Save Layout

Select Load/Save Layout from the main menu (Main Menu—>8) to save or recall a display configuration of video sources being
viewed.

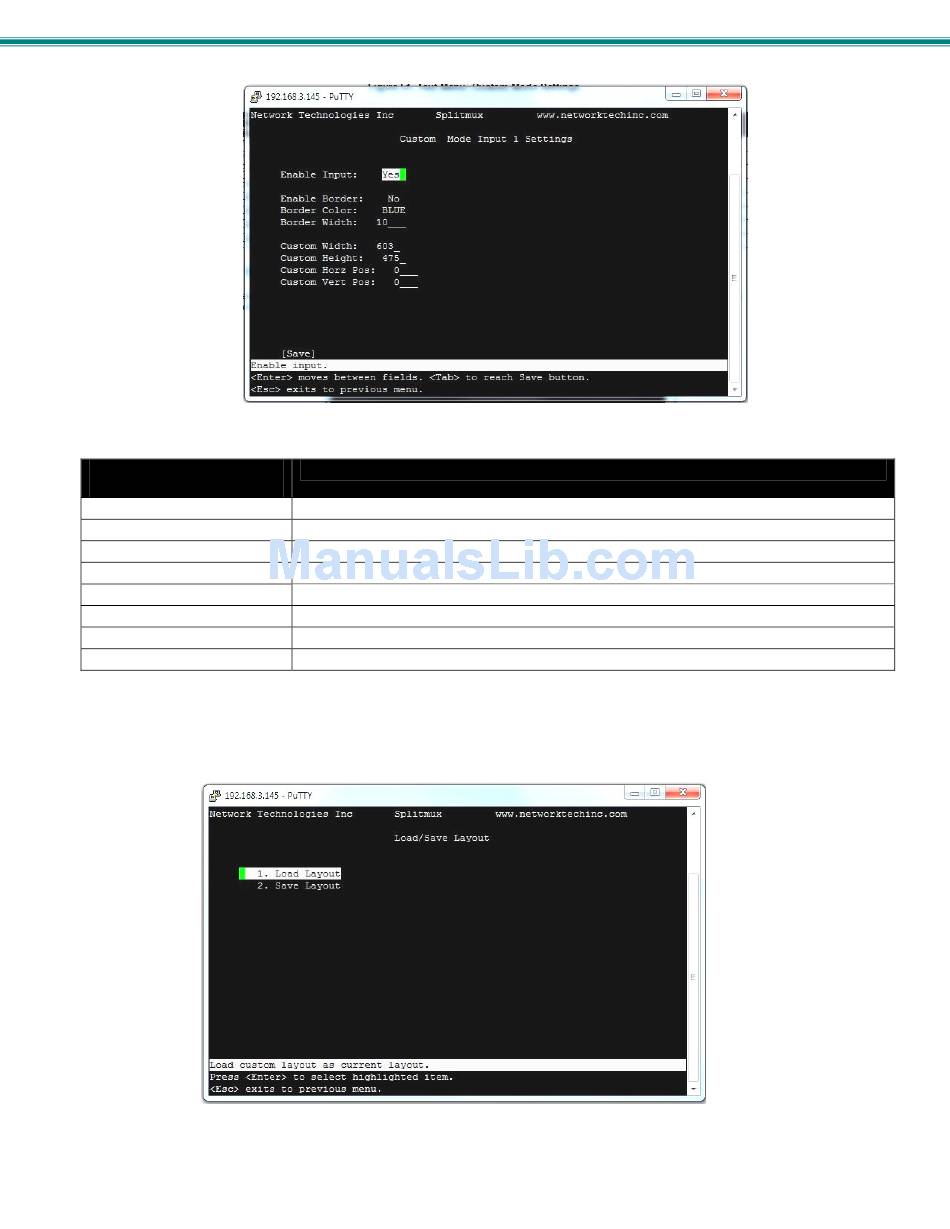

Figure 55- Text Menu- Custom Mode Settings

Enter a checkmark to enable the display of the input
Place a border around each input displayed
Choose the color of the border around each input
Choose the width of the border around each input- from 0-50 pixels
Select the width of the input in pixels (up to 1920)
Select the height of the input in pixels (up to 1080)
Enter the horizontal position of the input from the right in number of pixels
Enter the vertical position of the input from the top in number of pixels

Figure 56- Text Menu- Load/Save Layout

51
