USING OSD

In OSD Mode, the front panel buttons are used to navigate and control the SPLITMUX using an on screen display (OSD) menu.
To bring up the OSD menu, press the FULL and QUAD buttons at the same time. To exit the OSD menu, press them again.

Navigating the OSD menus

While the OSD menu is on the display, the front panel buttons have the following functions:
The "ENTER" button is used to execute a choice, like pressing the <Enter> key on the keyboard.
The "TAB" button is used to move from one field to another in the menus.
The "+" button is used to advance the field to another option, or increase a numeric value by one.
The "–" button is used to decrement the field to another option, or decrease a numeric value by one.
The left, right, up and down arrows are only used in the OSD position screen to move the OSD screen to a different location on
the display. As an arrow is pressed, the value of the horizontal or vertical position will increase or decrease as the OSD menu
also moves in response to the button press.
TAB to "Save" and press ENTER to record your changes in the SPLITMUX.
TAB to "Cancel" and press ENTER to ignore and cancel any changes that were made

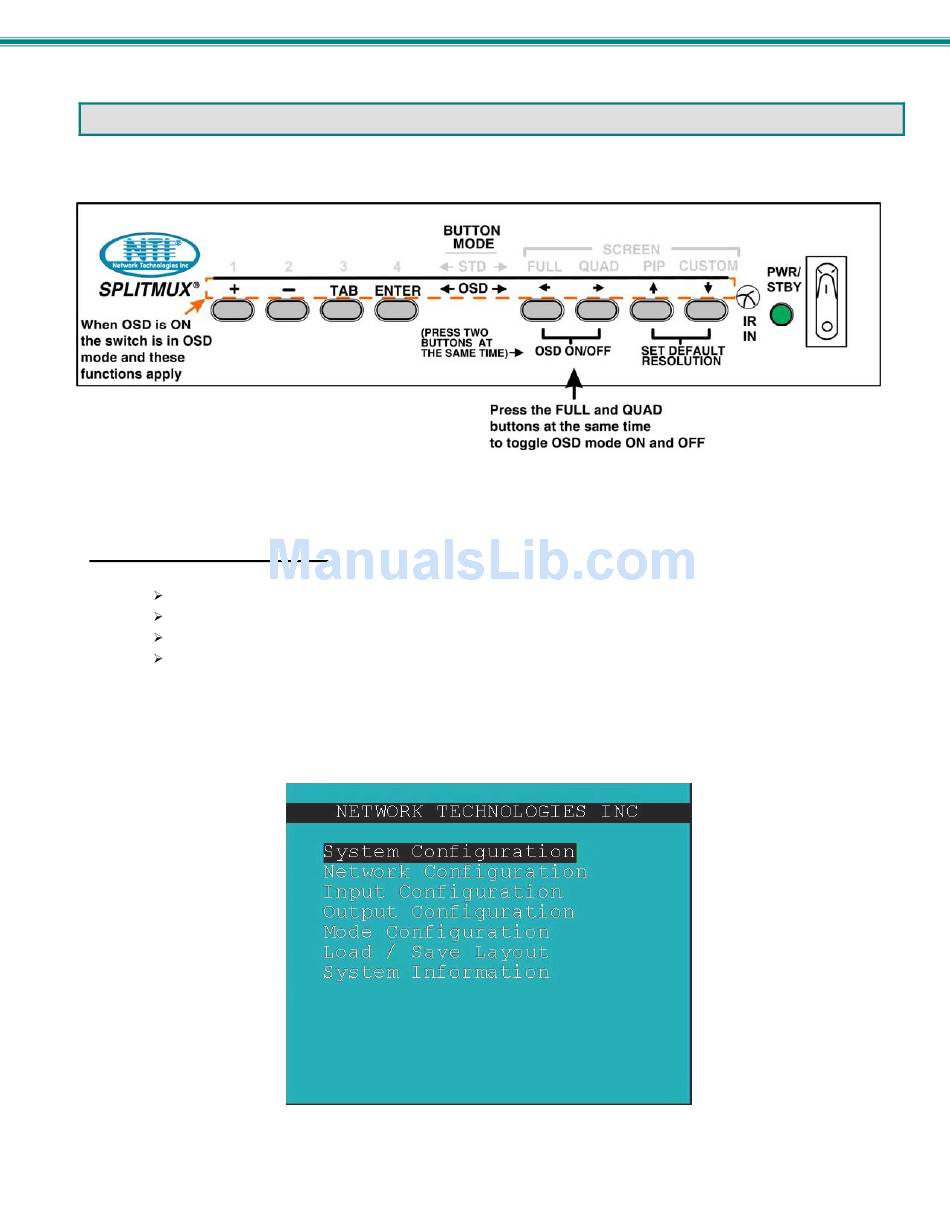

Figure 58- Front Panel Button OSD Functions

Figure 59- The OSD Menu
