SPLITMUX Quad Screen Video Splitter
The Main Menu is broken into 10 categories:
Function Description

Current Mode

Sets the current viewing mode of the SPLITMUX
System Configuration Configure system settings
Network Configuration Configure network settings
User Configuration Configure user access settings
Input Configuration Configure which inputs will be viewed
Output Configuration Configure how the images will appear on the display
Mode Configuration Configure how each mode will behave
Load/Save Layout Choose to save custom layout (up to 10 different layouts) or load one of saved
custom layouts.
System Information Displays information about the configuration of the SPLITMUX
Reboot Enables the user to reboot the SPLITMUX
Current Mode
In the Current Mode screen (Main Menu--> 1), set the active mode of the SPLITMUX. This is the mode the SPLITMUX will be in
if the unit is power-cycled. The selected Current Active Input will be the primary input (i.e. when in PIP mode, this will be the
largest image on the screen at power ON.

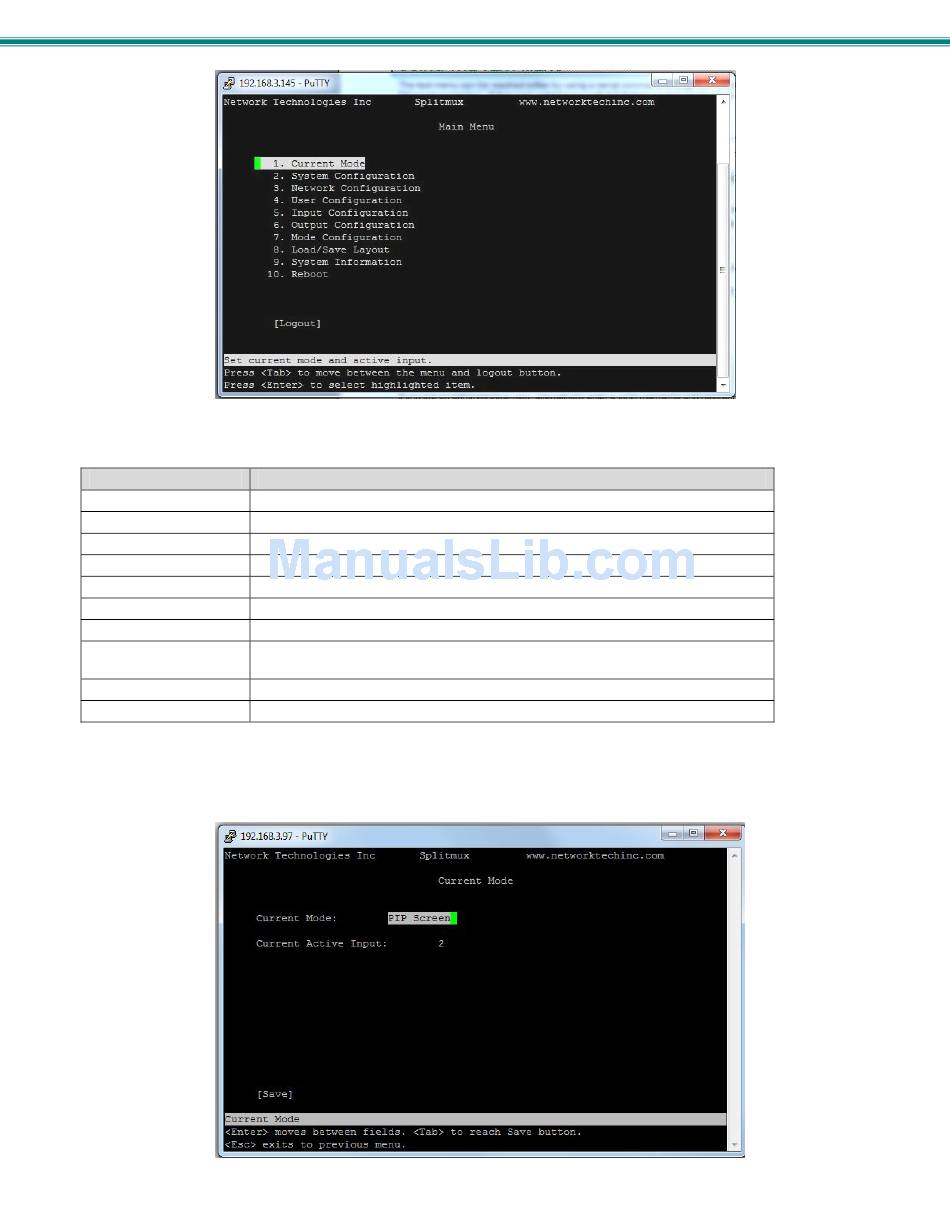

Figure 34- Text Menu-Main Menu

Figure 35- Text Menu-Current Mode Selection

38
