SPLITMUX Quad Screen Video Splitter
System Settings
Unit Settings
Name
Keypad Pin
Serial Port Settings
Baud Rate
Serial Address
OSD Screen Settings
Horiz Offset Position
Vert Offset Position

Network Configuration

The Network Configuration screen is where all network settings are entered.
access the SPLITMUX. Choose between your basic network (IPv4) settings and several miscellaneous server settings.
Description
Unique name for this SPLITMUX to appear on the web interface login page and header of each
web interface page
PIN number that must be entered before OSD mode can be accessed to change settings- 4
digits using buttons 1-4. 0000 (default) = No PIN required
Baud rate for RS232 commands- select a value between 1200 and 115200 bps
Serial Address for RS232 commands and for the IR Remote- select value from 1-15
OSD Horizontal Offset from left (0-70%) Use Arrow Buttons to move
OSD Horizontal Offset from top (0-70%) Use Arrow Buttons to move

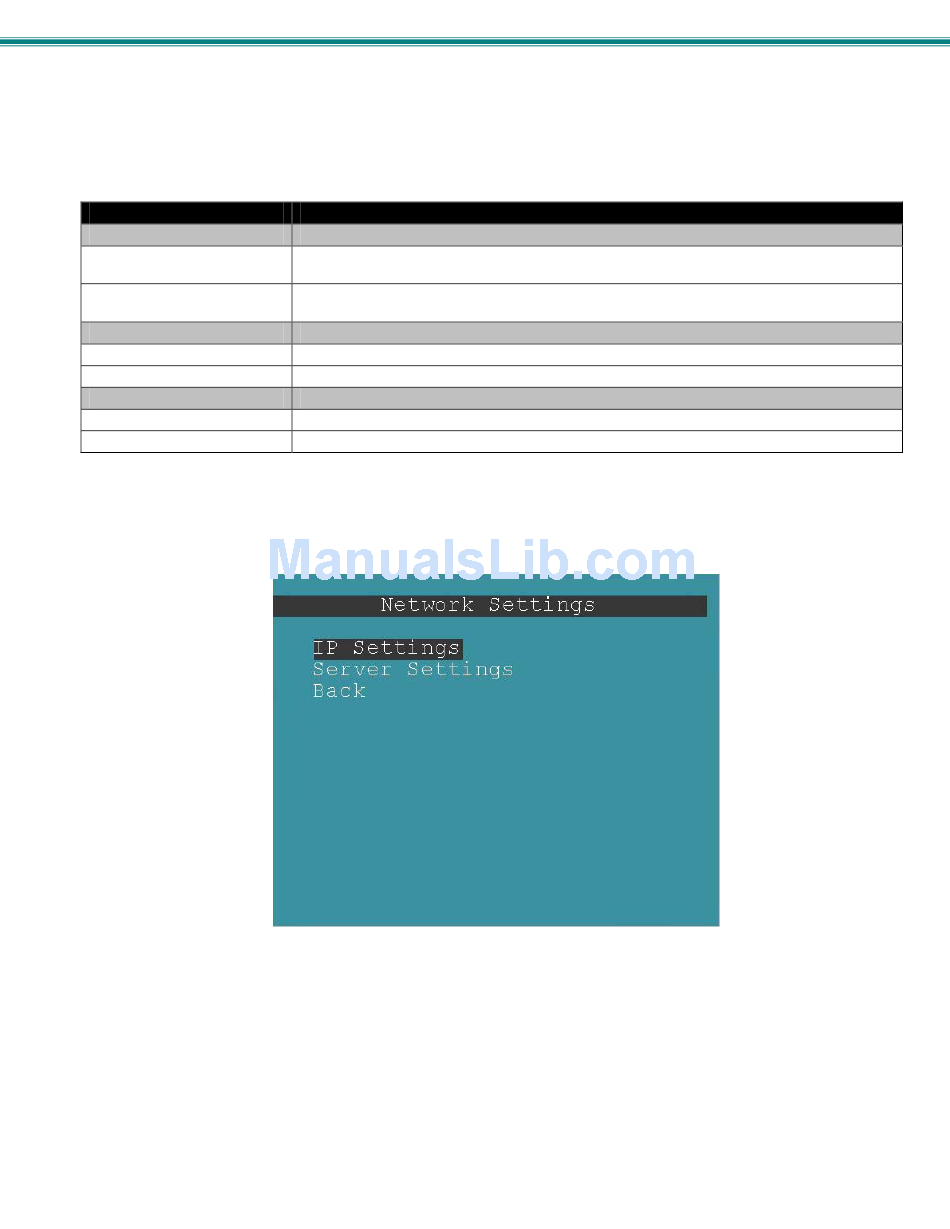

Figure 61- OSD Network Configuration

These settings determine how you will remotely
55
