SPLITMUX Quad Screen Video Splitter

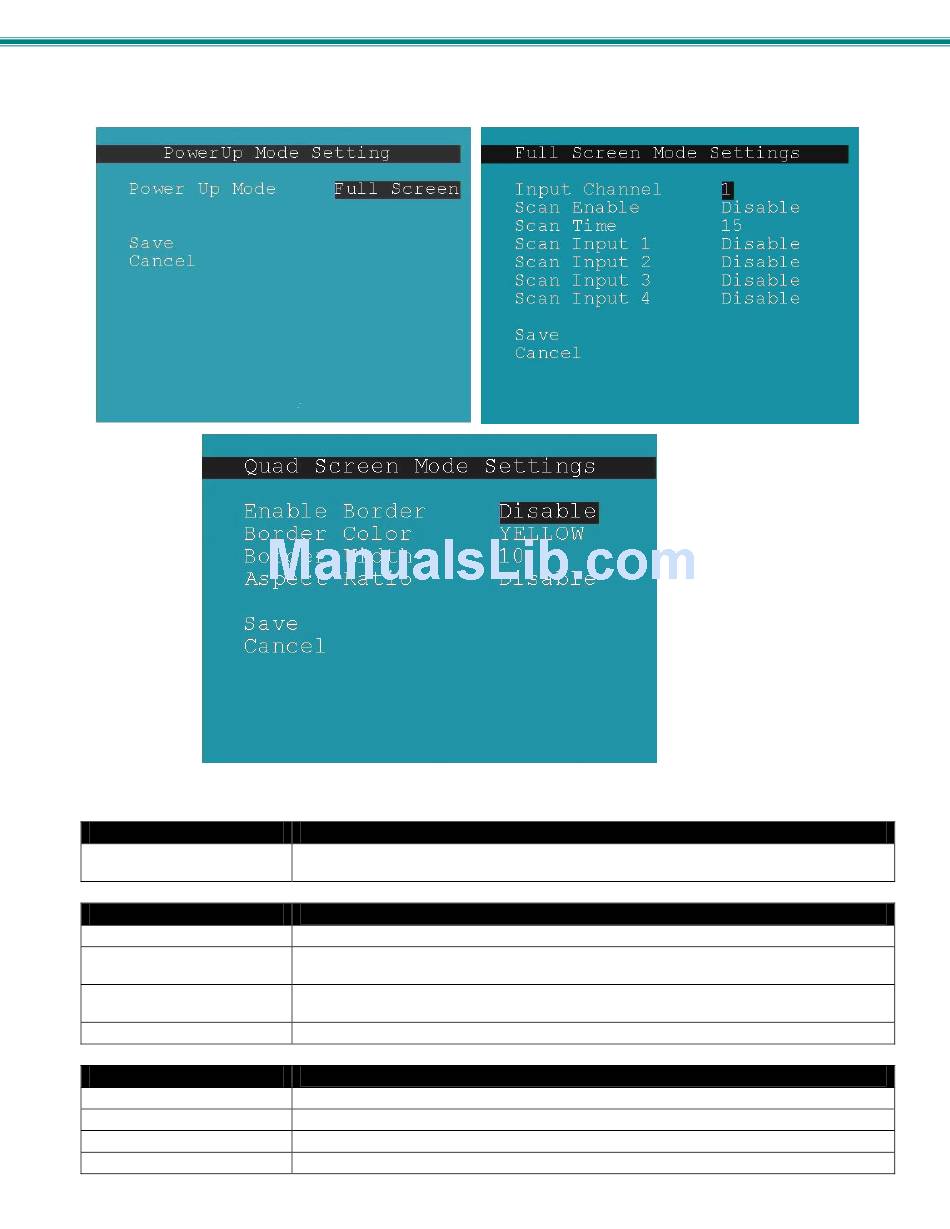

Figure 68- Default, Full Screen and Quad Screen Settings

Power Up Mode Setting
Power Up Mode
Full Screen Mode Settings
Input Channel
Enable Scan
Scan time
Scan input 1-4
Quad Screen Mode Settings
Enable Border
Border Color
Border Width
Aspect Ratio
Choose the default mode the SPLITMUX will be in when powered ON. Choose from Full
screen , PiP screen, Quad screen or Custom screen
Select the input channel assigned to Full Screen
Enable scanning for the full screen input channel- to automatically switch from one channel to
another
Set the dwell time while scanning- the amount of time (in seconds) each channel will appear
at full screen- range is 0-999
Select Enable or Disable to include input 1, 2, 3 or 4 in the scanning sequence
Choose whether or not to place a border around each input displayed
Choose the color of the border around each input
Choose the width of the border around each input (0-50 pixels)
Choose whether or not to maintain the aspect ratio for each displayed image
60
