With a successful log in, a screen similar to the following will appear:
The initial page is the Mode page where the current operating mode of the SPLITMUX is selected and the input channel to be
displayed in Full Screen mode is assigned. A menu to the left is presented to administrative users with access to all pages used
to manage the functions of the SPLITMUX.
indicates which input will pass audio through to the output (provided the audio mode for each input is set to Automatic (page 21).
Function Description
MODE Select the current operating mode and main input channel
ADMINISTRATION Configure all network and multi-user access settings (page 17)
LOGOUT Log the user out of the SPLITMUX web interface
SUPPORT Links for downloading a manual or firmware upgrades
REBOOT Enables user to reboot the SPLITMUX using the web interface
A non-administrative user will only have access to select the current mode or to the support links.

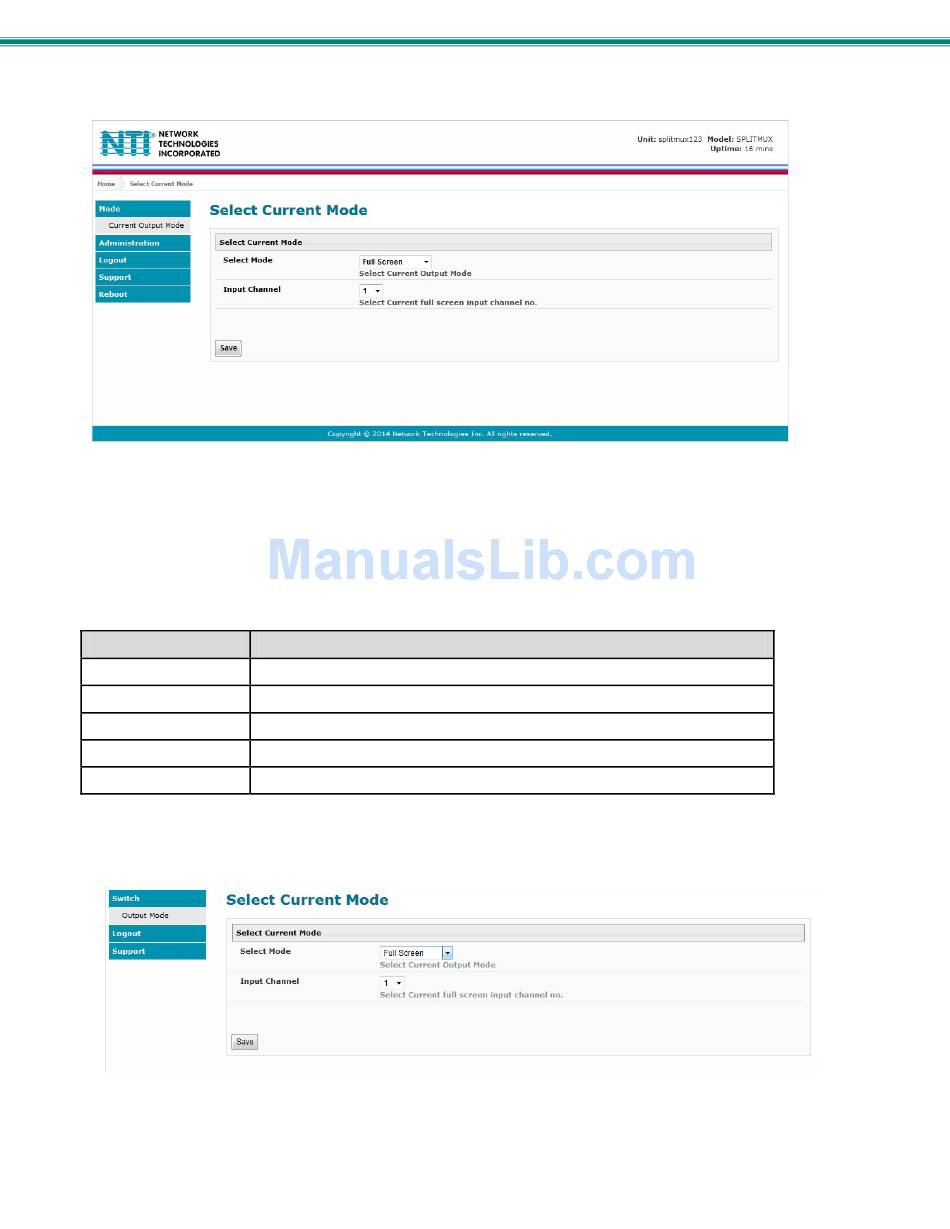

Figure 15- Initial page- Administrator

When the selected mode is Quad, PIP or Custom the Input Channel selected

Figure 16- Initial page- Non-Admin User
