SPLITMUX Quad Screen Video Splitter

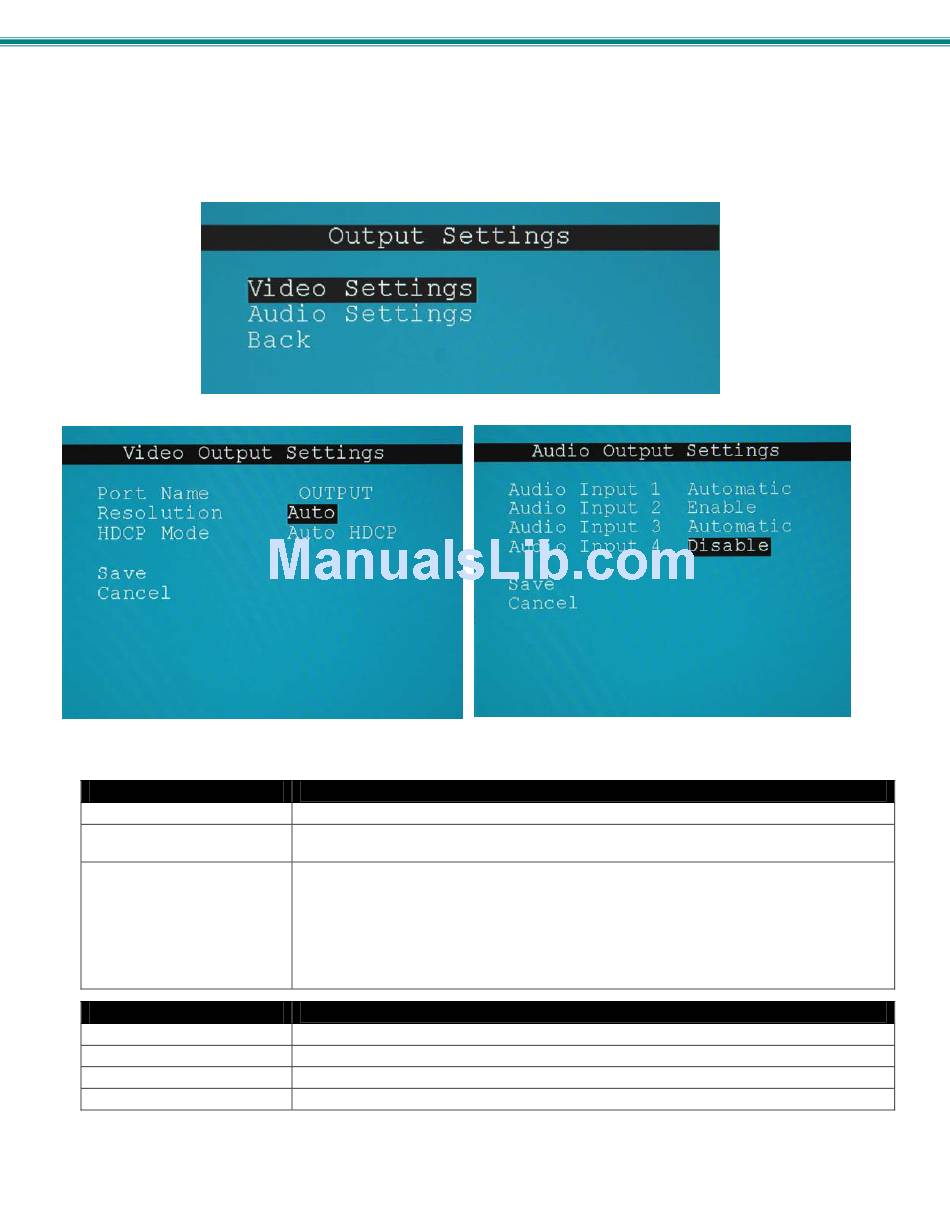

Output Configuration

The Output Configuration determines how the inputs will be viewed on the display. From this menu you can also select the Audio

Output Configuration which will provide settings for how the audio from the inputs is managed.

Video Output Settings

Output Port Name

Output resolution

HDCP Mode

Audio Output Settings

Input 1 Audio Mode

Input 2 Audio Mode

Input 3 Audio Mode

Input 4 Audio Mode

When Audio Mode is enabled, the audio will come through any time the input signal is present (whether the video is enabled or

not)

When Audio Mode is disabled, no audio will be heard from that input.

Enter a port name to associate with the display (optional)

Select the output resolution to send to the display (options shown on next page) or select Auto

to have it choose from the EDID table.

Choose between:

Force HDCP- Video is encrypted whether the source is encrypted or not

Auto HDCP- Video to all ports is encrypted as long as at least one source is encrypted,

otherwise, none are encrypted.

Disable HDCP- Encrypted video from a source is not passed through at all, only non-

encrypted video is allowed to pass through

Select the audio mode for the Input- between enabled/disabled/automatic
