SPLITMUX Quad Screen Video Splitter
Administration- Output Settings
Indicates no audio
at source
Video Output Configuration
Output Port Name
Output resolution
HDCP Mode
Colors show input
volume from source
Arrows indicate output
volume through SPLITMUX

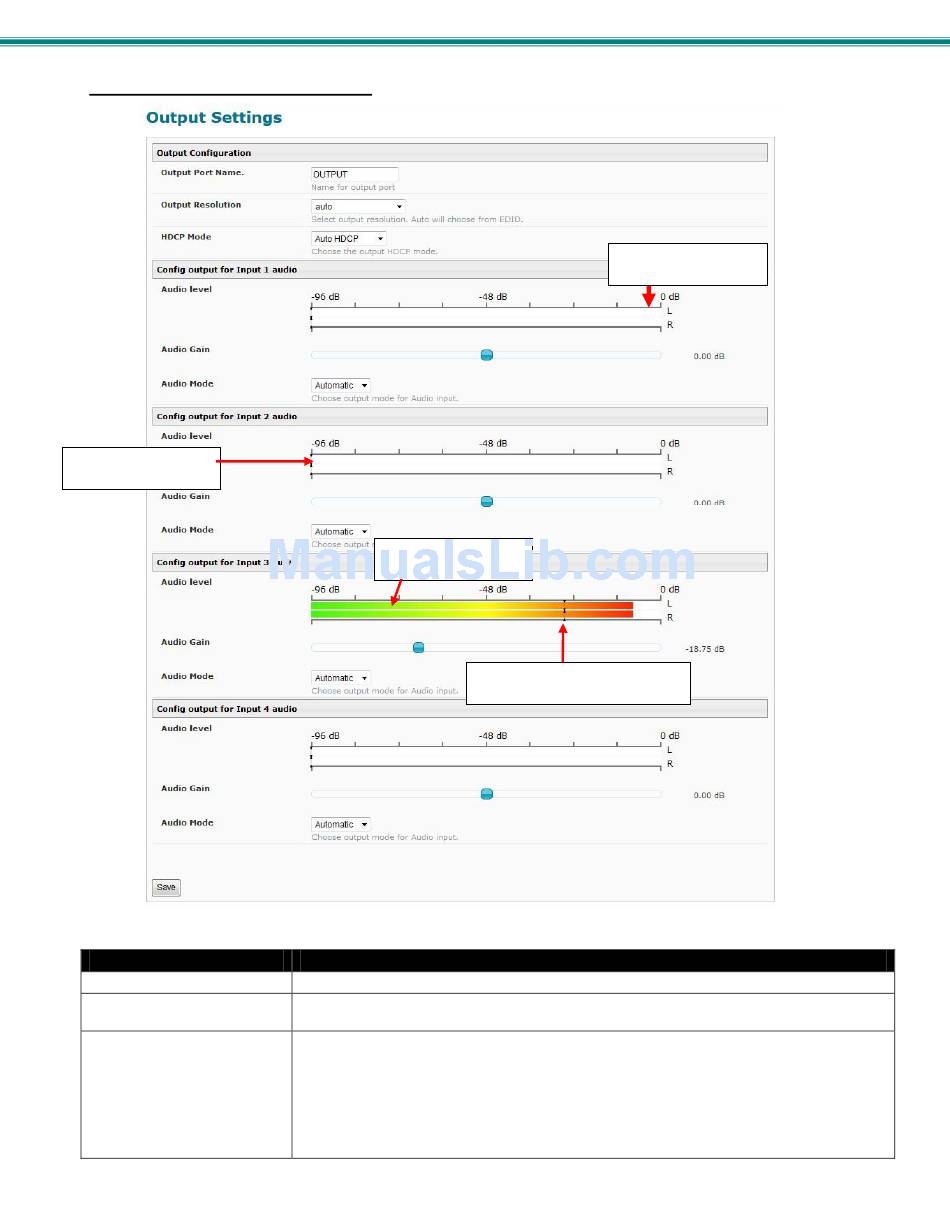

Figure 20- Output Settings
Description
Enter a port name to associate with the display
Select the output resolution to send to the display or select "Auto" to have it choose from the
EDID table. (see table below for resolutions to choose from)
Choose between:
Force HDCP- Video is encrypted whether the source is encrypted or not
Auto HDCP- Video to all ports is encrypted as long as at least one source is encrypted,
otherwise, none are encrypted.
Disable HDCP- Encrypted video from a source is not passed through at all, only non-
encrypted video is allowed to pass through
Maximum
recommended level
20
