SPLITMUX Quad Screen Video Splitter

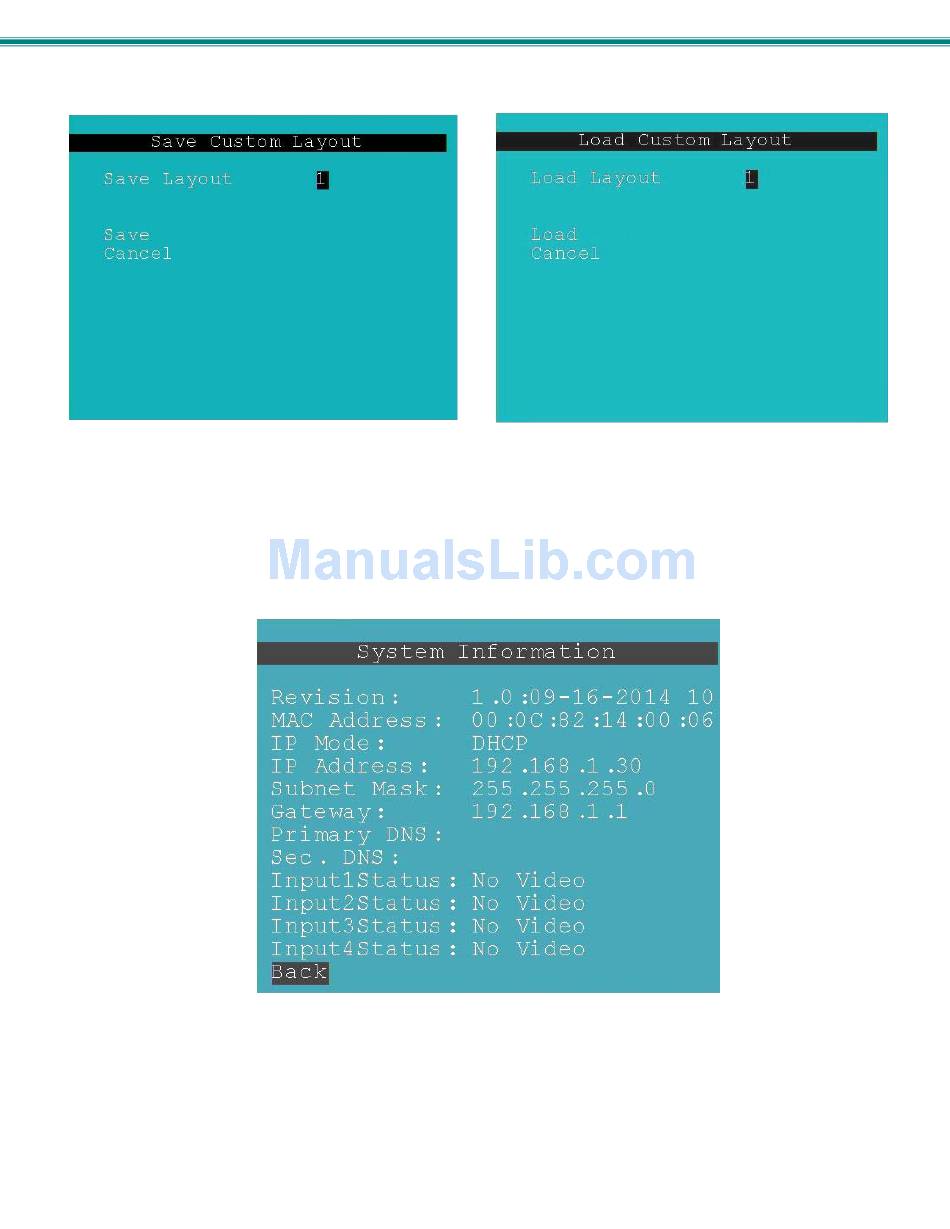

Figure 71- Save or Load a Custom Layout
Up to 10 custom layouts can be saved and re-loaded as needed.
System Information
Select System Information from the main menu to view the current network settings, MAC address, and port status.
This is particularly
helpful when the
SPLITMUX is in DHCP
mode with a server-
assigned IP address.
Figure 72- OSD- System Information Page
63
