SPLITMUX Quad Screen Video Splitter

EXAMPLE OF CASCADED CONFIGURATION

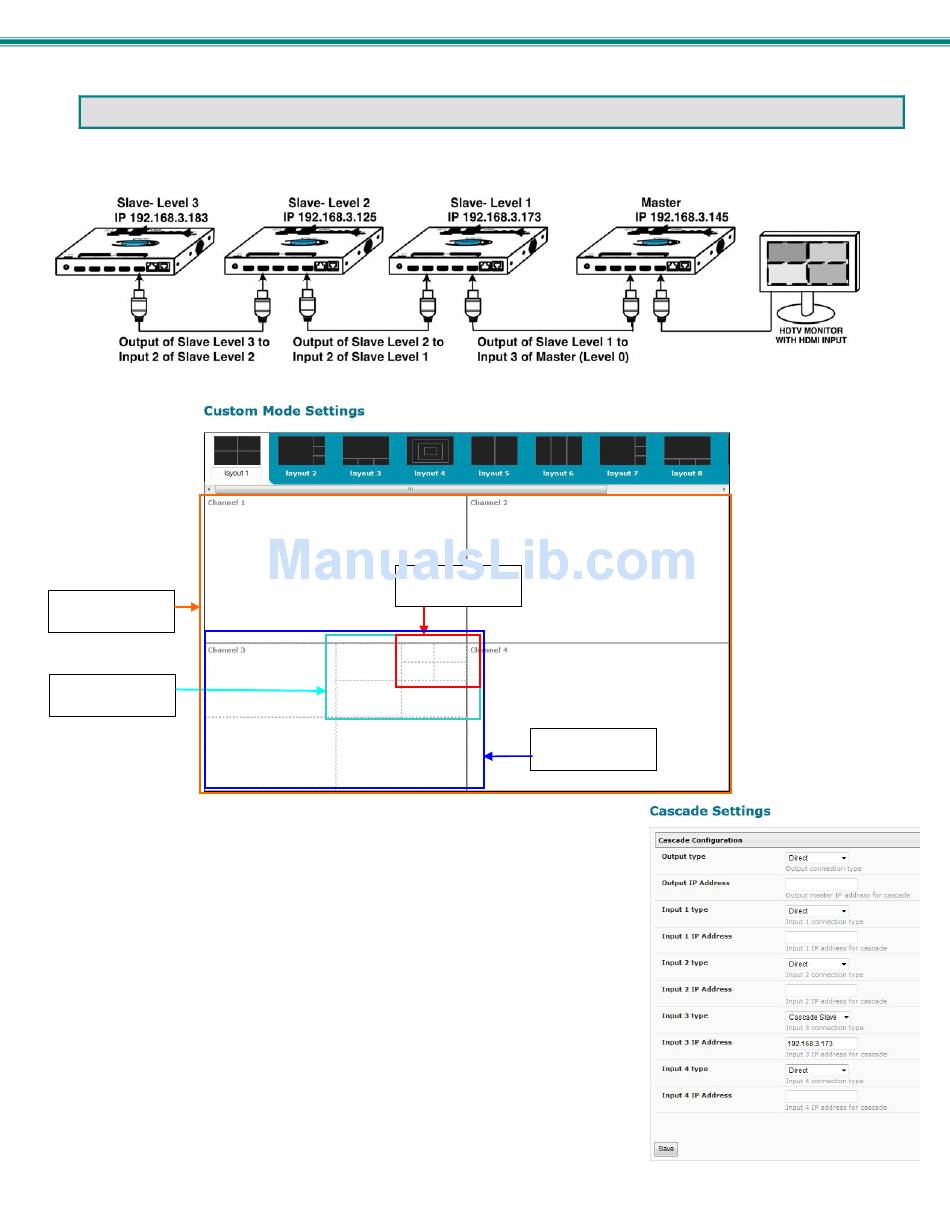

In the example below, 4 SPLITMUXs are connected in a cascaded configuration.
IP
192.168.3.145
IP
192.168.3.125

Figure 73- View of cascaded configuration from Master

The Custom Mode Settings page provides a view of the combined custom mode
settings of the configuration.
connected. In order to make edits to the configuration of slave units, either change
the IP address in the URL bar or double-click on the channel where slave units are
indicated.
In Cascade Settings (image right), the slave connected to Input 3 is indicated. All other
connections are direct, including the Output since on this SPLITMUX the output is
connected to the display.
In this case, double-click on channel 3 to switch to the configuration of the SPLITMUX
at IP 192.168.3.173.
IP
192.168.3.183
Dotted lines indicate input layouts of slave units
IP
192.168.3.173
66
