SPLITMUX Quad Screen Video Splitter

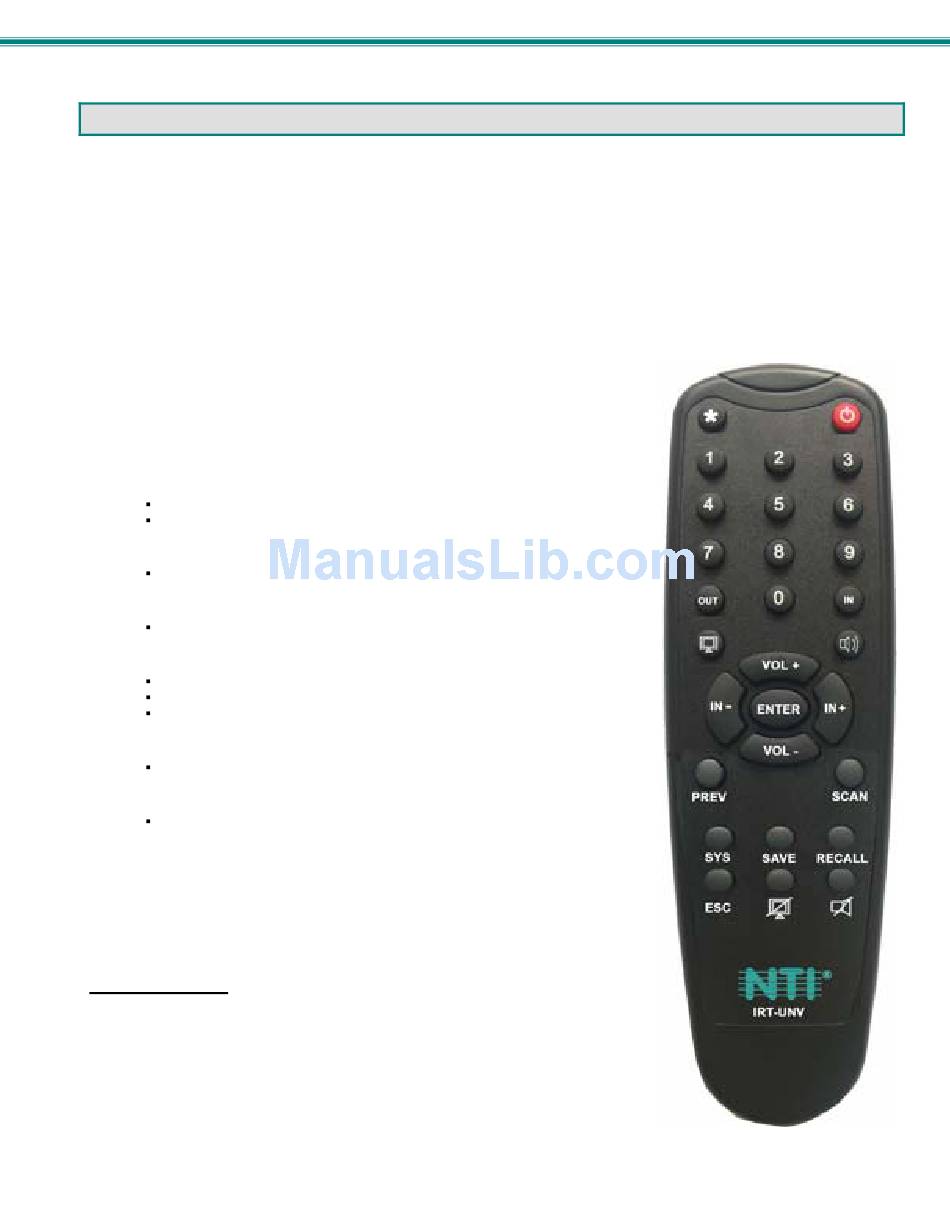

INFRARED REMOTE CONTROL

The IRT-UNV Infrared Remote Control allows the user to remotely control up to 15 NTI SPLITMUX-HD-4RT switches, providing
the ability to control connections.

Materials

Materials supplied with the IRT-UNV
•
NTI IRT-UNV Infrared Remote Control
•
2- AAA Batteries (installed)

Buttons

The IRT-UNV Infrared Remote Control user interface consists of a keypad with
29 buttons. The buttons used for the SPLITMUX have the following functions:
•
Numerical Values (1-4)
Selects port numbers (for IN)
Select mode to switch to
•
IN
Pressed to indicate an input port selection
•
OUT
Pressed to initiate change of mode
•
SYS
Pressed to select the desired SPLITMUX to be controlled
Only used when controlling multiple systems
Must be followed by a system number: 1-15
•
SAVE
Pressed to save a configuration of channels as viewed on the display
•
RECALL
Pressed to recall and restore a configuration of channels previously
viewed on the display

Operation

Operation of the IRT-UNV is intuitive. The number of button presses required
to complete any operation is kept to a minimum. This is accomplished using
intelligent software within the NTI SPLITMUX.

Changing Ports

To change the Active port (FULL screen mode),
press <IN>, then the port number (1-4).
To change modes,
For Full Screen Mode
For Quad Screen Mode
For PIP Screen Mode
For Custom Screen Mode press <OUT>, then <4>
:
press <OUT>, then <1>
press <OUIT>, then <2>
press <OUT>, then <3>
