Administration- Custom Settings; Figure 24- Custom Screen Mode Settings - NTI SPLITMUX Series SPLITMUX-HD-4RT Installation And Operation Manual

SPLITMUX Quad Screen Video Splitter

Administration- Custom Settings

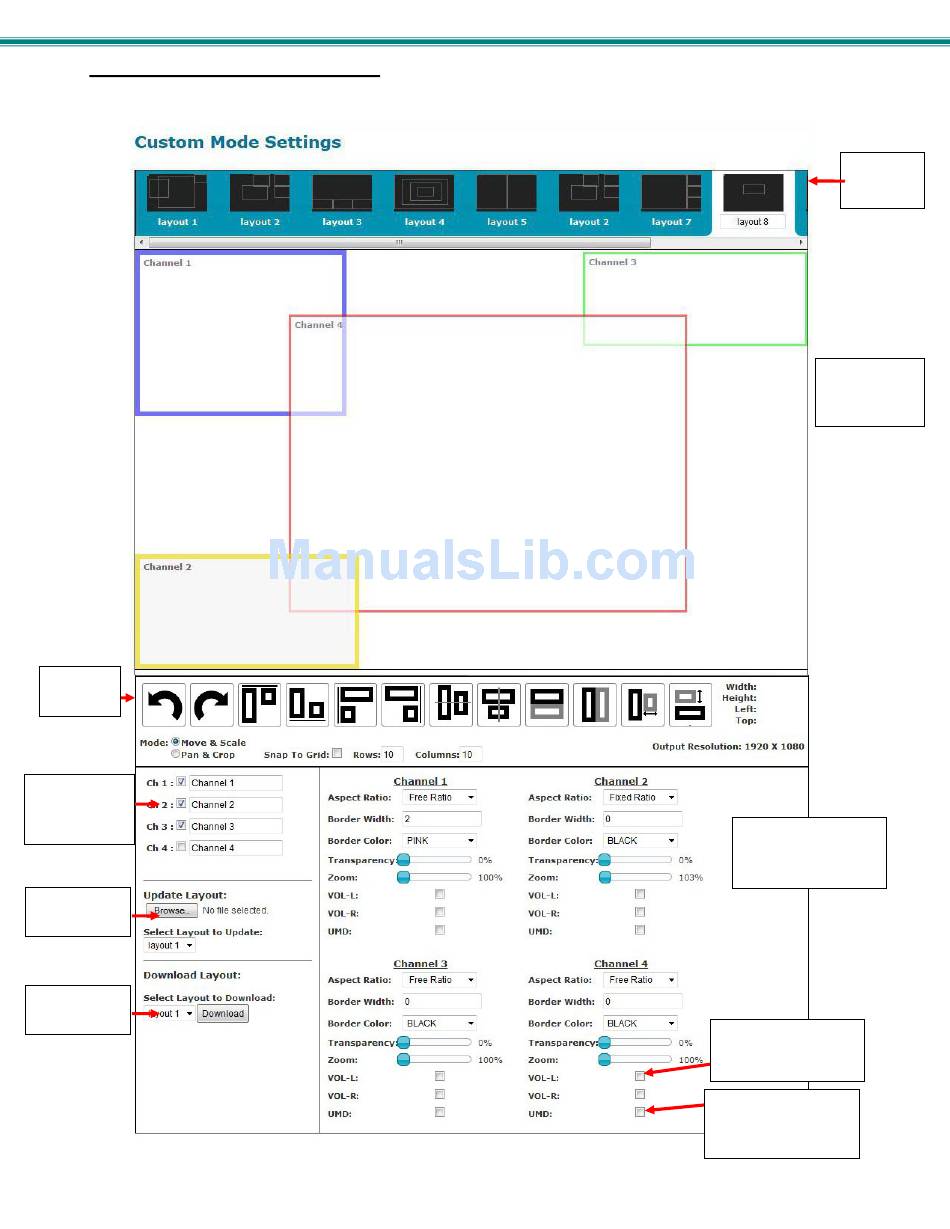

Using the Custom Mode Settings page (Figure 24) you can customize how you want the video from each channel to appear on
the display.
Alignment
Tools
Enable/Disable
and Label each
channel
Restore saved
layout
Download to
save layout

Figure 24- Custom Screen Mode Settings

24
10 Preset
Layouts
View of display
positions by
channel
Configure the size,
position, appearance
of each input channel
Show audio levels for
the channel on the
display
Enter checkmark to
show channel label
on the display
