SPLITMUX Quad Screen Video Splitter

Administration-Mode Settings

Power Up Mode Setting
Power Up Mode
Full Screen Mode Settings
Input Channel
Enable Scan
Scan time
Scan input 1
Scan input 2
Scan input 3
Scan input 4
Quad Screen Mode Settings
Enable Border
Border Color
Border Width
Aspect Ratio

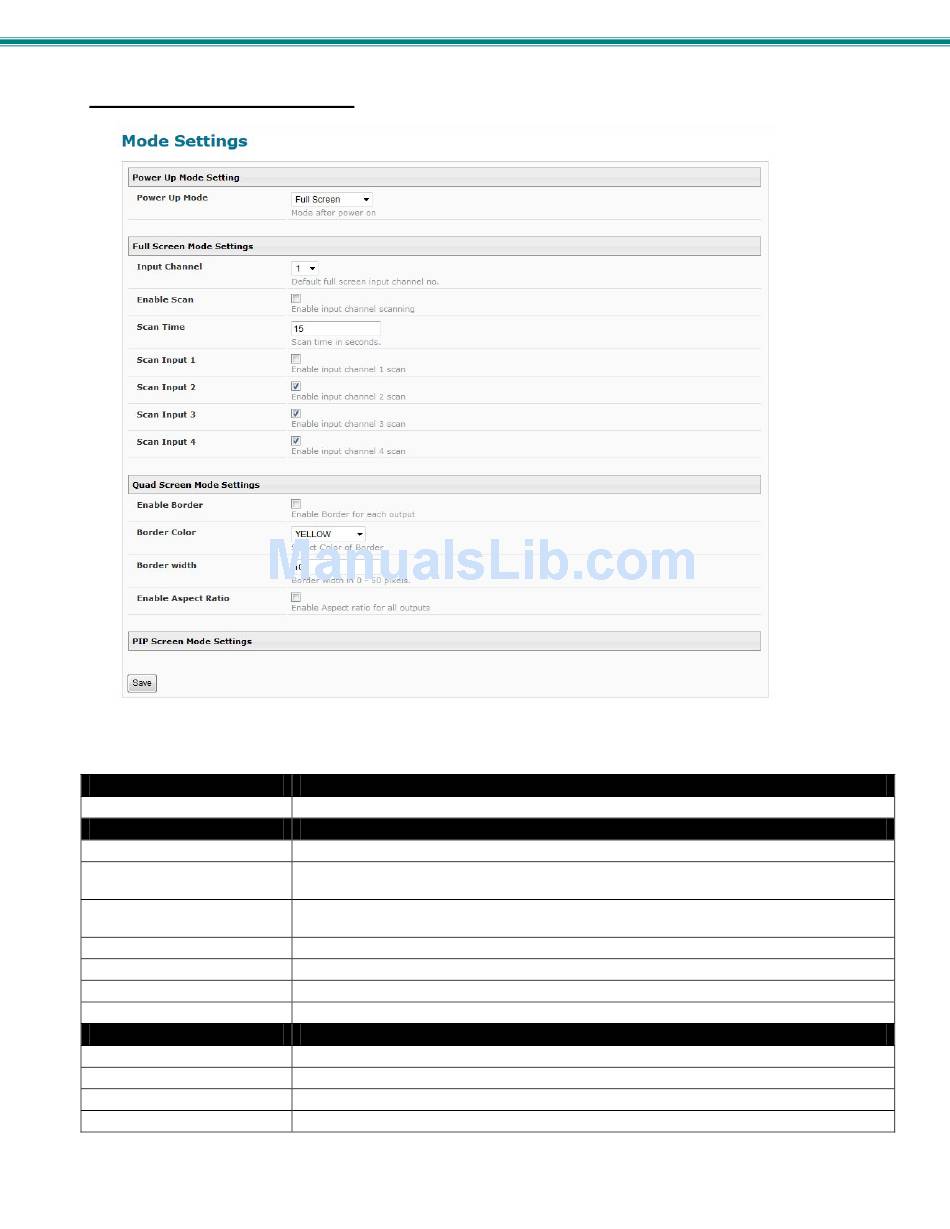

Figure 22- Mode Settings

Description
Choose the mode the SPLITMUX will be in when powered ON
Description
Select the input channel assigned to Full Screen
Enable scanning for the full screen input channel- to automatically switch from one channel to
another
Set the dwell time while scanning- the amount of time (in seconds) each channel will appear
at full screen- range is 0-999
Enable or disable to include input 1 in the scanning sequence
Enable or disable to include input 2 in the scanning sequence
Enable or disable to include input 3 in the scanning sequence
Enable or disable to include input 4 in the scanning sequence
Description
Place a border around each input displayed
Choose the color of the border around each input
Choose the width of the border around each input- from 0-50 pixels
enable to maintain the aspect ratio for each displayed image
22
