SAGEMCOM F@ST 2704R Reference Manual page 69

6.4.1.2 Add

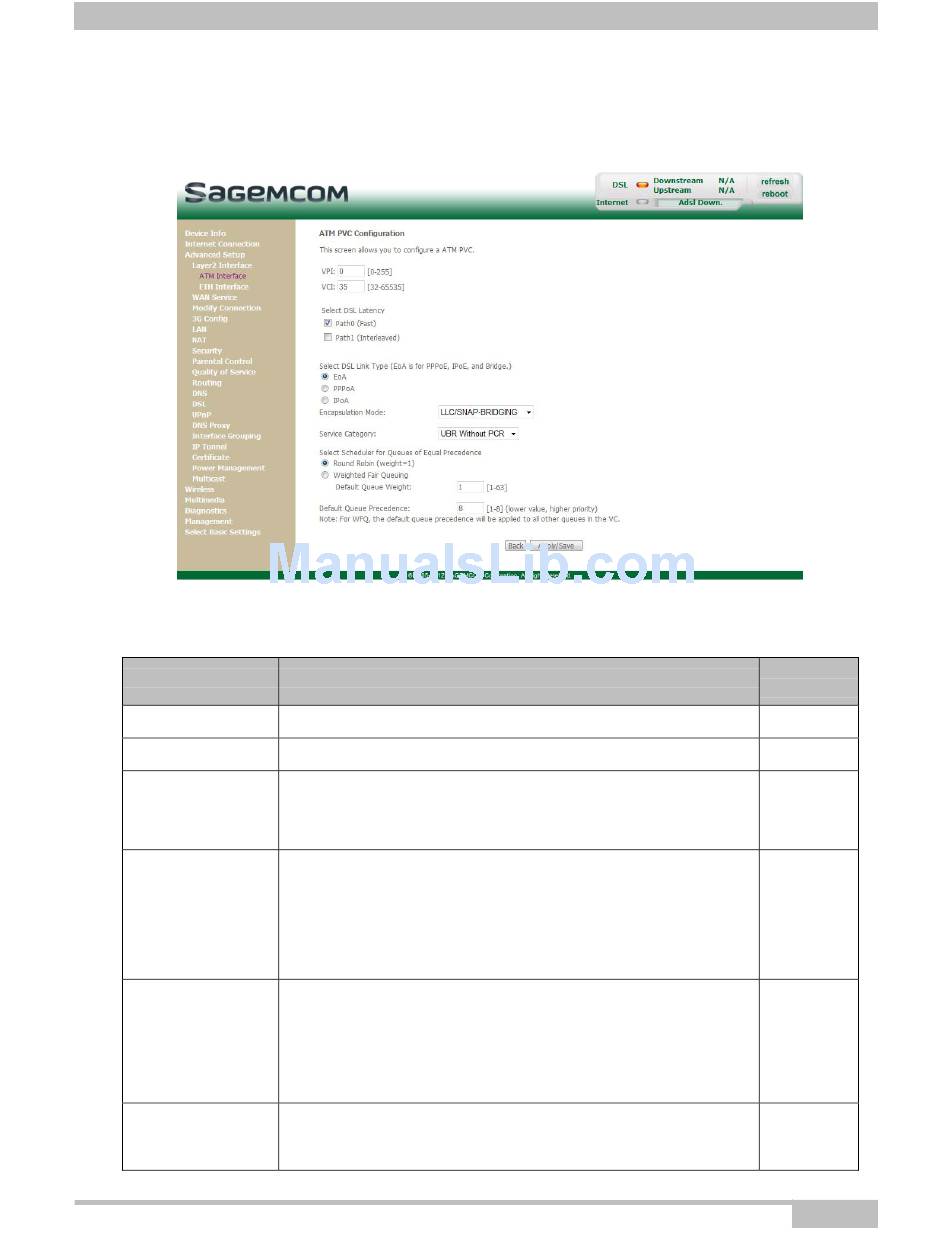

• Click on the Add button to display the following screen:
ATM PVC Configuration
Field
VPI
VCI
Select DSL
Latency
Select DSL Link
Type
Select Connection
Mode
Encapsulation
mode
F@ST 2704R Reference Manual - 253526032-A
a
Enter a VPI value between 0 and 255.
a.
Enter a VPI value between 32 and 65535.
Select the DSL Latency:
• Path0
• Path1
Select the type of network protocol from the scroll down list:
• EoA: Ethernet over ATM
• PPPoA: PPP over ATM
• IPoA: IP over ATM
Note: EoA is for PPPoE and IPoE.
Select the connection mode:
• Default Mode - Single service over one connection
• VLAN MUX Mode - Multiple Vlan service over one connection
For more details, a summary table is presented below for each
type of protocol.
Select the encapsulation mode for the selected DSL link type.
For more details, a summary table is presented below for each
type of protocol.
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
Action
6- Advanced parameters
Default
value
0
32
EoA
LLC/SNAP
-
BRIDGING
Page 6-19
