A- Annex A - Troubleshooting

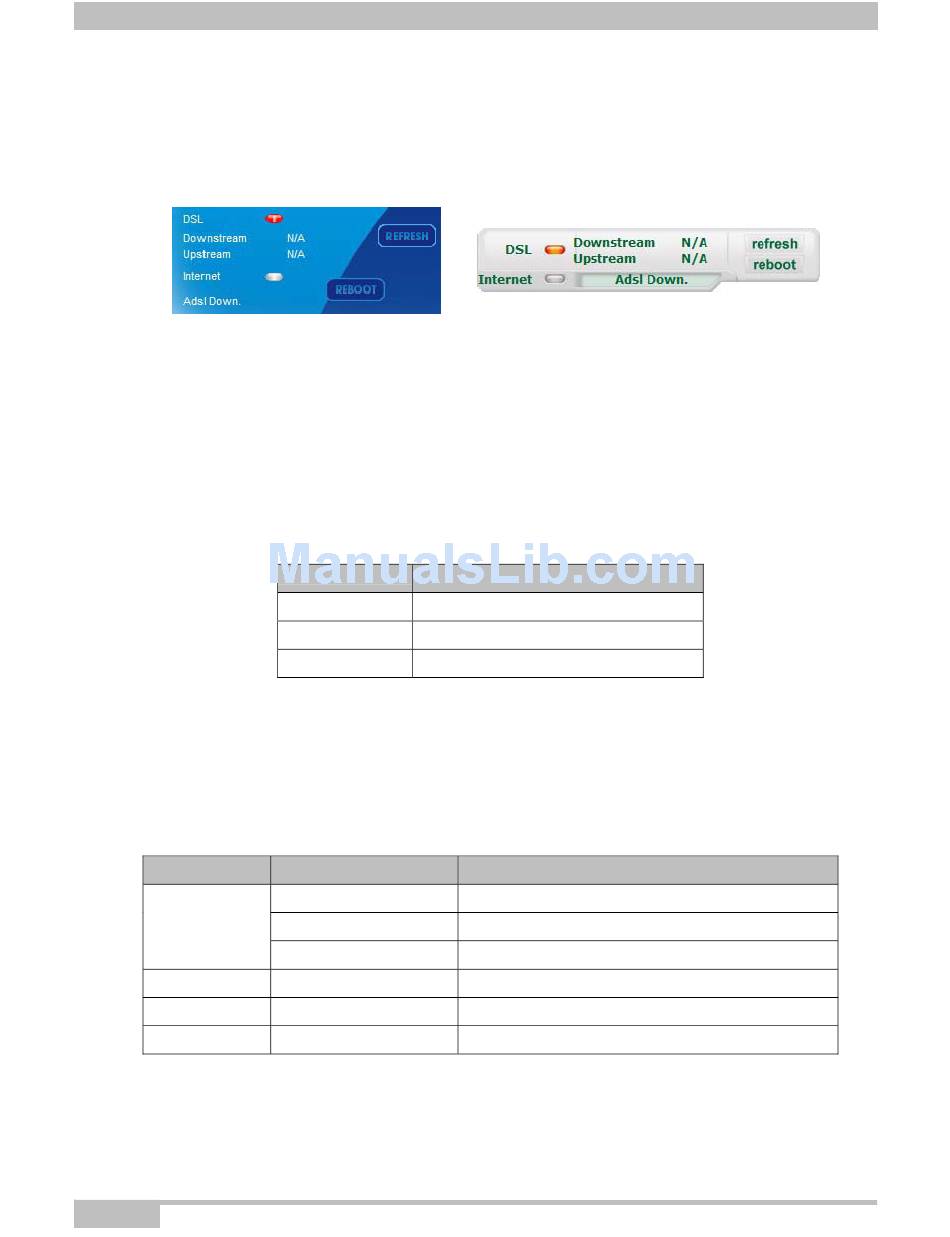

A.3 Supervising your router
You can monitor the router's activity and status using the router's built-in "DSL Router" HTTP controller,
available in the HTTP configuration tool.
The router's activity status is always visible at the left corner or the top right of the HTTP configuration tool.
Basic configuration interface
You can perform the following actions:
• click on Refresh to update the data displayed
• click on Reboot to restart your router
DSL information
The following table presents the possible states of the ADSL field:
The Downstream field displays the nominal downlink bit rate.
The Upstream field displays the nominal uplink bit rate.
Internet information
The following table presents the possible states of the Internet field:
Status
Off
Green
Yellow
Red
Page A-4
Status
Green ADSL line synchronised
Yellow ADSL line synchronising
Red ADSL line not connected
Status
ADSL Down
Not configured
Router rebooting
Connected
Waiting for ISP
Access denied
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
Advanced configuration interface
Meaning
Meaning
ADSL line not connected or not activated
The Internet account must be configured
Router is rebooting
The Internet connection has succeeded
Connecting to the Internet service
Incorrect Internet account
F@ST 2704R Reference Manual - 253526032-A
