2.1.1 Connectors

Marking

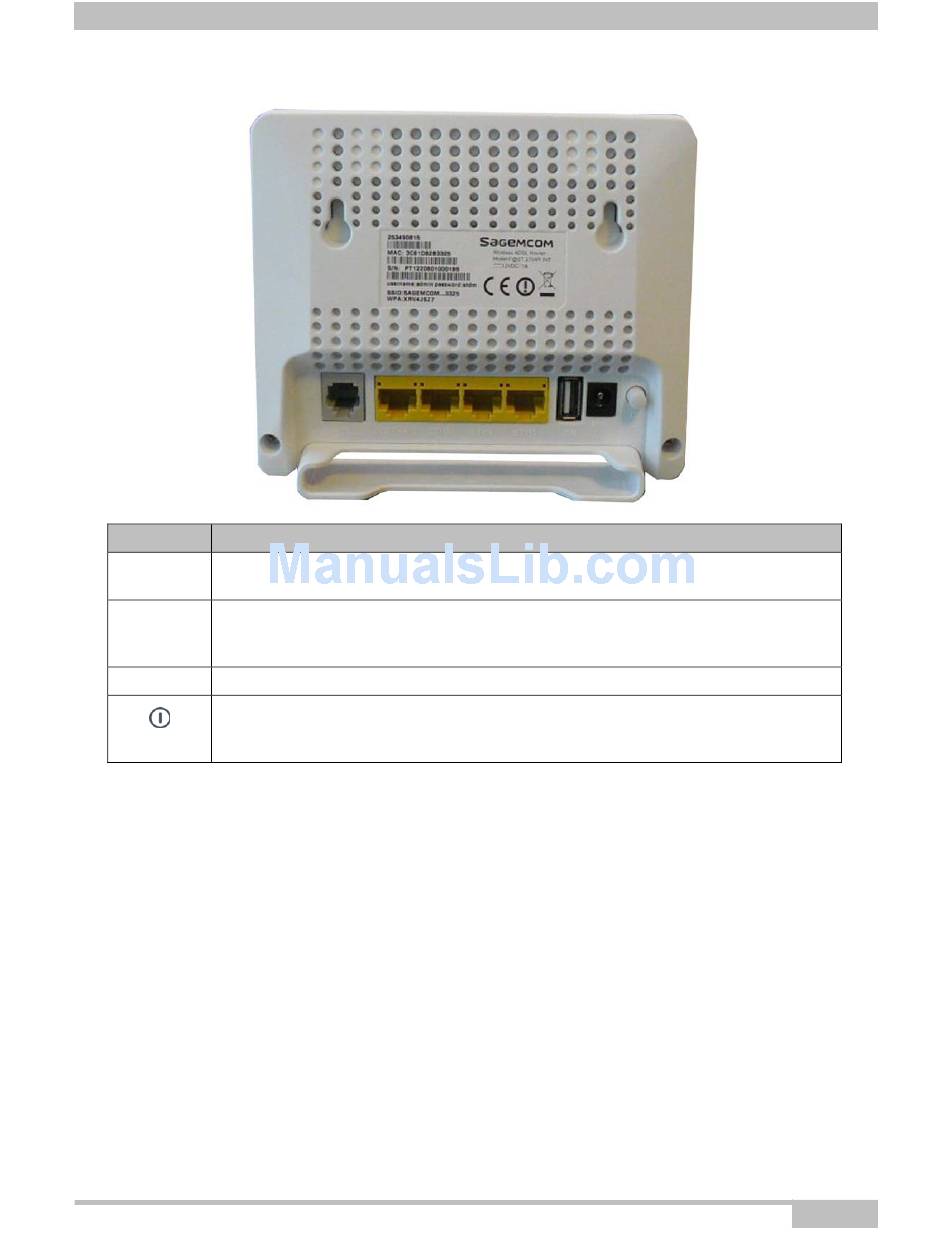

RJ11 connector - 6 pts. This connector is identified by the colour grey.
LINE
It is used for the connection to an ADSL line (WAN interface).
RJ45 connectors - 8 pts (10/100BASE-T Ethernet Interface). These connectors are
LAN x
identified by the colour yellow.
(1 to 4)
They are used to connect to a computer or a television set (via a TV/Video Decoder).
USB USB connector.
Miniature jack fixed connector.
This connector enables the router to be supplied with direct current from a mains
Power
adapter unit.
