6.2.4.4
xDSL
Object:
This menu is used to display all the xDSL statistics of the line.
•
In the Device Info menu, select Statistics then select xDSL.

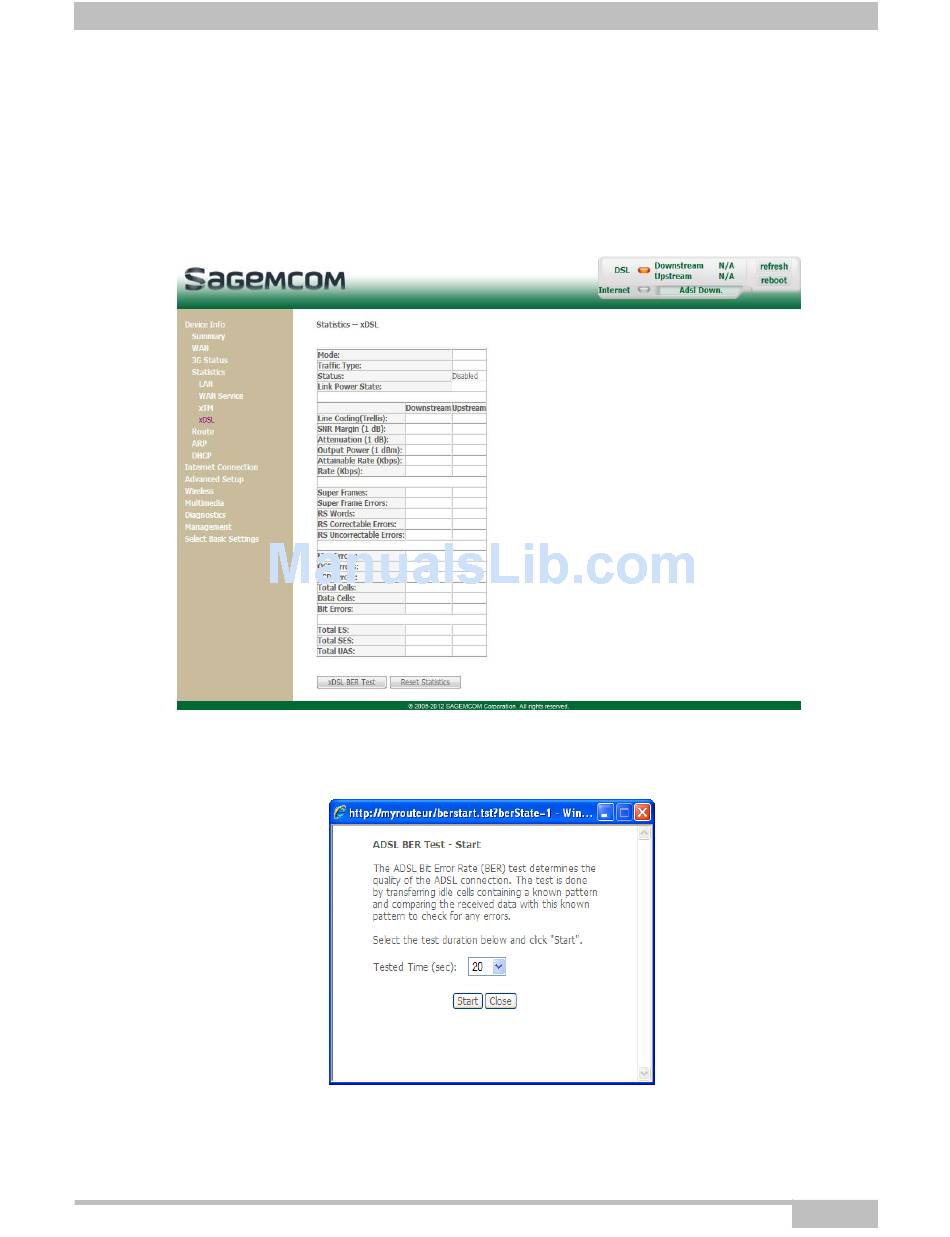

The following screen opens:
•
Click on the Reset Statistics button to reset statistics.
•
Click on the xDSL BER Test button to display the following screen:
•
In the Tested Time (sec) field, select the test time from the scroll down list.
•
Click on the Start button to run the test. The results are displayed once the tests are completed.
•
Click on the Close button to close the window and return to the previous screen.
F@ST 2704R Reference Manual - 253526032-A
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
6- Advanced parameters
Page 6-11
