6.7 Diagnostics

Object: This menu is used to display all the tests performed on the connections made from your router to
your Internet Service Provider (ISP). These tests concern:
• connection to your local network (LAN),
• connection to your "DSL Service Provider",
• connection to your "Internet Service Provider".
Note
A hypertext link (help) enables the user to access context-related help. This help
gives an explanation concerning the state of the connection (PASS in green,
DOWN in orange and FAIL in red) and supplies the appropriate troubleshooting
procedures.
The ADSL line translates the three statuses detailed in the table below.
State
PASS
DOWN
FAIL
If a test fails, proceed as follows:
1. Click on the corresponding Help link to access detailed information and problem-solving procedures.
2. Click on Test to check the problem is solved and resume the connection tests.

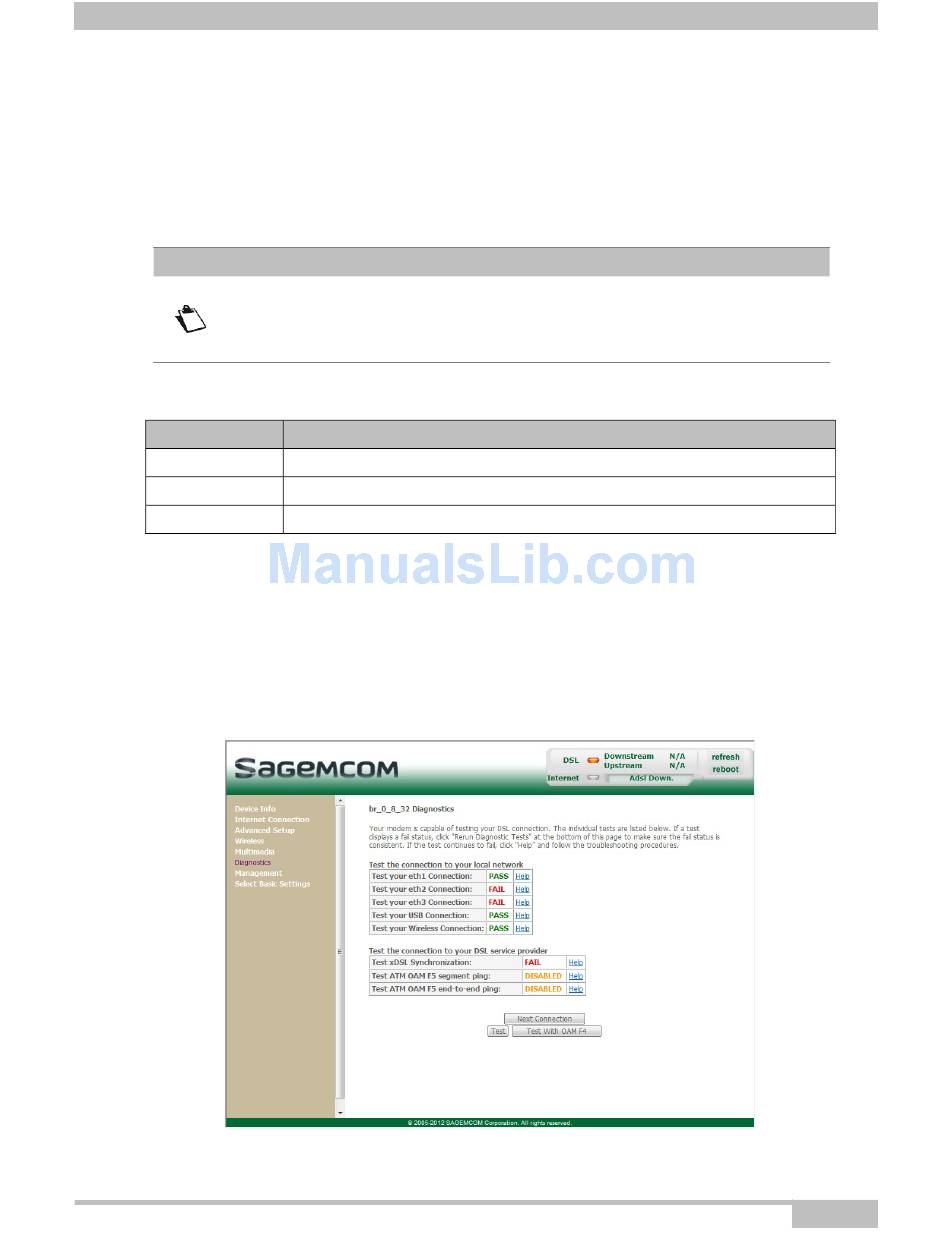

To access the Diagnostic tool:
• Select the Diagnostics menu.
F@ST 2704R Reference Manual - 253526032-A
Indicates that the test was completed successfully.
Indicates that an interface (ETH, Wi-Fi) has not been detected.
Indicates that the test has failed, or that it is impossible to start a command.
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
6- Advanced parameters
Meaning
Page 6-121
