5.3 ADSL connection status

Refer to subsection 6.2.1 - /Summary.

5.4 Display frame

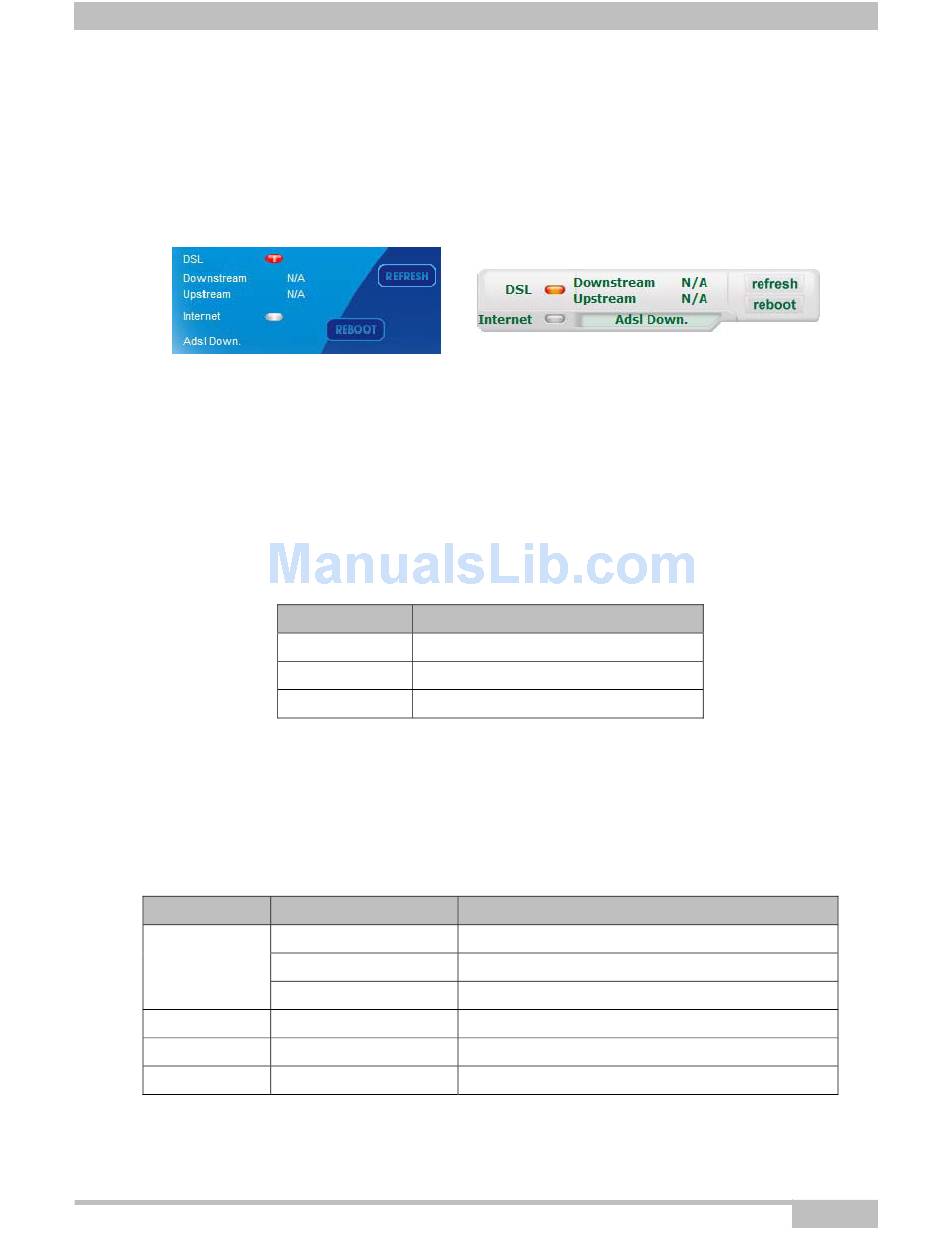

The router's activity status is always visible at the left corner or the top right of the HTTP configuration tool.
Basic configuration interface
You can perform the following actions:
• click on Refresh to update the data displayed
• click on Reboot to restart your router
ADSL information
The following table presents the possible states of the ADSL field:
The Down field displays the nominal downlink bit rate.
The Up field displays the nominal uplink bit rate.
Internet information
The following table presents the possible states of the Internet field:
Status
Off
Green
Yellow
Red
F@ST 2704R Reference Manual - 253526032-A
Status
Green ADSL line synchronised
Yellow ADSL line synchronising
Red ADSL line not connected
Status
ADSL Down
Not configured
Router rebooting
Connected
Waiting for ISP
Access denied
