Connections

6 Connections
6.1

Front Panel Connections

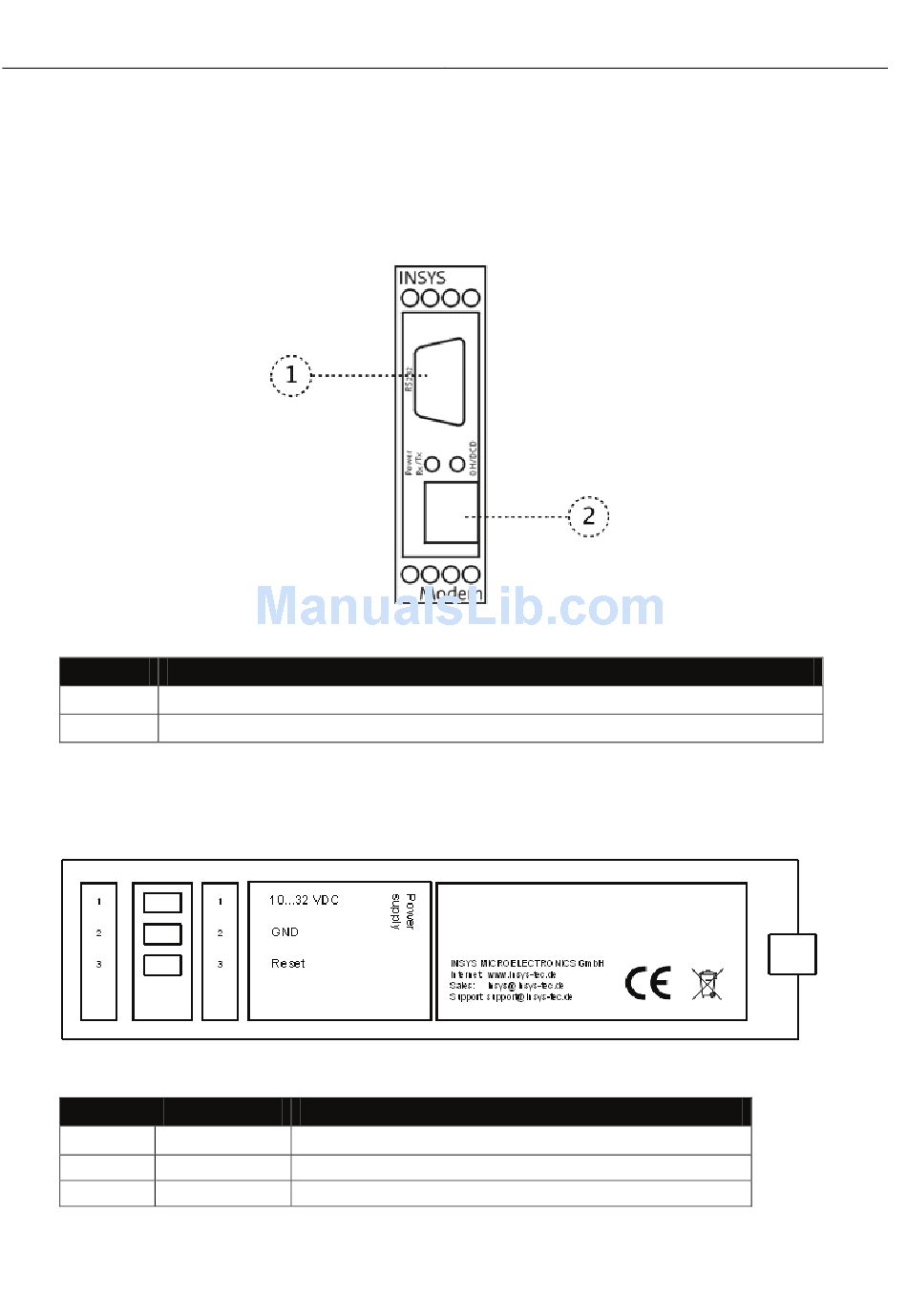

Figure 2: Connections on the front panel of the device
Position Description
1 Serial Interface (RS232 jack)
2 Phone connection (RJ12 line jack)
Table 1: Description of the connections on the front panel of the device
6.2

Terminal Connections on the Top

Figure 2: Connections on the top of the device
Terminal Description
1
10 ... 32 V DC
2 GND
3 Reset
Table 3: Description of the connections on the top of the device
12
Description
Power supply 10 V – 60 V DC
Ground
Reset input
INSYS Modem 56k Small INT 2.0
