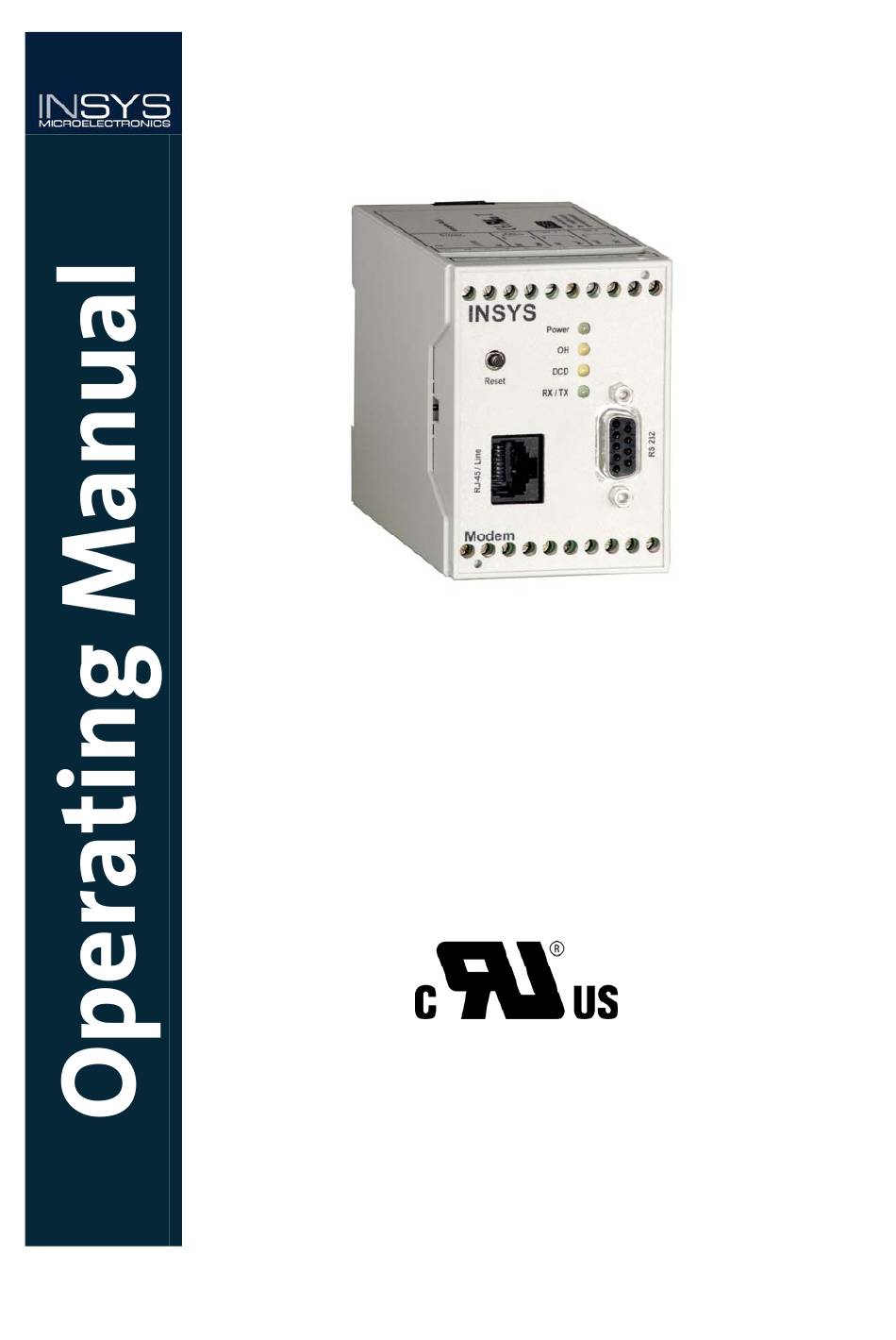

  • Page 1 INSYS Modem INSYS Modem 336 4.1 INSYS Modem 56k 4.1 INSYS Modem 56k UL File E239995 July 06...
  • Page 2 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Publisher:...

  • Page 3: Table Of Contents

    INSYS Modem 336/56k 4.1 (UL) Contents SCOPE OF DELIVERY............7 GENERAL..............7 NOTES REGARDING THE USE OF THE MANUAL ..8 DESCRIPTION ..............9 ................9 RONT PANEL ..................9 ................10 OTTOM ................10 ROFILE ........11 ONFIGURATION OFTWARE .............14 NSTALLATION NSTRUCTIONS FUNCTIONS...............17 ..............17 ONFIGURATION .............19 ERIAL RANSMISSION ..............23...
  • Page 4 Contents INSYS Modem 336/56k 4.1 (UL) 5.10 DTMF....34 EMOTE WITCHING AND EMOTE UERY VIA 5.11 ..............36 CCESS ONTROL 5.12 )..38 RANSMIT ONTROLLER ONNECTION ONTROL 5.13 RIORITY IRCUIT FOR ODEMS WITH HONES ONNECTED IN ERIES OPERATION WITH A PLC...........42 FIRMWARE UPDATE ..........43 ...............43...
  • Page 5 INSYS Modem 336/56k 4.1 (UL) Contents SAFETY INSTRUCTIONS..........90 12.1 ................90 ENERAL 12.2 SMS ..................90 12.3 ................90 LEANING TECHNICAL DATA............91 13.1 ............91 ECHANICAL EATURES 13.2 ...............91 OWER UPPLY 13.3 ..............92 ERIAL INTERFACE 13.4 ............92 OSSIBLE NTERFACE PEEDS 13.5 ..............93 ELEPHONE NTERFACE 13.6...

  • Page 7: Scope Of Delivery

    Before you begin with the initial operation, please check if all accessories are in- cluded in the box. INSYS Modem 336 4.1, INSYS Modem 56k 4.1, or INSYS Modem 56k 4.1 UL 2 phone cords (TAE-N at RJ12 and RJ12 at RJ12), not for version UL.

  • Page 8: Notes Regarding The Use Of The Manual

    Notes Regarding the Use of the Manual INSYS Modem 336/56k 4.1 (UL) Notes Regarding the Use of the Manual This manual uses the symbol for especially important notes. Further notes will be marked accordingly. All factory settings are marked “default”.

  • Page 9: Description

    INSYS Modem 336/56k 4.1 (UL) Description Description Front panel The INSYS Modem 336/56k 4.1 (UL) has four LED’s to indicate the operating state. Name Color LED off LED on Power Green No supply voltage Supply voltage available Yellow Modem is offline...

  • Page 10: Bottom

    For the INSYS Modem 56k 4.1 UL, the following applies: Attention! All devices which are connected to a1, b1, a2 and b2, must comply with the re- quirements of UL 60950-1, Section 6.

  • Page 11: Configuration Software Hscomm

    For a simple set-up, all basic functions of the INSYS modem 336/56k 4.1 (UL) can be entered without knowing the individual commands and their parameters, us- ing the configuration software.
  • Page 12 Handshake setting at the modem (Configure menu Modem): Auto bauding: With the first AT command, the INSYS Modem 336/56k 4.1 (UL) rec- ognizes the baud rate and the format of the incoming data and configures itself accordingly. When the modem doesn’t receive AT commands but user data right away, the last saved settings are kept.
  • Page 13 The signal Data Terminal Ready (DTR) on the serial interfaces indicates that the connected device (control, PC) is switched on, connected and ready for operation. The INSYS Modem 336/56k 4.1 (UL) may react to the device being switched off or the cable being removed.

  • Page 14: Installation Instructions

    INSYS Modem 336/56k 4.1 (UL) Installation Instructions Note: For the installation of the INSYS modem with the configuration soft- ware HSComm, please also read Chapter 4.5. Important Safety Instructions When using the communication device and its accessories, the following safety instructions must be observed at all times to prevent fire, electric shock or per- sonal injury.
  • Page 15 If you use a terminal program or the HSComm program, the installation of a driver is not necessary. If you use another ap- plication, a driver may be necessary. Please find our current drivers at http://www.insys-tec.de/ or install the standard modem 336 under Windows. Communication with the Modem Now, start your communication program on the PC and set it to the used COM interface.
  • Page 16 Description INSYS Modem 336/56k 4.1 (UL) Open the terminal program and enter the command. AT Enter LED RXTX When the message appears on your monitor, the device has leuchtet kurz been successfully installed. Check the communication using the configuration program HSComm Open the installed HSComm.

  • Page 17: Functions

    INSYS Modem 336/56k 4.1 (UL) Functions Functions This chapter describes the functions and settings of the INSYS Modem 336/56k 4.1 (UL). The settings can be selected and changed via AT commands, using any terminal program (Hyperterminal, TeraTerm, etc.) Alternatively, all common settings can also be comfortably performed via the con- figuration software HSComm (see Chapter 4.5 "Configuration software...
  • Page 18 Functions INSYS Modem 336/56k 4.1 (UL) Our example currently shows the settings from user profile 0. User profile 0: STORED PROFILE 0: B3 E1 L1 M1 Q0 T V1 W0 X3 *A1 *L0 *M0 *P0 *R1 *Y0,0 *Y1,0 %B0 %C3 %E2 %S0 \A1 \D0 \N3 \V1 &A0 &C1 &D2 &G0 &K3 &Q5 &R1 &S0 &X0...

  • Page 19: Serial Data Transmission

    Functions INSYS Modem 336/56k 4.1 (UL) 5.1.2 Save Configuration If the modem configuration was adjusted to certain user requirements, these settings can be saved in the user pro- files 0 AT&W0 AT&W or 1. AT&W1 Configuration changes will be lost after a RESET or restart if they were not saved before.

  • Page 20: Bit Direct Mode

    Functions INSYS Modem 336/56k 4.1 (UL) 5.2.2 Data Buffer for Serial Data Transmission The modem has a fast send and receive cache (so-called buffer) to adjust the modem to the operating speed of the application. It is, however, possible to deactivate this data buffering and switch to bit direct mode.
  • Page 21 INSYS Modem 336/56k 4.1 (UL) Functions 5.2.4 Hardware Data Flow Control with RTS/CTS Hardware Data Flow Control with the Modem (CTS). RS232 Cable Application Modem (E.g.: PC or con- CTS Line trol) When the input buffer of the modem exceeds a certain fill state, the modem will set the CTS line to OFF.
  • Page 22 Functions INSYS Modem 336/56k 4.1 (UL) 5.2.6 Software data flow control XON and XOFF Send data Application Modem (E.g.: PC or XON or XOFF character control) When the input buffer of the modem exceeds a certain fill state, the modem will insert an XOFF character into the data stream to the ap- plication.

  • Page 23: Error Correction

    INSYS Modem 336/56k 4.1 (UL) Functions 5.2.8 Dial-up delay The standard TBR21 applies to all public phone networks in EU countries (Belgium, Denmark, German, Finland, France, Greece, Great Britain, Ireland, Italy, Luxembourg, Netherlands, Austria, Portugal, Sweden, Spain), as well as in Switzerland, Liechtenstein, Norway and Iceland.

  • Page 24: Data Compression

    Functions INSYS Modem 336/56k 4.1 (UL) 5.3.1 V42 Error correction The V.42 error correction includes the protocols LAPM (Link AT\N<n> Access Procedure for Modem) and MNP 4. LAPM is the pre- ferred error correction. MNP 4 is supported for compatibility reasons with other MNP modems.
  • Page 25 INSYS Modem 336/56k 4.1 (UL) Functions 5.4.1 V.42bis data compression Switch on V.42bis data compression. AT%C3 Switch off V.42bis data compression AT%C0 V.42bis data compression may only be performed for a V.42 AT%C2 connection (LAP-M or MNP 4). First of all, V.42bis generates a...

  • Page 26: Selective Call Answer

    Functions INSYS Modem 336/56k 4.1 (UL) Selective Call Answer Not for INSYS Modem LL. If the selective call acceptance is activated, the modem will only accept calls from certain callers. The identifi- cation of permitted callers takes places via the caller ID transmission (CLIP).

  • Page 27: Switch Output

    Switch Output Not for INSYS Modem LL. The INSYS Modem 336/56k 4.1 (UL) has two switch out- puts OUT1 and OUT2 at the bottom of the cover, which are designed as potential-free relay switches. They can AT*Yx,y be controlled individually via software commands.

  • Page 28: Alarm Input

    The INSYS Modem has two digital inputs which are activated by connect- ing them to ground (at least 4 seconds). When an alarm occurs, the INSYS modem can send a message either via a data connection, a fax or an SMS.
  • Page 29 INSYS Modem 336/56k 4.1 (UL) Functions The status of the alarm inputs can be queried by AT commands or via DTMF tones. Response for inactive alarm input Response for active alarm input Configuration with HSComm: July 06...

  • Page 30: Send Messages

    Functions INSYS Modem 336/56k 4.1 (UL) Send Messages Not for INSYS Modem LL. Note: The sending time of an SMS from the sender to a recipient de- pends on the pertinent provider of the service number. De- pending on the degree of utilization and the time of day, an SMS may be on the way for an extended period.
  • Page 31 INSYS Modem 336/56k 4.1 (UL) Functions SMS to Mobile AT*M6 or Fixed Network Enter the service number of the network provider to send AT&Z0=<phonenumber> SMS, or the phone number for fax and data connections AT*V1=<text> Definition of the variable alarm texts and phone number for the SMS dispatch.

  • Page 32: Remote Configuration (Remote Control)

    Functions INSYS Modem 336/56k 4.1 (UL) Remote Configuration (Remote Control) 5.9.1 Mode of operation Phone line Modem 1 Modem 2 (local modem) (remote modem) To switch into the remote configuration mode, a data connec- tion must be established between the modems. A particular connection type is not mandatory.
  • Page 33 INSYS Modem 336/56k 4.1 (UL) Functions 5.9.4 Start of the remote configuration at the local modem Dial the remote modem, e.g. an INSYS modem ATD <Phonenumber> The modem will establish a successful connection Connect… Switch to the mode “Remote Configuration”...

  • Page 34: Remote Switching And Remote Query Via Dtmf

    Functions INSYS Modem 336/56k 4.1 (UL) 5.10 Remote Switching and Remote Query via DTMF Not for INSYS Modem LL. In phone networks, DTMF is used to dial a remote terminal. To enable switching centers to distinguish between voice and DTMF digits, these digits are created from two unique frequen- cies, which cannot be created by people in this form.
  • Page 35 INSYS Modem 336/56k 4.1 (UL) Functions 5.10.2 Operation After the message ”OK” (short low tone – short pause – short high tone), the modem expects the input of the PIN. If the modem recognizes the dial tone of a modem that wants to establish a connection, it will immediately switch to data mode.

  • Page 36: Access Control

    Functions INSYS Modem 336/56k 4.1 (UL) 5.11 Access Control Not for INSYS Modem LL. AT*C 5.11.1 Password To protect you from unauthorized access via the phone line, OLD PASSWORD the modem may be protected by a password. This password is used to establish a data connection, as well as for security...
  • Page 37 INSYS Modem 336/56k 4.1 (UL) Functions The deactivation takes place by deleting the call back phone number. 5.11.3.2 Operation Establishing a connection to the remote modem by ATD <phone number> entering the AT command. The connection to the modem is established.

  • Page 38: Data Transmit Controller (Idle Connection Control)

    Functions INSYS Modem 336/56k 4.1 (UL) 5.12 Data Transmit Controller (Idle Connection Control) Not for INSYS Modem LL. The Data Transmit Control (DTC) is a function integrated in the firmware which monitors the data transmission in online mode. This function prevents the modem to stay online for an unlimited amount of time, although no data is being transmitted anymore.

  • Page 39: Priority Circuit For Modems With Phones Connected In

    INSYS Modem 336/56k 4.1 (UL) Functions 5.13 Priority Circuit for Modems with Phones Connected in Se- ries Not for INSYS Modem LL. gives a phone connected in INSYS Modem 336/56k 4.1 (UL) series priority, to make sure it interferes as little as possible with the usage of the phone connection.
  • Page 40 Functions INSYS Modem 336/56k 4.1 (UL) 5.13.2 Going off-hook on account of a telephone con- nected in series If a telephone connected in series goes off-hook during an existing modem connection, the modem will immediately terminate the connection. The telephone is connected to the line and receives a dialing tone.
  • Page 41 INSYS Modem 336/56k 4.1 (UL) Functions 5.13.3 Remote Terminal Connection Abort When the remote terminal aborts a connection, the modem will immediately hang up. In the registry S86, the value is set to 25. ATS86=25 Changing the loop voltage to detect the function – Remote AT-TTE=U1, U2, U3 Terminal Connection Abort (U3) –...

  • Page 42: Operation With A Plc

    INSYS Modem 336/56k 4.1 (UL) Operation with a PLC Not for INSYS Modem LL. The INSYS Modem 336/56k 4.1 (UL) has been tested for the most common PLC systems on the market. The documentation (Application Notes) of the settings required for the respective PLC can be queried at INSYS MICROELECTRONICS (E-mail: insys@insys-tec.de).

  • Page 43: Firmware Update

    INSYS Modem 336/56k 4.1 (UL) Firmware Update Firmware Update Flashcom.exe This function enables the firmware update of the INSYS Mo- dem 336/56k 4.1 (UL) without switching the EEPROM. The new version is available from your service partner. ATI4 Query of the used firmware Unpack the file into any directory and start Flashcom.exe.

  • Page 44: Terminal Program

    Firmware Update INSYS Modem 336/56k 4.1 (UL) Select the according INSYS Modem and start the update. Close the window after the update is completed. Terminal Program As an alternative to the procedure described in the previous chapter, the firmware update may also be performed via a terminal program.
  • Page 45 INSYS Modem 336/56k 4.1 (UL) Firmware Update 7.2.2 Activation and Process Start of the flash update AT** Download initiated… The modem sends a response Transfer file with the help of a terminal pro- gram. The update is performed in two steps.

  • Page 46: At Command Set

    INSYS Modem 336/56k 4.1 (UL) AT Command Set Most of the INSYS communication devices are controlled internally via AT com- mands. A terminal program is integrated in the HSComm. The AT commands can be directly entered at the menu item “Terminal”.

  • Page 47: Overview At Commands

    INSYS Modem 336/56k 4.1 (UL) AT Command Set Overview AT Commands Command Description Start of the flash load function AT** Answer mode The modem is switched into response mode. This is only effective in Germany, if the con- nected phone goes off-hook or if a call comes in.
  • Page 48 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Send “break” to the other modem AT\B<n> For connections that were not error corrected the modem sends a break signal to the other modem. The length of the signal is: the specified parameter times 1/10 of a second.
  • Page 49 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description PIN for remote switching via DTMF AT*C1 This PIN secured the functions when the alarm inputs are remotely switched via SMS and for remote query of the alarm inputs. Requires the old PIN (default: 1234). Wrong input leads to ERROR.
  • Page 50 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Dummy command for GSM compatibility AT+CPIN? AT+CPIN? responds with "+CPIN: READY". Note: This command only serves for the purpose of compatibility with applications for GSM devices. Dummy command for GSM compatibility AT+CREG? AT+CREG? responds with "+CREG: 0,1".
  • Page 51 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Dial ATD<n> The modem goes off-hook and dials according to the dialing string transmitted via the ATD command. After it dialed, the modem attempts to establish a connection. If the ATD command was performed without a dialing string, the modem goes off-hook and at- tempts to connect to the other modem (without dialing).
  • Page 52 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description ‚ Dial tone delay: The modem performs a dial tone delay before it executes ATD<n> the next character of the parameter string. The delay length is defined in (Continuation) the S8 registry.
  • Page 53 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description DTR (CT108/2) behavior AT&D<n> DTR (CT108/2) behavior - Monitoring on/off transitions of the RS232 DTR line of the PC. DTR is ignored. Allows the operation with PCs which do not run DTR.
  • Page 54 If no DTMF tone is entered for more than 25 seconds, the modem will automatically dis- connect. If the INSYS modem recognizes the call tone of a modem that wants to establish a con- nection, it will immediately switch to data mode.
  • Page 55 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Set country code AT+GCI=<n> The command AT+GCI allows the customization of the modem for different countries. As default, the modem is set to Europe (CTR21) with AT+GCI=FD. Currently, the modem is only authorized for this country profile.
  • Page 56 Activates the controlled half duplex operation on the serial interface for AT&K8 RS485. In this mode, the CTS signal is deactivated (high), while the INSYS modem sends data at the serial interface. Thus, the CTS signal can be used as driver release signal for a RS485 driver. The polarity can be set with AT&R.
  • Page 57 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Break control AT\K The modem reacts to a break (receive path OFF for a certain amount of time), which it receives from another modem or from the PC, or from the command AT\B according to the parameters.
  • Page 58 (or the speed defined with AT+MS), irrespective of the data rate at the serial interface. This means that the INSYS Modem 336 will, for example, always attempt to establish a 33600 baud connection, even if the serial interface is only set to 9600 baud.
  • Page 59 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Show modulation type AT+MR=<n> The command AT+MR=<n> enables the display of the modulation type after the message CONNECT Switches the display function OFF (default). AT+MR=0 Switches the display function ON. The displayed value applies to the AT+MR=1 sent data.
  • Page 60 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description V.90 56000, 54667 ,53333 ,52000, 50667, 49333, AT+MS=<Modu 48000, 46667, 48000, 46667, 45333, 42667, lation>, 41333, 40000, 38667, 37333, 36000, 34667, [Automode], 33333, 32000, 30667, 29333, 28000 [Send Min- baud, Send V.92...
  • Page 61 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Remote terminal selection AT*M<n> Defines the protocol that is used to send the alarm string to the network provider. The remote terminal is a normal fixed network modem (default) AT*M0...
  • Page 62 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Permitted numbers for selective call acceptance AT*N<n>=<nr > Definition of 8 authorized phone numbers, for which modem access is permitted. Only if the transmitted phone number matches a phone number that was entered in the list will the modem report RING for an incoming call or will accept the call according to the set- tings of ATS0 (the line RI is activated with each call, irrespective of that fact).
  • Page 63 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Password query AT*P<n> Switches the password query off after the connection has been estab- AT*P0 lished. (default) Switches the password query on after the connection has been estab- AT*P1 lished.
  • Page 64 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Quiet Call AT\Q<n> Quiet Call will switch of the phone connected in series at the first ring. In connection with the selective call answer (AT&N<n>), calls from a previously defined phone number can take place without a ring of the phone connected in series.
  • Page 65 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Ability to switch between DCD and DSR lines AT%S<n> The DSR signal is on the DSR line AT%S0 The DCD signal is on the DCD line (default) The DSR signal is on the DCD line...
  • Page 66 Priority Circuit for Modems with Phones Connected in Series AT-STE=<n> The INSYS Modem 336/56k 4.1 (UL) gives a phone connected in series priority, to make sure it interferes as little as possible with the usage of the phone connection. (see Chap- ter 5.10)
  • Page 67 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Parameter configuration for priority circuit AT-TTE=U1, U2, U3 The command AT-TTE=U1, U2, U3 will set the change of the loop voltage. The settings are required to detect AT-STE=<n>. (see Chap. 5.13)
  • Page 68 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Definition of the common alarm texts (collective message) AT*V for simple alarm: Definition of the alarm text (maximum of 160 characters) for pulse alarm: Definition of the common part of the alarm message (maximum of 160 characters –...
  • Page 69 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Show the configurations AT&V<n> The active configuration of the modem, the saved user defaults and the AT&V0 saved phone numbers 0 to 3 (the parameter 0 may be omitted) are dis- played.
  • Page 70 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Set CLIP AT+VCID=<n> With this function, the phone number of the caller can be displayed during an incoming call. (Only for phone lines or systems that support CLIP. If you want to use the CLIP function, please ask your network provider, if your connection supports this function.
  • Page 71 INSYS Modem 336/56k 4.1 (UL) AT Command Set Command Description Extended result messages, dial tone detection ATX<n> The command determines which group of messages the modem sends to the PC. This is important for PBXs, as often a leading 0 or 9 must be dialed before a dialing tone is heard on the line.
  • Page 72 AT Command Set INSYS Modem 336/56k 4.1 (UL) Command Description Software reset ATZ<n> The command causes the modem to perform a software reset. The modem will load the default saved by the user (according to the parameter). If no parameter is specified, the user default 0 is loaded.

  • Page 73: Overview Fax And Voice Commands

    INSYS Modem 336/56k 4.1 (UL) AT Command Set Overview Fax and Voice Commands More detailed information regarding the Fax Class 2 commands and a document regarding voice commands can be obtained from your supplier. AT Messages List of message numbers and messages texts depending on the command ATX.
  • Page 74 AT Command Set INSYS Modem 336/56k 4.1 (UL) Message Num- Message text in long form ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Short form CARRIER 4800 CARRIER 7200 CARRIER 9600 CARRIER 12000 CARRIER 14400 CARRIER 16800 CARRIER 19200 CARRIER 21600 CARRIER 24000...
  • Page 75 INSYS Modem 336/56k 4.1 (UL) AT Command Set Message Num- Message text in long form ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Short form CONNECT 36000 CONNECT 38000 CONNECT 40000 CONNECT 42000 CONNECT 44000 CONNECT 46000 CONNECT 48000 CONNECT 50000 CONNECT 52000...

  • Page 76: S Registry

    S Registry INSYS Modem 336/56k 4.1 (UL) S Registry S registries may be read and written using the ATS<n> command. (See Chapter 8 “AT Command Set”, command ATS<n>) Certain S registries may only be read; into others only a particular range of values may be entered.

  • Page 77: Registry

    INSYS Modem 336/56k 4.1 (UL) S Registry Register Function Units Range Default Time until hang-up for inactivity 10 s 0-255 S31* General settings S36* Resetting the error protocols Time until forced hang-up 0-255 S39* Flow control S40* General settings S41*...
  • Page 78 S Registry INSYS Modem 336/56k 4.1 (UL) Linefeed character Linefeed character Backspace character Backspace character Waiting period dial tone Maximum waiting time for the dialing tone. After the modem went off-hook it waits 7 seconds for the dialing tone (fixed for approval purposes). If it detects a dialing tone during this waiting period it will start dialing.
  • Page 79 INSYS Modem 336/56k 4.1 (UL) S Registry S13* Number of dialing attempts to send the message Meaning Bit 0 – 3 Number of dialing attempts Range of values: 1...12 Default value: 3 S13 determines the number of attempts to send the message.
  • Page 80 S Registry INSYS Modem 336/56k 4.1 (UL) S21* Settings for V24 Meaning Bit 0.1 Reserved Bit 2 CTS behavior CT106 (CTS) behavior: 0: see AT\K0 1: see AT&R1 Bit 3-4 DTR behavior CT108 (DTR) behavior: 0: see AT&D0 1: see AT&D1 2: see AT&D2...
  • Page 81 INSYS Modem 336/56k 4.1 (UL) S Registry S24* Time period until switching into sleep mode The time after which the modem switches to energy saving mode (sleep) during inactivity is determined (in seconds) in S24. The energy saving mode will be quit as soon as characters are sent to the modem, or when a call comes in.

  • Page 82: Description S Registry

    S Registry INSYS Modem 336/56k 4.1 (UL) S31* General settings Meaning Bit 0 Reserved Bit 1 Description 0: 3-line message (\V0) 1: Expanded 1-line message (\V1) Connect message Bit 2-3 Error correction Messages: 0: Only PC baud rate Messages 1: PC and phone baud rate...
  • Page 83 INSYS Modem 336/56k 4.1 (UL) S Registry S39* Flow control Selection of the data flow control between the PC and the modem S39=0 No data flow control (AT&K0) S39=3 RTS/ CTS data flow control (AT&K3) S39=4 XON/ XOFF data flow control (AT&K4) S39=5 Transparent XON data flow control (AT&K5)
  • Page 84 S Registry INSYS Modem 336/56k 4.1 (UL) S46* V.42bis Data Compression S46=136 No data compression S46=138 V.42bis data compression on S48* V.42bis Connection setup protocol S48=0 Only LAPM connection possible S48=7 LAPM or MNP 4 connection S48=128 Connection protocol as laid down in S36 Error event code When a connection fails (NO CARRIER), an event code is written into this registry.
  • Page 85 INSYS Modem 336/56k 4.1 (UL) S Registry S91* Transmit Level The value for the transmit level of the modem is stored in the S91 registry. The value can be set between 0 and 15. The connection can in some cases be improved by decreasing the transmit level.

  • Page 86: Sending Of Sms As Fax Or E-Mail

    Sending of SMS as Fax or E-mail INSYS Modem 336/56k 4.1 (UL) Sending of SMS as Fax or E-mail Chapter 11 shows an overview of network providers for German-speaking coun- tries (Germany, Austria, and Switzerland). All necessary information is available from the customer service center of the provider.

  • Page 87: Sms As E-Mail

    INSYS Modem 336/56k 4.1 (UL) Sending of SMS as Fax or E-mail 10.2 SMS as E-Mail July 06...

  • Page 88: Faq

    INSYS Modem 336/56k 4.1 (UL) In the following some questions are described, which – from experience – may oc- cur during the installation. Problem: Possible cause: Remedy The modem does not accept Automatic call acceptance is deac- Enter the following commands in calls.
  • Page 89 INSYS Modem 336/56k 4.1 (UL) Problem: Possible cause: Remedy It is not possible to establish a The modem dials with the pulse You can determine if your phone phone connection. dialing method instead of the system dials with pulses or tones:...

  • Page 90: Safety Instructions

    The INSYS Modem 336/56k 4.1 (UL) may not be used in wet envi- ronments, damp rooms or close to water. The device should not be used during a thunderstorm, as this could result in electrical shock.

  • Page 91: Technical Data

    All specified technical data was measured with a nominal input voltage, full load, and an ambient temperature of 77 °F. The threshold value tolerances are subject to the typical fluctuations. To operate the INSYS modem, a suitable device protection must be used. Power supply: 10..60 V DC Power input: approx.

  • Page 92: Serial Interface

    Technical Data INSYS Modem 336/56k 4.1 (UL) 13.3 Serial interface Layout of the 9-pin D-SUB jack Description of the signals on the 9-pin D-SUB connector on DCE side: CCITT 9-pin D-Sub AT com- E/A DCE Description Function DCE Pin No.

  • Page 93: Telephone Interface

    For the INSYS Modem 56k 4.1 UL, the following applies: Attention! The used phone cords must have the type AWG 26. De-...

  • Page 94: Standards

    Technical Data INSYS Modem 336/56k 4.1 (UL) 13.6 Standards 13.6.1 ITU Standards (CCITT) ITU Standards (CCITT) Meaning V.21 Transmission with 300 bps (duplex) V.22 Transmission with 1,200 bps (duplex) V.22bis Transmission with 2,400 bps (duplex) V.23 Send with 75 bps and receive with 1,200 bps and vice versa V.23 half-duplex...

  • Page 95: Reset

    The INSYS Modem336/56k 4.1 (UL) bears the CE symbol of conformity. This sym- bol indicates that on account of its design and implementation, the INSYS Mo- dems 336 4.1 or the INSYS Modem 56k 4. are in compliance with the currently valid versions of the following EC directives:...

  • Page 96: Country Codes

    Country Codes INSYS Modem 336/56k 4.1 (UL) Country Codes Adjust the modem to local requirements using the command AT+CGI=<countrycode> All other settings should be carried out after the country code has been selected, because some factory settings depend on the country.
  • Page 97 INSYS Modem 336/56k 4.1 (UL) Country Codes INSYS modem 336/56k 4.1 (UL) Country Standard coun- Extended tries country groups Finland* FD/3C France* FD/3D Gabon Ghana Greece* FD/46 Greenland Great Britain* FD/B4 Guatemala Honduras Hong Kong India Indonesia Ireland* FD/57 Iceland*...
  • Page 98 Country Codes INSYS Modem 336/56k 4.1 (UL) INSYS modem 336/56k 4.1 (UL) Country Standard coun- Extended tries country groups Liechtenstein* Lithuania Luxembourg* FD/69 Madagascar Malawi Malaysia Malta Mauritania Mauritius Macedonia Mexico Monaco Moldavia Montenegro New Zealand Nicaragua Netherlands* FD/7B Niger...
  • Page 99 INSYS Modem 336/56k 4.1 (UL) Country Codes INSYS modem 336/56k 4.1 (UL) Country Standard coun- Extended tries country groups Saudi Arabia Sweden* FD/A5 Switzerland FD/A6* Senegal Serbia Singapore Zimbabwe Slovak Republic Slovenia Spain* FD/A0 Sri Lanka South Africa Taiwan Tanzania...
